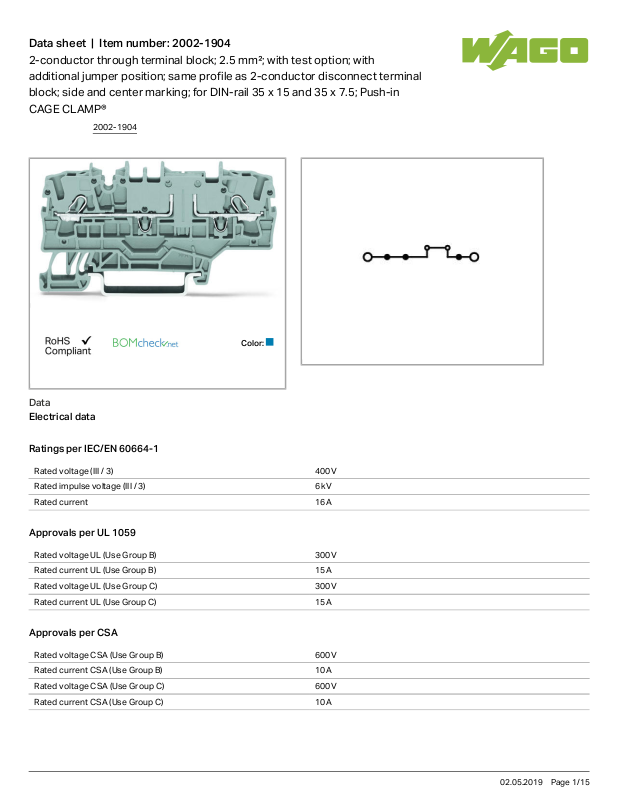

Wago 2002-1904 Data Sheet

Data sheet | Item number:2002-1904

2-conductor through terminal block; 2.5 mm²; with test option; with
additional jumper position; same profile as 2-conductor disconnect terminal
block; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in
CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 16 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 15 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 10 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 10 A

2002-1904

02.05.2019Page /1 15

Data sheet | Item number:2002-1904

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 72.9mm/ 2.87inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Fire load 0.176 MJ

Weight 8.411g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4050821088936

Customs Tariff No. 85369010000

2002-1904

02.05.2019Page /2 15

Data sheet | Item number:2002-1904

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

KIWA Netherlands B.V.

EN 60079 KIWA

17ATEX0030
U

IECEx

KIWA Netherlands B.V.

EN 60079 IECEx KIWA

17.0014U

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536069

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7730

UR

Underwriters Laboratories Inc.

UL 1059 E45172

2002-1904

02.05.2019Page /3 15

Data sheet | Item number:2002-1904

Underwriters Laboratories Inc.

UR

Underwriters Laboratories Inc.

UL 1059 E45172
