Wago 2002-1874/401-000 Data Sheet

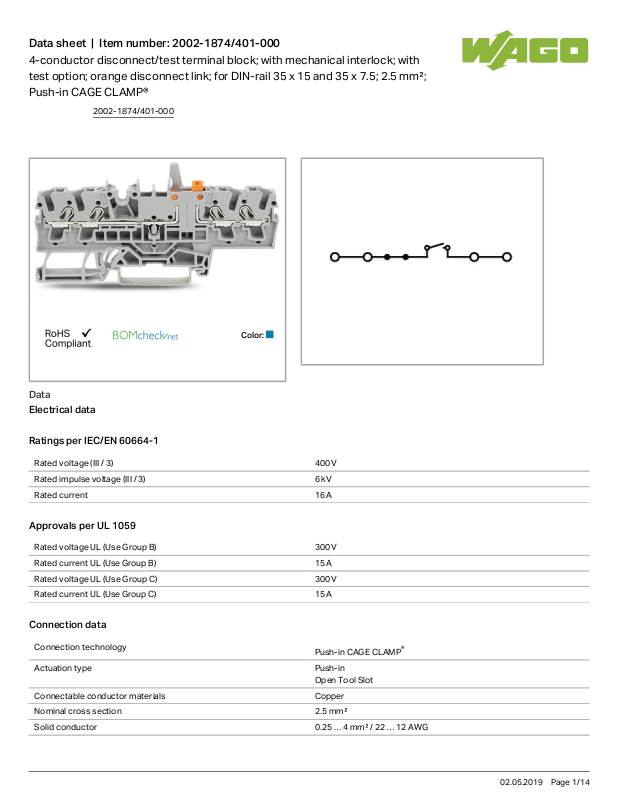

Data sheet | Item number:2002-1874/401-000
4-conductor disconnect/test terminal block; with mechanical interlock; with test option; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
Rated current 16 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
2002-1874/401-000
02.05.2019Page /1 14
Data sheet | Item number:2002-1874/401-000
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 2
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 87.5mm/ 3.445inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.197 MJ
Weight 9.99g

Commercial data

Product Group 22 (TOPJOB S)
Country of origin CN
GTIN 4045454826178
Customs Tariff No. 85365080990

Approvals / Certificates

Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
ATEX
KIWA Netherlands B.V.
EN 60079 KIWA
17ATEX0030 U
2002-1874/401-000
02.05.2019Page /2 14
Data sheet | Item number:2002-1874/401-000
IECEx
KIWA Netherlands B.V.
EN 60079 IECEx KIWA
17.0014U
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CSA
DEKRA Certification B.V.
C22.2 No. 158 1536069
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
107687
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
DEKRA Certification B.V.
EN 60947 NTR NL
7730
UR
Underwriters Laboratories Inc.
UL 1059 E45172
UR
Underwriters Laboratories Inc.
UL 1059 E45172
2002-1874/401-000
02.05.2019Page /3 14
Data sheet | Item number:2002-1874/401-000

Compatible products

Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
check
Item no.: 2002-511
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole
2002-511
Item no.: 2002-549
Spacer module; modular; e.g., for bridging commoned terminal blocks
2002-549
2002-1874/401-000
02.05.2019Page /4 14
Data sheet | Item number:2002-1874/401-000
Item no.: 2002-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole
2002-552
Item no.: 2002-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole
2002-553
Item no.: 2002-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole
2002-554
Item no.: 2002-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole
2002-555
Item no.: 2002-556
Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole
2002-556
Item no.: 2002-557
Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole
2002-557
Item no.: 2002-558
Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole
2002-558
Item no.: 2002-559
Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole
2002-559
Item no.: 2002-560
Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole
2002-560
Item no.: 2002-611
TOPJOB®S L-type test plug module; modular; 1-pole
2002-611
Item no.: 2002-649
TOPJOB®S L-type spacer module; modular; e.g., for bridging commoned terminal blocks
2002-649
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm
2009-182
Item no.: 210-136 Test plug; 2 mm Ø; with 500 mm cable
210-136
General accessories
Item no.: 2002-121
Adaptor
2002-121
Jumper
Item no.: 2002-400
Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A
2002-400
Item no.: 2002-402
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
Item no.: 2002-402/000-005
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
/000-005
Item no.: 2002-402/000-006
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
/000-006
2002-1874/401-000
