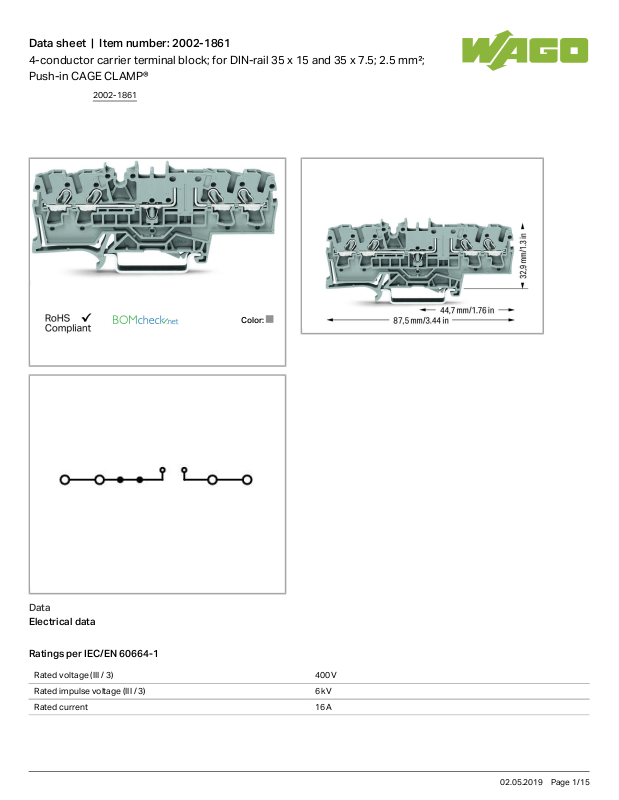

Wago 2002-1861 Data Sheet

Data sheet | Item number:2002-1861

4-conductor carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²;
Push-in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 16 A

2002-1861

02.05.2019Page /1 15

Data sheet | Item number:2002-1861

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 15 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 10 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 10 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 2

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 87.5mm/ 3.445inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

2002-1861

02.05.2019Page /2 15

Data sheet | Item number:2002-1861

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.192 MJ

Weight 9.333g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin CN

GTIN 4045454974787

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

KIWA Netherlands B.V.

EN 60079 KIWA

17ATEX0030
U

IECEx

KIWA Netherlands B.V.

EN 60079 IECEx KIWA

17.0014U

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536069

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677-

2002-1861

02.05.2019Page /3 15

Data sheet | Item number:2002-1861

American Bureau of Shipping HG1293677-

PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7730

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UR

Underwriters Laboratories Inc.

UL 1059 E45172
