Wago 2002-1811/1000-542 Data Sheet

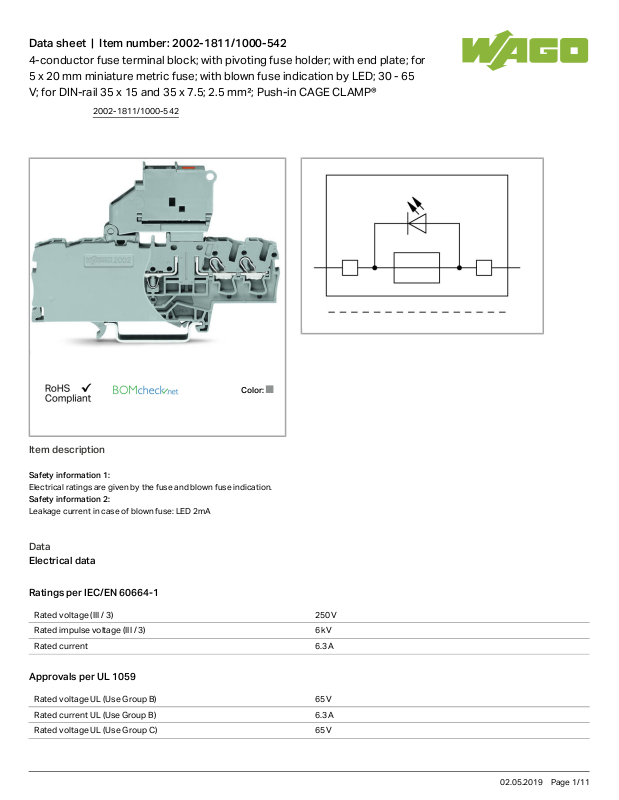

Data sheet | Item number:2002-1811/1000-542

4-conductor fuse terminal block; with pivoting fuse holder; with end plate; for
5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 30 - 65
V; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

Color:

Item description

Safety information 1:

Electrical ratings are given by the fuse and blown fuse indication.

Safety information 2:

Leakage current in case of blown fuse: LED 2mA

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 6 kV

Rated current 6.3 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 65 V

Rated current UL (Use Group B) 6.3 A

Rated voltage UL (Use Group C) 65V

2002-1811/1000-542

02.05.2019Page /1 11

Data sheet | Item number:2002-1811/1000-542

Rated current UL (Use Group C) 6.3 A

Rated voltage UL (Use Group D) 65 V

Rated current UL (Use Group D) 6.3 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 6.2mm/ 0.244inch

Height from upper-edge of DIN-35 rail 57.2mm/ 2.252inch

Depth 87.5mm/ 3.445inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0 MJ

Weight 16.85g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

2002-1811/1000-542

02.05.2019Page /2 11

Data sheet | Item number:2002-1811/1000-542

GTIN 4045454790080

Customs Tariff No. 85369095990

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

KIWA Netherlands B.V.

EN 60079 KIWA

17ATEX0030
U

IECEx

KIWA Netherlands B.V.

EN 60079 IECEx KIWA

17.0014U

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536069

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7730

2002-1811/1000-542

02.05.2019Page /3 11

Data sheet | Item number:2002-1811/1000-542

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

End plate

Item no.: 2002-991

End plate for fuse terminal blocks; 2 mm thick

2002-991

Item no.: 2002-992

End plate for fuse terminal blocks; 2 mm thick

2002-992

Protective Warning Marker

Item no.: 2002-115

Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks

2002-115

check

Item no.: 210-136

Test plug; 2 mm Ø; with 500 mm cable

210-136

Marking accessories

Item no.: 2009-110

Marking strips; on reel; not stretchable; plain; snap-on type

2009-110

Item no.: 2009-115

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

Item no.: 2009-115/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-002
