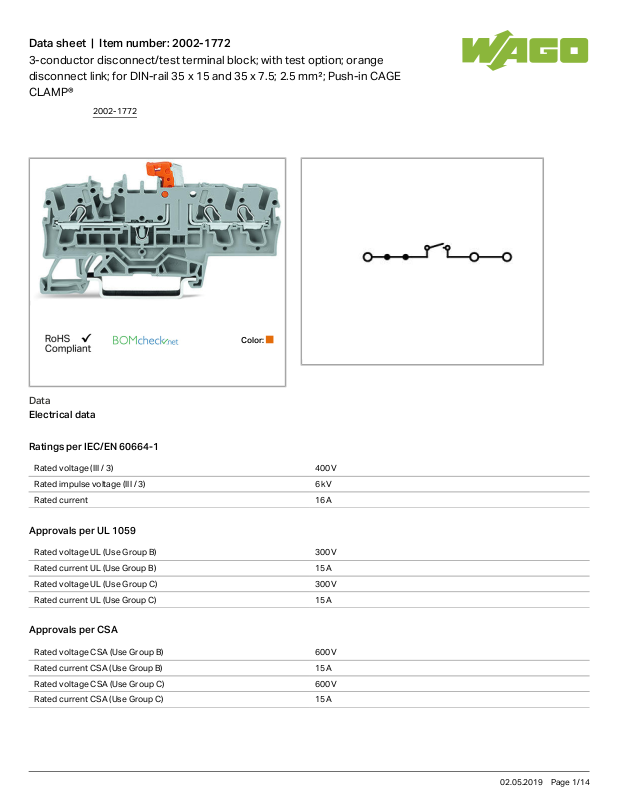

Wago 2002-1772 Data Sheet

Data sheet | Item number:2002-1772
3-conductor disconnect/test terminal block; with test option; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
Rated current 16 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 15 A
Rated voltage CSA (Use Group C) 600V
Rated current CSA (Use Group C) 15 A
2002-1772
02.05.2019Page /1 14
Data sheet | Item number:2002-1772

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 3
Total number of potentials 2
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 76.8mm/ 3.024inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color orange
Insulating material Polyamide 66 (PA 66)
Fire load 0.18 MJ
Weight 8.712g

Commercial data

Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4050821707547
Customs Tariff No. 85365080990
2002-1772
02.05.2019Page /2 14
Data sheet | Item number:2002-1772
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
ATEX
KIWA Netherlands B.V.
EN 60079 KIWA
17ATEX0030 U
IECEx
KIWA Netherlands B.V.
EN 60079 IECEx KIWA
17.0014U
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CSA
DEKRA Certification B.V.
C22.2 1536069
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
107687
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
DEKRA Certification B.V.
EN 60947 NTR NL
7730
UR
Underwriters Laboratories Inc.
UL 1059 E45172
2002-1772
02.05.2019Page /3 14
Data sheet | Item number:2002-1772
Underwriters Laboratories Inc.
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

General accessories
Item no.: 2002-121
Adaptor
2002-121
Jumper
Item no.: 2002-400
Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A
2002-400
Item no.: 2002-402
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
Item no.: 2002-402/000-005
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
/000-005
Item no.: 2002-402/000-006
Push-in type jumper bar; insulated; 2-way; Nominal current 25 A
2002-402
/000-006
Item no.: 2002-403
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
Item no.: 2002-403/000-005
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
/000-005
Item no.: 2002-403/000-006
Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
2002-403
/000-006
Item no.: 2002-404
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
2002-1772
02.05.2019Page /4 14
Data sheet | Item number:2002-1772
Item no.: 2002-404/000-005
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
/000-005
Item no.: 2002-404/000-006
Push-in type jumper bar; insulated; 4-way; Nominal current 25 A
2002-404
/000-006
Item no.: 2002-405
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
Item no.: 2002-405/000-005
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
/000-005
Item no.: 2002-405/000-006
Push-in type jumper bar; insulated; 5-way; Nominal current 25 A
2002-405
/000-006
Item no.: 2002-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2002-405
/011-000
Item no.: 2002-406
Push-in type jumper bar; insulated; 6-way; Nominal current 25 A
2002-406
Item no.: 2002-406/000-005
Push-in type jumper bar; insulated; 6-way; Nominal current 25 A
2002-406
/000-005
Item no.: 2002-406/000-006
Push-in type jumper bar; insulated; 6-way; Nominal current 25 A
2002-406
/000-006
Item no.: 2002-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block
2002-406
/020-000
Item no.: 2002-407
Push-in type jumper bar; insulated; 7-way; Nominal current 25 A
2002-407
Item no.: 2002-407/000-005
Push-in type jumper bar; insulated; 7-way; Nominal current 25 A
2002-407
/000-005
Item no.: 2002-407/000-006
Push-in type jumper bar; insulated; 7-way; Nominal current 25 A
2002-407
/000-006
Item no.: 2002-408
Push-in type jumper bar; insulated; 8-way; Nominal current 25 A
2002-408
Item no.: 2002-408/000-005
Push-in type jumper bar; insulated; 8-way; Nominal current 25 A
2002-408
/000-005
Item no.: 2002-408/000-006
Push-in type jumper bar; insulated; 8-way; Nominal current 25 A
2002-408
/000-006
2002-1772
02.05.2019Page /5 14
Loading...
