Wago 2002-1771/401-000 Data Sheet

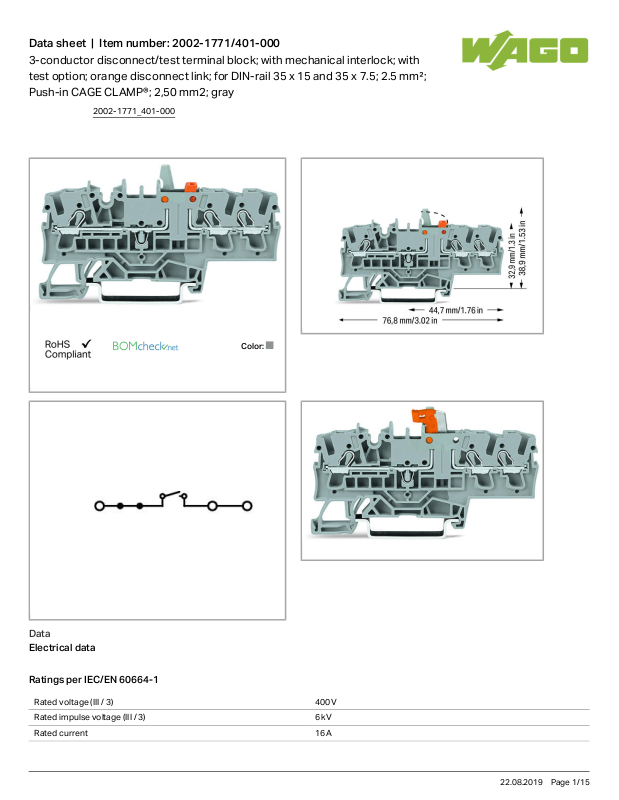

Data sheet | Item number:2002-1771/401-000

3-conductor disconnect/test terminal block; with mechanical interlock; with
test option; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²;
Push-in CAGE CLAMP®; 2,50 mm2; gray

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 16 A

2002-1771_401-000

22.08.2019Page /1 15

Data sheet | Item number:2002-1771/401-000



Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 15 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 4mm²/ 22 12AWG

Solid conductor, push-in termination 0.75 4mm²/ 18 12AWG

Fine-stranded conductor 0.25 4mm²/ 22 12AWG

Strip length 10 12mm/ 0.39 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 3

Total number of potentials 2

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 76.8mm/ 3.024inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.176 MJ

Weight 8.756g

2002-1771_401-000

22.08.2019Page /2 15

Data sheet | Item number:2002-1771/401-000

Commercial data

Country of origin CN

GTIN 4050821707561

Customs Tariff No. 85365080990

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

KIWA Netherlands B.V.

EN 60079 KIWA

17ATEX0030
U

IECEx

KIWA Netherlands B.V.

EN 60079 IECEx KIWA

17.0014U

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 1536069

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2198985.01

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

CSA

DEKRA Certification B.V.

C22.2 1536069

2002-1771_401-000

22.08.2019Page /3 15

Data sheet | Item number:2002-1771/401-000

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7704

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7730

UR

Underwriters Laboratories Inc.

UL 1059 E45172

2002-1771_401-000

22.08.2019Page /4 15

Data sheet | Item number:2002-1771/401-000

Compatible products

End plate

Item no.: 2002-1791

End and intermediate plate; 1 mm thick; gray

2002-1791

Item no.: 2002-1792

End and intermediate plate; 1 mm thick; orange

2002-1792

check

Item no.: 2002-511

Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole; 2,50 mm2; gray

2002-511

Item no.: 2002-549

Spacer module; modular; e.g., for bridging commoned terminal blocks; gray

2002-549

Item no.: 2002-552

Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole; 2,50 mm2; gray

2002-552

Item no.: 2002-553

Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole; 2,50 mm2; gray

2002-553

Item no.: 2002-554

Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole; 2,50 mm2; gray

2002-554

Item no.: 2002-555

Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole; 2,50 mm2; gray

2002-555

Item no.: 2002-556

Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole; 2,50 mm2; gray

2002-556

Item no.: 2002-557

Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole; 2,50 mm2; gray

2002-557

Item no.: 2002-558

Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole; 2,50 mm2; gray

2002-558

Item no.: 2002-559

Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole; 2,50 mm2; gray

2002-559

Item no.: 2002-560

Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole; 2,50 mm2; gray

2002-560

Item no.: 2002-611

TOPJOB®S L-type test plug module; modular; 1-pole; 2,50 mm2; gray

2002-611

2002-1771_401-000

22.08.2019Page /5 15
