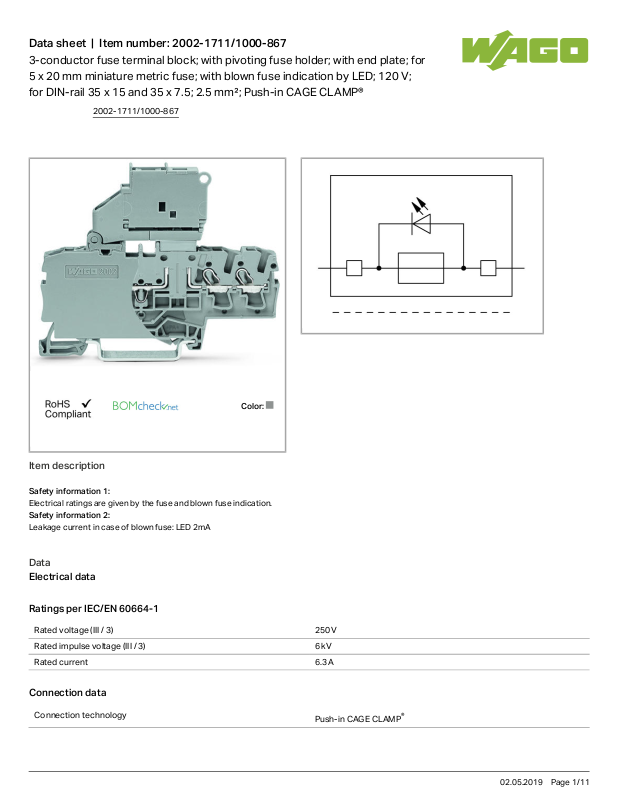

Wago 2002-1711/1000-867 Data Sheet
Data sheet | Item number:2002-1711/1000-867
3-conductor fuse terminal block; with pivoting fuse holder; with end plate; for
5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 120 V;
for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®
Color:
Item description
Safety information 1:
Electrical ratings are given by the fuse and blown fuse indication.
Safety information 2:
Leakage current in case of blown fuse: LED 2mA
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 250 V
Rated impulse voltage (III / 3) 6 kV
Rated current 6.3 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
2002-1711/1000-867
02.05.2019Page /1 11
Data sheet | Item number:2002-1711/1000-867
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 3
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 6.2mm/ 0.244inch
Height from upper-edge of DIN-35 rail 57.6mm/ 2.268inch
Depth 76.8mm/ 3.024inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0 MJ
Weight 15.035g
Commercial data
Country of origin DE
GTIN 4050821707646
Customs Tariff No. 85369095990
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
ATEX
EN 60079 KIWA
2002-1711/1000-867
02.05.2019Page /2 11
Data sheet | Item number:2002-1711/1000-867
ATEX
KIWA Netherlands B.V.
EN 60079 KIWA
17ATEX0030
U
IECEx
KIWA Netherlands B.V.
EN 60079 IECEx KIWA
17.0014U
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CSA
DEKRA Certification B.V.
C22.2 1536069
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
107687
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
DEKRA Certification B.V.
EN 60947 NTR NL
7730
UR
Underwriters Laboratories Inc.
UL 1059 E45172
UR
Underwriters Laboratories Inc.
UL 1059 E45172
2002-1711/1000-867
02.05.2019Page /3 11
Data sheet | Item number:2002-1711/1000-867
Compatible products
End plate
Item no.: 2002-991
End plate for fuse terminal blocks; 2 mm thick
2002-991
Item no.: 2002-992
End plate for fuse terminal blocks; 2 mm thick
2002-992
N-busbar
Item no.: 210-254
Interlocking link; mechanically locks multiple links; 1 m long
210-254
Jumper
Item no.: 2004-402
Push-in type jumper bar; insulated; 2-way; Nominal current 32 A
2004-402
Item no.: 2004-403
Push-in type jumper bar; insulated; 3-way; Nominal current 32 A
2004-403
Item no.: 2004-404
Push-in type jumper bar; insulated; 4-way; Nominal current 32 A
2004-404
Item no.: 2004-405
Push-in type jumper bar; insulated; 5-way; Nominal current 32 A
2004-405
Item no.: 2004-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2004-405
/011-000
Item no.: 2004-406
Push-in type jumper bar; insulated; 6-way; Nominal current 32 A
2004-406
Item no.: 2004-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block
2004-406
/020-000
Item no.: 2004-407
Push-in type jumper bar; insulated; 7-way; Nominal current 32 A
2004-407
Item no.: 2004-408
Push-in type jumper bar; insulated; 8-way; Nominal current 32 A
2004-408
Item no.: 2004-409
Push-in type jumper bar; insulated; 9-way; Nominal current 32 A
2004-409
2002-1711/1000-867
02.05.2019Page /4 11
