Wago 2002-1711/1000-541 Data Sheet

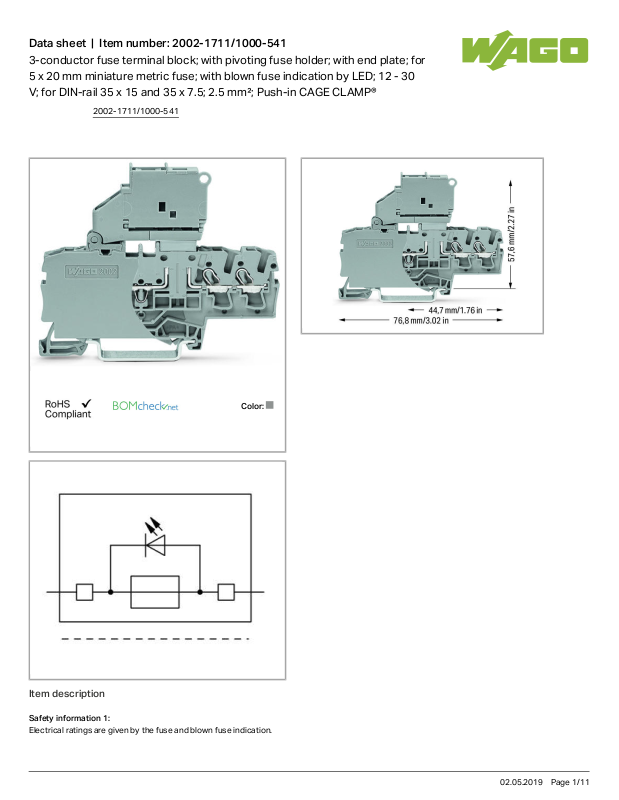

Data sheet | Item number:2002-1711/1000-541

3-conductor fuse terminal block; with pivoting fuse holder; with end plate; for
5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 12 - 30
V; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

Color:

Item description

Safety information 1:

Electrical ratings are given by the fuse and blown fuse indication.

2002-1711/1000-541

02.05.2019Page /1 11

Data sheet | Item number:2002-1711/1000-541

Safety information 2:

Leakage current in case of blown fuse: LED 2mA

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 6 kV

Rated current 6.3 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 6.2mm/ 0.244inch

Height from upper-edge of DIN-35 rail 57.6mm/ 2.268inch

Depth 76.8mm/ 3.024inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

2002-1711/1000-541

02.05.2019Page /2 11

Data sheet | Item number:2002-1711/1000-541

Insulating material Polyamide 66 (PA 66)

Fire load 0 MJ

Weight 15.044g

Commercial data

Country of origin DE

GTIN 4050821707615

Customs Tariff No. 85369095990

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

KIWA Netherlands B.V.

EN 60079 KIWA

17ATEX0030
U

IECEx

KIWA Netherlands B.V.

EN 60079 IECEx KIWA

17.0014U

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 1536069

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

2002-1711/1000-541

02.05.2019Page /3 11

Data sheet | Item number:2002-1711/1000-541

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

DEKRA Certification B.V.

EN 60947 NTR NL

7730

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

Insulation stop

Item no.: 2002-171

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip

2002-171

Item no.: 2002-172

Insulation stop; 0.75 - 1 mm²; 5 pieces/strip

2002-172

N-busbar

Item no.: 210-254

Interlocking link; mechanically locks multiple links; 1 m long

210-254

Carrier rail

Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm

210-112

Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113
