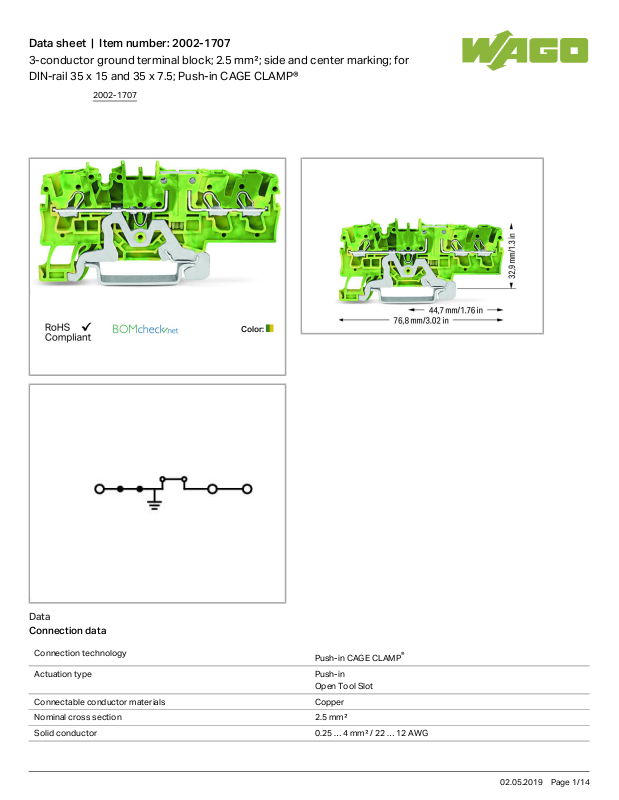

Wago 2002-1707 Data Sheet

Data sheet | Item number:2002-1707

3-conductor ground terminal block; 2.5 mm²; side and center marking; for
DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Color:

Data

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

2002-1707

02.05.2019Page /1 14

Data sheet | Item number:2002-1707

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 76.8mm/ 3.024inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Fire load 0.172 MJ

Weight 11.511g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4050821707516

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

Country specific Approvals

Certificate

2002-1707

02.05.2019Page /2 14

Data sheet | Item number:2002-1707

Logo Approval Additional Approval Text name

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107687
