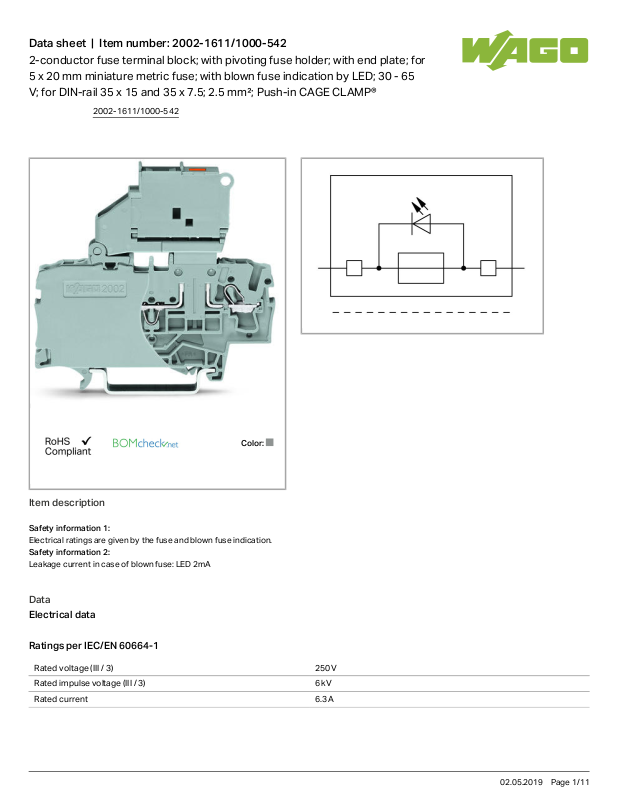

Wago 2002-1611/1000-542 Data Sheet
Data sheet | Item number: 2002-1611/1000-542
2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for 5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 30 - 65 V; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®
2002-1611/1000-542
Color:
Item description
Safety information 1:
Electrical ratings are given by the fuse and blown fuse indication.
Safety information 2:
Leakage current in case of blown fuse: LED 2mA
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) |
250V |
Rated impulse voltage (III / 3) |
6kV |
Rated current |
6.3A |
02.05.2019 Page 1/11
Data sheet | Item number: 2002-1611/1000-542
2002-1611/1000-542
Approvals per UL 1059
Rated voltage UL (Use Group B)
Rated current UL (Use Group B)
Rated voltage UL (Use Group C)
Rated current UL (Use Group C)
Rated voltage UL (Use Group D)
Rated current UL (Use Group D)
Connection data
Connection technology
Actuation type
Connectable conductor materials
Nominal cross section
Solid conductor
Solid conductor, push-in termination
Fine-stranded conductor
Strip length
Note (conductor cross-section)
Total number of connection points
Total number of potentials
Number of levels
Type of wiring
Geometrical Data
Width
Height from upper-edge of DIN-35 rail
Depth
Mechanical data
Design
Type of mounting
Marking level
Material Data
Color
Insulating material
Fire load
65V
6.3A
65V
6.3A
65V
6.3A
Push-in CAGE CLAMP®
Push-in
Open Tool Slot
Copper
2.5 mm²
0.25 … 4 mm² / 22 … 12 AWG
0.75 … 4 mm² / 18 … 12 AWG
0.25 … 4 mm² / 22 … 12 AWG
10 … 12 mm / 0.39 … 0.47 inch
Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
2
1
1
Front-entry wiring
6.2 mm / 0.244 inch
57.2 mm / 2.252 inch
66.1 mm / 2.602 inch
horizontal DIN-35 rail
Center/side marking
gray
Polyamide 66 (PA 66) 0MJ
02.05.2019 Page 2/11
Data sheet | Item number: 2002-1611/1000-542
|
2002-1611/1000-542 |
|
|
|
Weight |
|
13.542g |
|
|
Commercial data |
|
|
||
Product Group |
22 (TOPJOB S) |
|
||
Country of origin |
DE |
|
||
GTIN |
|
4045454790035 |
|
|
Customs Tariff No. |
85369095990 |
|
||
Approvals / Certificates |
|
|
||
Ex-Approvals |
|
|
Certificate |
|
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
AEx |
UL 60079 |
E185892 |
|
|
Underwriters Laboratories Inc. |
|
|
|
|
ATEX |
EN 60079 |
KIWA |
|
|
KIWA Netherlands B.V. |
|
17ATEX0030 |
|
|
|
|
U |
|
|
IECEx |
EN 60079 |
IECEx KIWA |
|
|
KIWA Netherlands B.V. |
|
17.0014U |
|
Country specific Approvals |
|
Certificate |
||
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
CSA |
C22.2 No. 158 |
1536069 |
|
|
DEKRA Certification B.V. |
|
|
|
|
KEMA/KEUR |
EN 60947 |
71- |
|
|
DEKRA Certification B.V. |
|
107687 |
|
Ship Approvals |
|
|
Certificate |
|
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
ABS |
EN 60947 |
14- |
|
|
American Bureau of Shipping |
|
HG1293677- |
|
|
|
|
PDA |
|
|
DNV GL |
- |
TAE00001V2 |
|
|
Det Norske Veritas, Germanischer Lloyd |
|
|
|
02.05.2019 Page 3/11
Data sheet | Item number: 2002-1611/1000-542
2002-1611/1000-542
UL-Approvals |
|
|
Certificate |
|
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
UR |
EN 60947 |
NTR NL |
|
|
DEKRA Certification B.V. |
|
7730 |
|
|
UR |
UL 1059 |
E45172 |
|
|
Underwriters Laboratories Inc. |
|
|
|
|
UR |
UL 1059 |
E45172 |
|
|
Underwriters Laboratories Inc. |
|
|
Compatible products
ferrule
Item no.: 216-241 |
216-241 |
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight |
|
crimped; acc. to DIN 46228, Part 4/09.90 |
|
Item no.: 216-242 |
216-242 |
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight |
|
crimped; acc. to DIN 46228, Part 4/09.90 |
|
Item no.: 216-243 |
216-243 |
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight |
|
crimped; acc. to DIN 46228, Part 4/09.90 |
|
Item no.: 216-244 |
216-244 |
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight |
|
crimped; acc. to DIN 46228, Part 4/09.90 |
|
Item no.: 216-246 |
216-246 |
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight |
|
crimped; acc. to DIN 46228, Part 4/09.90 |
|
Item no.: 216-262 |
216-262 |
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight |
|
crimped; acc. to DIN 46228, Part 4/09.90 |
|
Item no.: 216-263 |
|
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight |
216-263 |
