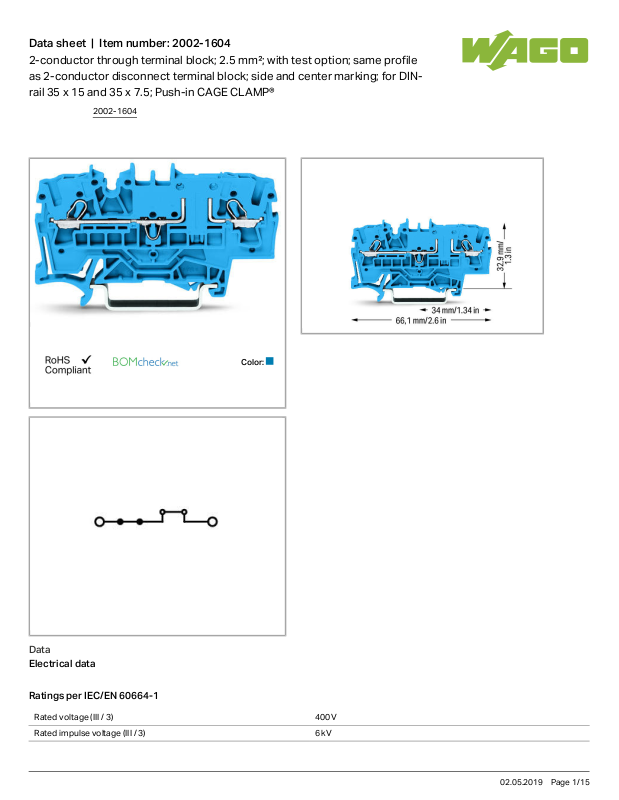

Wago 2002-1604 Data Sheet

Data sheet | Item number:2002-1604

2-conductor through terminal block; 2.5 mm²; with test option; same profile as 2-conductor disconnect terminal block; side and center marking; for DINrail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

2002-1604

02.05.2019Page /1 15

Data sheet | Item number:2002-1604

Rated impulse voltage (III / 3) 6 kV

Rated current 16 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 15 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 20 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 20 A

Connection data

Connection technology

Push-in CAGE CLAMP

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 66.1mm/ 2.602inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

2002-1604

02.05.2019Page /2 15

Data sheet | Item number:2002-1604

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Fire load 0.159 MJ

Weight 7.569g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin CN

GTIN 4045454974664

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

KIWA Netherlands B.V.

EN 60079 KIWA

17ATEX0030 U

IECEx

KIWA Netherlands B.V.

EN 60079 IECEx KIWA

17.0014U

Country specific Approvals

Logo Approval Additional Approval Text

Certificate name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536069

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677-

2002-1604

02.05.2019Page /3 15

Data sheet | Item number:2002-1604

PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate name

DEKRA Certification B.V.

EN 60947 NTR NL

7730

Underwriters Laboratories Inc.

UL 1059 E45172

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

ferrule

Item no.: 216-241 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-241

Item no.: 216-242 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-242

2002-1604

02.05.2019Page /4 15

Data sheet | Item number:2002-1604

Item no.: 216-243 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-243

Item no.: 216-244 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-244

Item no.: 216-246 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-246

Item no.: 216-262 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-262

Item no.: 216-263 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-263

Item no.: 216-264 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-264

Item no.: 216-266 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

216-266

check

Item no.: 2002-511

Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole

2002-511

Item no.: 2002-549

Spacer module; modular; e.g., for bridging commoned terminal blocks

2002-549

Item no.: 2002-552

Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole

2002-552

Item no.: 2002-553

Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole

2002-553

Item no.: 2002-554

Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole

2002-554

Item no.: 2002-555

Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole

2002-555

Item no.: 2002-556

Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole

2002-556

Item no.: 2002-557

Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole

2002-557

Item no.: 2002-558

Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole

2002-558

Item no.: 2002-559

Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole

2002-559

Item no.: 2002-560

Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole

2002-560

Item no.: 2002-611

2002-1604

02.05.2019Page /5 15
