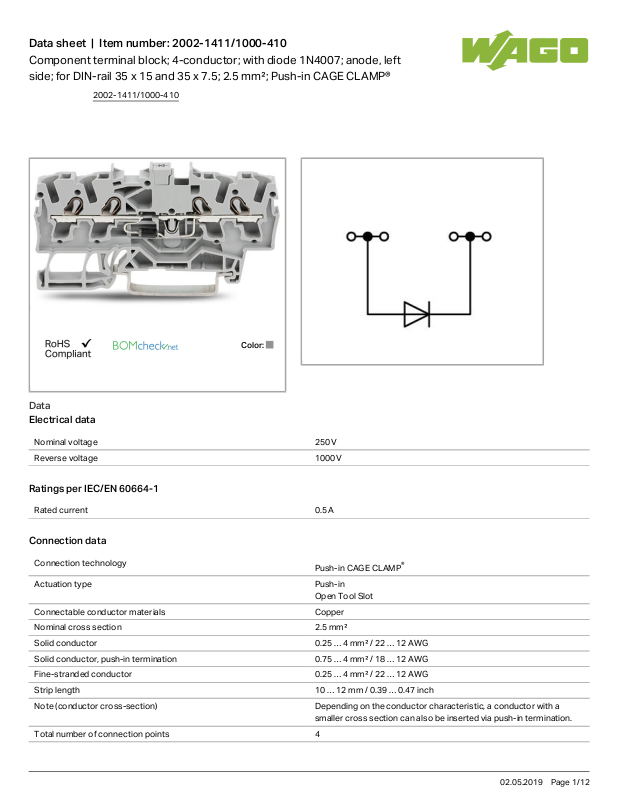

Wago 2002-1411/1000-410 Data Sheet

Data sheet | Item number:2002-1411/1000-410
Component terminal block; 4-conductor; with diode 1N4007; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®
Color:

Data

Electrical data

Nominal voltage 250 V
Reverse voltage 1000V

Ratings per IEC/EN 60664-1

Rated current 0.5 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
2002-1411/1000-410
02.05.2019Page /1 12
Data sheet | Item number:2002-1411/1000-410
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 69.9mm/ 2.752inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.173 MJ
Weight 7.74g

Commercial data

Product Group 22 (TOPJOB S)
Country of origin CN
GTIN 4045454536329
Customs Tariff No. 85369010000

Compatible products

tools
Item no.: 210-658
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled
210-658
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
Carrier rail
2002-1411/1000-410
02.05.2019Page /2 12
Data sheet | Item number:2002-1411/1000-410
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
Protective Warning Marker
Item no.: 2002-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2002-115
ferrule
Item no.: 216-241 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-241
Item no.: 216-242 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-243
Item no.: 216-244 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-244
Item no.: 216-246 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-246
2002-1411/1000-410
02.05.2019Page /3 12
Data sheet | Item number:2002-1411/1000-410
Item no.: 216-262 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-262
Item no.: 216-263 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-263
Item no.: 216-264 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-264
Item no.: 216-266 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-266
Insulation stop
Item no.: 2002-171
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
2002-171
Item no.: 2002-172
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
2002-172
End plate
Item no.: 2002-1491
End and intermediate plate; 0.8 mm thick
2002-1491
Item no.: 2002-1492
End and intermediate plate; 0.8 mm thick
2002-1492
Item no.: 2002-1493
Separator plate; 2 mm thick; oversized
2002-1493
Item no.: 2002-1494
Separator plate; 2 mm thick; oversized
2002-1494
check
Item no.: 2002-511
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole
2002-511
Item no.: 2002-549
Spacer module; modular; e.g., for bridging commoned terminal blocks
2002-549
Item no.: 2002-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole
2002-552
Item no.: 2002-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole
2002-553
Item no.: 2002-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole
2002-554
Item no.: 2002-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole
2002-555
Item no.: 2002-556
Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole
2002-556
Item no.: 2002-557
Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole
2002-557
2002-1411/1000-410
02.05.2019Page /4 12
