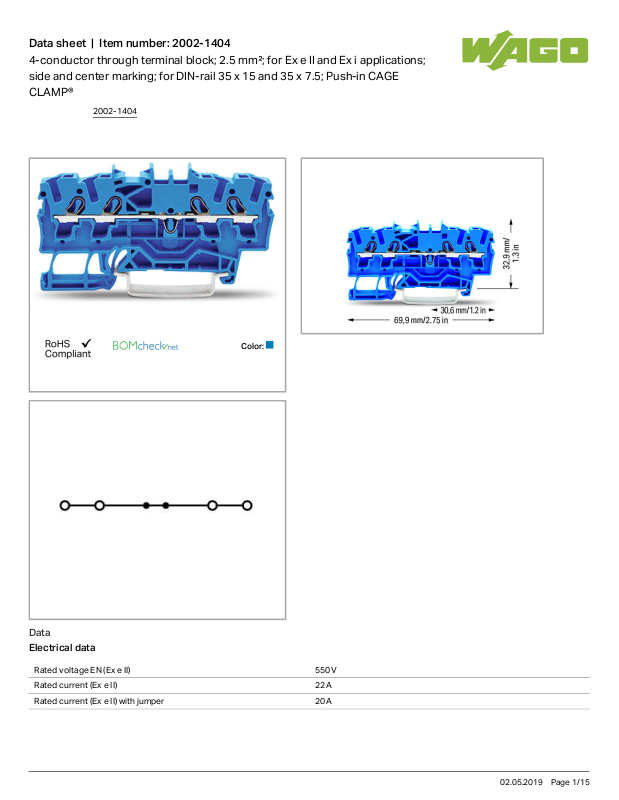

Data sheet | Item number:2002-1404
4-conductor through terminal block; 2.5 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Data

Electrical data

Rated voltage EN (Ex e II) 550 V
Rated current (Ex e II) 22 A
Rated current (Ex e II) with jumper 20 A
2002-1404
02.05.2019Page /1 15
Data sheet | Item number:2002-1404

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 24 A
Rated current (2) 32 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 20 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 20 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 20 A
Rated voltage CSA (Use Group C) 600 V
Rated current CSA (Use Group C) 20 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 69.9mm/ 2.752inch
2002-1404
02.05.2019Page /2 15
Data sheet | Item number:2002-1404
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.122 MJ
Weight 7.5g

Commercial data

Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4017332999304
Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
ATEX
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 03
ATEX 1162 U (II 2 G/D Ex e II bzw. I M 2 Ex e I)
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079 IECEx PTB
03.0004U
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CSA
DEKRA Certification B.V.
C22.2 No. 158 1536069
2002-1404
02.05.2019Page /3 15
Data sheet | Item number:2002-1404
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
107687
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
UR
DEKRA Certification B.V.
EN 60947 NTR NL
7730
