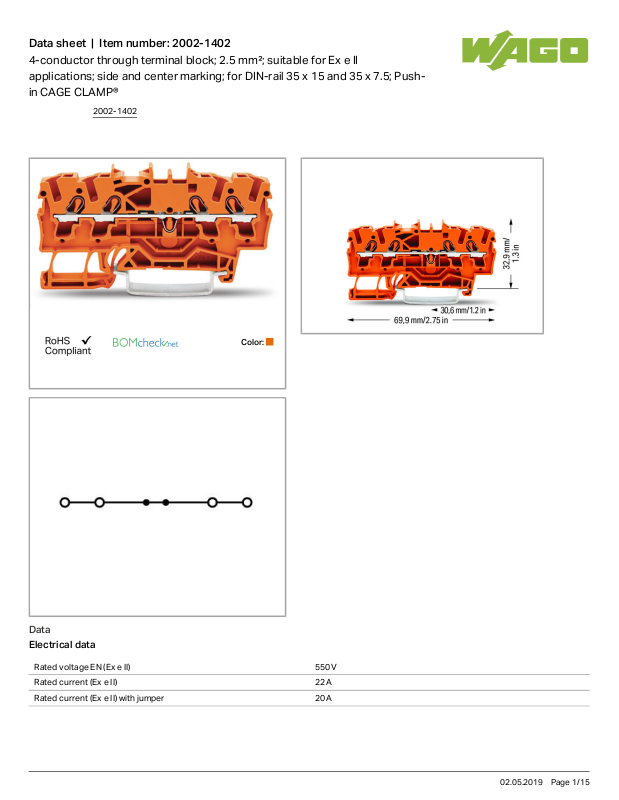

Data sheet | Item number:2002-1402
4-conductor through terminal block; 2.5 mm²; suitable for Ex e II
applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Pushin CAGE CLAMP®
Color:
Data
Electrical data
Rated voltage EN (Ex e II) 550 V
Rated current (Ex e II) 22 A
Rated current (Ex e II) with jumper 20 A
2002-1402
02.05.2019Page /1 15
Data sheet | Item number:2002-1402
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 24 A
Rated current (2) 32 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 20 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 20 A
Approvals per CSA
Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 20 A
Rated voltage CSA (Use Group C) 600 V
Rated current CSA (Use Group C) 20 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 2.5mm²
Solid conductor 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG
Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG
Strip length 10 … 12mm/ 0.39 … 0.47inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 5.2mm/ 0.205inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 69.9mm/ 2.752inch
2002-1402
02.05.2019Page /2 15
Data sheet | Item number:2002-1402
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color orange
Insulating material Polyamide 66 (PA 66)
Fire load 0.122 MJ
Weight 7.4g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4017332999298
Customs Tariff No. 85369010000
Approvals / Certificates
