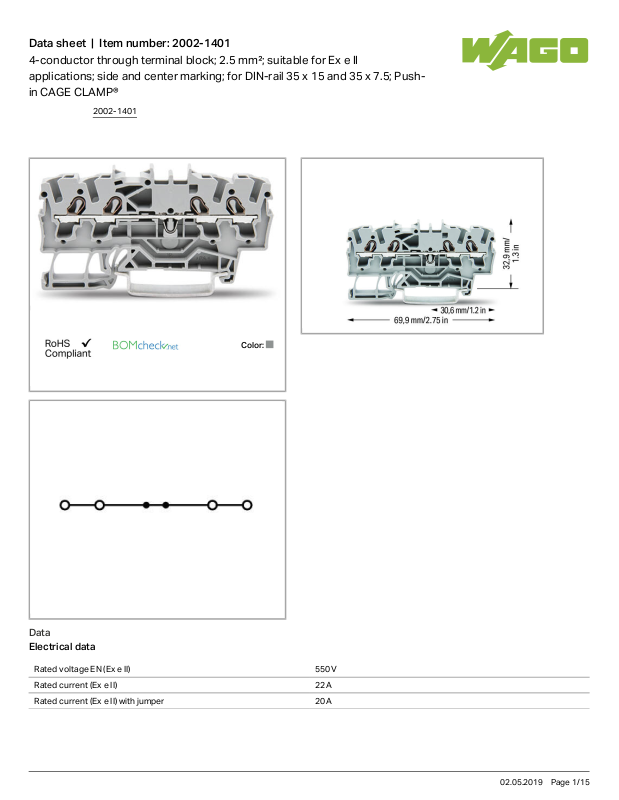

Wago 2002-1401 Data Sheet

Data sheet | Item number:2002-1401

4-conductor through terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Pushin CAGE CLAMP®

Color:

Data

Electrical data

Rated voltage EN (Ex e II) 550 V

Rated current (Ex e II) 22 A

Rated current (Ex e II) with jumper 20 A

2002-1401

02.05.2019Page /1 15

Data sheet | Item number:2002-1401

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 24 A

Rated current (2) 32 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 20 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 20 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 20 A

Rated voltage CSA (Use Group C) 600 V

Rated current CSA (Use Group C) 20 A

Connection data

Connection technology

Push-in CAGE CLAMP

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 2.5mm²

Solid conductor 0.25 … 4mm²/ 22 … 12AWG

Solid conductor, push-in termination 0.75 … 4mm²/ 18 … 12AWG

Fine-stranded conductor 0.25 … 4mm²/ 22 … 12AWG

Strip length 10 … 12mm/ 0.39 … 0.47inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5.2mm/ 0.205inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 69.9mm/ 2.752inch

2002-1401

02.05.2019Page /2 15

Data sheet | Item number:2002-1401

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.153 MJ

Weight 7.6g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4017332999281

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 03

ATEX 1162 U (II 2 G/D Ex e II bzw. I M 2 Ex e I)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

03.0004U

Country specific Approvals

Logo Approval Additional Approval Text

Certificate name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536069

2002-1401

02.05.2019Page /3 15

Data sheet | Item number:2002-1401

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107687

Ship Approvals

Logo Approval Additional Approval Text

Certificate name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677PDA

Bureau Veritas S.A.

EN 60947 38586/A0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate name

cURus

Underwriters Laboratories Inc.

UL 1059 E45172

cURus

Underwriters Laboratories Inc.

UL 1059 E45172

DEKRA Certification B.V.

EN 60947 NTR NL

7730

Compatible products

2002-1401

02.05.2019Page /4 15

Data sheet | Item number:2002-1401

Carrier rail

Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm

210-112

Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113

Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm

210-115

Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118

Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715

210-196

Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715

210-197

Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-198

Item no.: 210-504 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715

210-504

Item no.: 210-505 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715

210-505

Item no.: 210-506 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715

210-506

Item no.: 210-508 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715

210-508

End plate

Item no.: 2002-1491

End and intermediate plate; 0.8 mm thick

2002-1491

Item no.: 2002-1492

End and intermediate plate; 0.8 mm thick

2002-1492

Item no.: 2002-1493

Separator plate; 2 mm thick; oversized

2002-1493

Item no.: 2002-1494

Separator plate; 2 mm thick; oversized

2002-1494

2002-1401

02.05.2019Page /5 15
