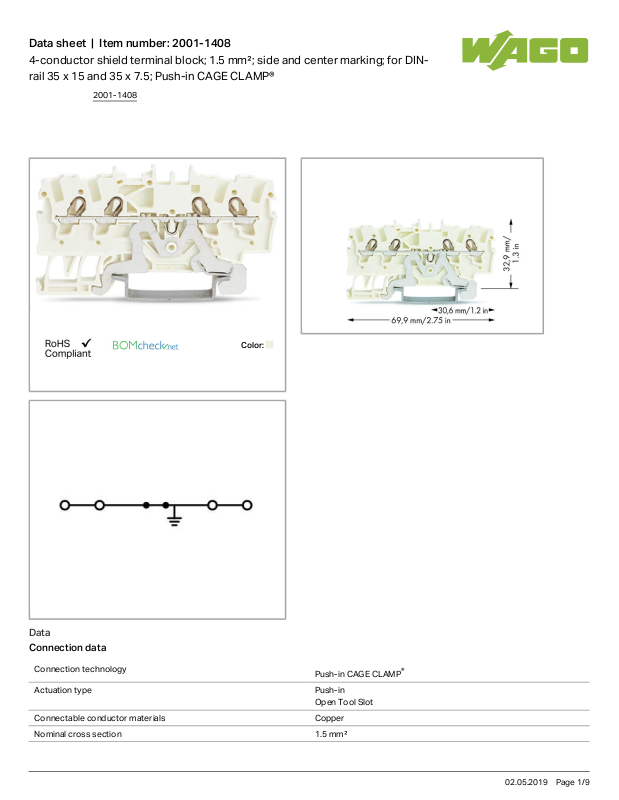

Wago 2001-1408 Data Sheet

Data sheet | Item number:2001-1408

4-conductor shield terminal block; 1.5 mm²; side and center marking; for DIN­rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Color:

Data

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 1.5mm²

2001-1408

02.05.2019Page /1 9

Data sheet | Item number:2001-1408

Nominal cross section 1.5mm²

Solid conductor 0.25 … 2.5mm²/ 22 … 14AWG

Solid conductor, push-in termination 0.75 … 2.5mm²/ 18 … 14AWG

Fine-stranded conductor 0.25 … 2.5mm²/ 22 … 14AWG

Strip length 9 … 11mm/ 0.35 … 0.43inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 4.2mm/ 0.165inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 69.9mm/ 2.752inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color white

Insulating material Polyamide 66 (PA 66)

Fire load 0.102 MJ

Weight 8.291g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4045454719487

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2160584.07

2001-1408

02.05.2019Page /2 9

Data sheet | Item number:2001-1408

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7084

CSA

DEKRA Certification B.V.

C22.2 No. 158 1645434

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 E45172

Compatible products

End plate

Item no.: 2002-1491

End and intermediate plate; 0.8 mm thick

2002-1491

Item no.: 2002-1492

End and intermediate plate; 0.8 mm thick

2002-1492

Item no.: 2002-1493

Separator plate; 2 mm thick; oversized

2002-1493

Item no.: 2002-1494

Separator plate; 2 mm thick; oversized

2002-1494

Carrier rail

Item no.: 210-112

2001-1408

02.05.2019Page /3 9
