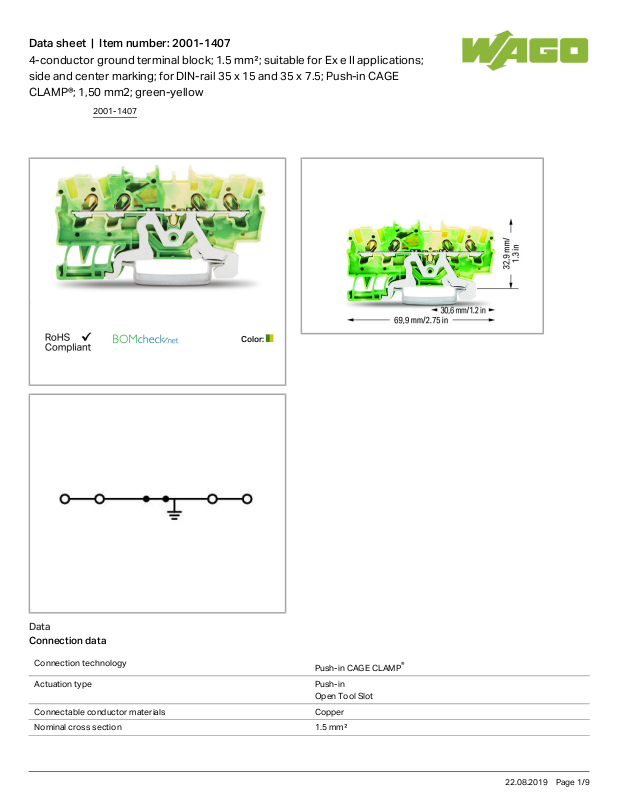

Wago 2001-1407 Data Sheet

Data sheet | Item number:2001-1407

4-conductor ground terminal block; 1.5 mm²; suitable for Ex e II applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®; 1,50 mm2; green-yellow

Color:

Data

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 1.5mm²

2001-1407

22.08.2019Page /1 9

Data sheet | Item number:2001-1407

Solid conductor 0.25 2.5mm²/ 22 14AWG

Solid conductor, push-in termination 0.75 2.5mm²/ 18 14AWG

Fine-stranded conductor 0.25 2.5mm²/ 22 14AWG

Strip length 9 11mm/ 0.35 0.43inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Geometrical Data

Width 4.2mm/ 0.165inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 69.9mm/ 2.752inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Weight 8.654g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4055143616973

Customs Tariff No. 85369010000
