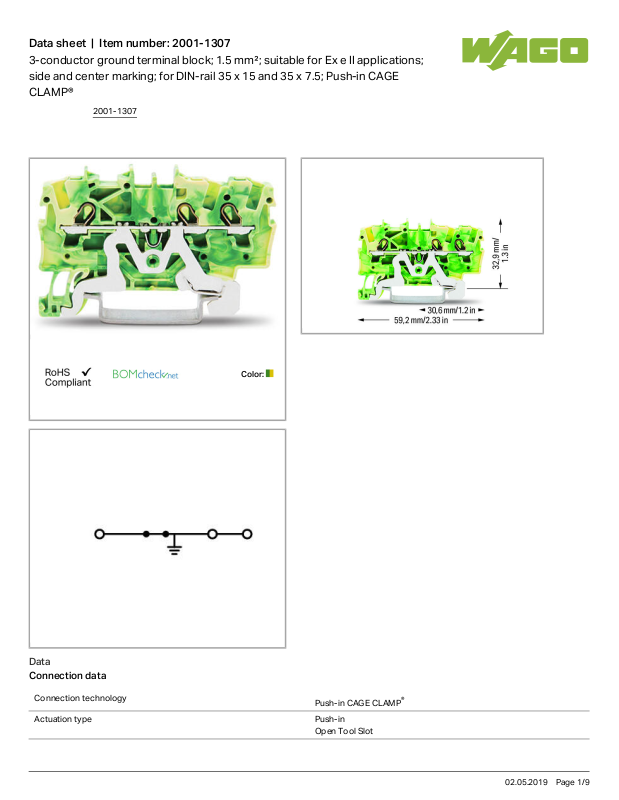

Data sheet | Item number: 2001-1307
3-conductor ground terminal block; 1.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®
2001-1307
Color:
Connection technology |
Push-in CAGE CLAMP® |
Actuation type |
Push-in |
|
Open Tool Slot |
02.05.2019 Page 1/9
Data sheet | Item number: 2001-1307
2001-1307 |
|
Connectable conductor materials |
Copper |
Nominal cross section |
1.5 mm² |
Solid conductor |
0.25 … 2.5 mm² / 22 … 14 AWG |
Solid conductor, push-in termination |
0.75 … 2.5 mm² / 18 … 14 AWG |
Fine-stranded conductor |
0.25 … 2.5 mm² / 22 … 14 AWG |
Strip length |
9 … 11 mm / 0.35 … 0.43 inch |
Note (conductor cross-section) |
Depending on the conductor characteristic, a conductor with a |
|
smaller cross section can also be inserted via push-in termination. |
Total number of connection points |
3 |
Total number of potentials |
1 |
Number of levels |
1 |
Type of wiring |
Front-entry wiring |
Geometrical Data |
|
Width |
4.2 mm / 0.165 inch |
Height from upper-edge of DIN-35 rail |
32.9 mm / 1.295 inch |
Depth |
59.2 mm / 2.33 inch |
Mechanical data |
|
Design |
horizontal |
Type of mounting |
DIN-35 rail |
Marking level |
Center/side marking |
Material Data |
|
Color |
green-yellow |
Insulating material |
Polyamide 66 (PA 66) |
Fire load |
0.089MJ |
Weight |
7.484g |
Commercial data |
|
Product Group |
22 (TOPJOB S) |
Country of origin |
DE |
GTIN |
4017332998659 |
Customs Tariff No. |
85369010000 |
Ex-Approvals |
|
|
Certificate |
|
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
AEx |
UL 60079 |
E185892 |
|
|
UL International Germany GmbH c/o Physikalisch |
|
sec.12 |
02.05.2019 Page 2/9
Data sheet | Item number: 2001-1307
2001-1307
|
Technische Bundesanstalt |
|
|
|
|
ATEx |
EN 60079 |
PTB 05 |
|
|
Physikalisch Technische Bundesanstalt (PTB) |
|
ATEX |
|
|
|
|
1094 U (II |
|
|
|
|
2 G Ex e II |
|
|
|
|
bzw.I M 2 |
|
|
|
|
Ex e I) |
|
|
IECEx |
IEC 60079 |
IECEx PTB |
|
|
Physikalisch Technische Bundesanstalt (PTB) |
|
11.0093U |
|
|
|
|
(Ex e IIC |
|
|
|
|
Gb or Ex e |
|
|
|
|
I Mb) |
|
Country specific Approvals |
|
Certificate |
||
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
CSA |
C22.2 No. 158 |
1645434 |
|
|
DEKRA Certification B.V. |
|
|
|
Ship Approvals |
|
|
Certificate |
|
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
ABS |
EN 60947 |
14- |
|
|
American Bureau of Shipping |
|
HG1293677- |
|
|
|
|
PDA |
|
|
BV |
EN 60947 |
38586/A0 BV |
|
|
Bureau Veritas S.A. |
|
|
|
|
DNV GL |
- |
TAE00001V2 |
|
|
Det Norske Veritas, Germanischer Lloyd |
|
|
|
|
LR |
EN 60947 |
91/20112 |
|
|
Lloyds Register |
|
(E9) |
|
UL-Approvals |
|
|
Certificate |
|
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
UL |
UL 1059 |
E45172 |
|
|
UL International Germany GmbH |
|
|
