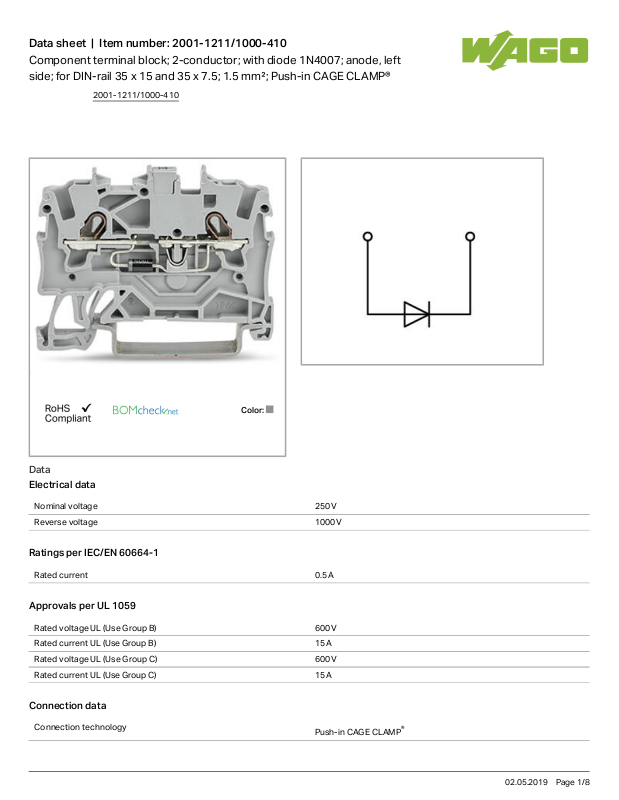

Wago 2001-1211/1000-410 Data Sheet

Data sheet | Item number:2001-1211/1000-410

Component terminal block; 2-conductor; with diode 1N4007; anode, left
side; for DIN-rail 35 x 15 and 35 x 7.5; 1.5 mm²; Push-in CAGE CLAMP®

Color:

Data

Electrical data

Nominal voltage 250 V

Reverse voltage 1000V

Ratings per IEC/EN 60664-1

Rated current 0.5 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 15 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

2001-1211/1000-410

02.05.2019Page /1 8

Data sheet | Item number:2001-1211/1000-410

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 1.5mm²

Solid conductor 0.25 … 2.5mm²/ 22 … 14AWG

Solid conductor, push-in termination 0.75 … 2.5mm²/ 18 … 14AWG

Fine-stranded conductor 0.25 … 2.5mm²/ 22 … 14AWG

Strip length 9 … 11mm/ 0.35 … 0.43inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 4.2mm/ 0.165inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 48.5mm/ 1.909inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.106 MJ

Weight 4.29g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin CN

GTIN 4045454537548

Customs Tariff No. 85369010000

Compatible products

2001-1211/1000-410

02.05.2019Page /2 8

Data sheet | Item number:2001-1211/1000-410

ferrule

Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-241

Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-242

Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-243

Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-244

End plate

Item no.: 2002-1291

End and intermediate plate; 0.8 mm thick

2002-1291

Item no.: 2002-1292

End and intermediate plate; 0.8 mm thick

2002-1292

Item no.: 2002-1293

Separator plate; 2 mm thick; oversized

2002-1293

Item no.: 2002-1294

Separator plate; 2 mm thick; oversized

2002-1294

Insulation stop

Item no.: 2001-171

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip

2001-171

Carrier rail

Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm

210-112

Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113

Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm

210-115

Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118

Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715

210-196

2001-1211/1000-410

02.05.2019Page /3 8
