Data sheet | Item number:2001-1208

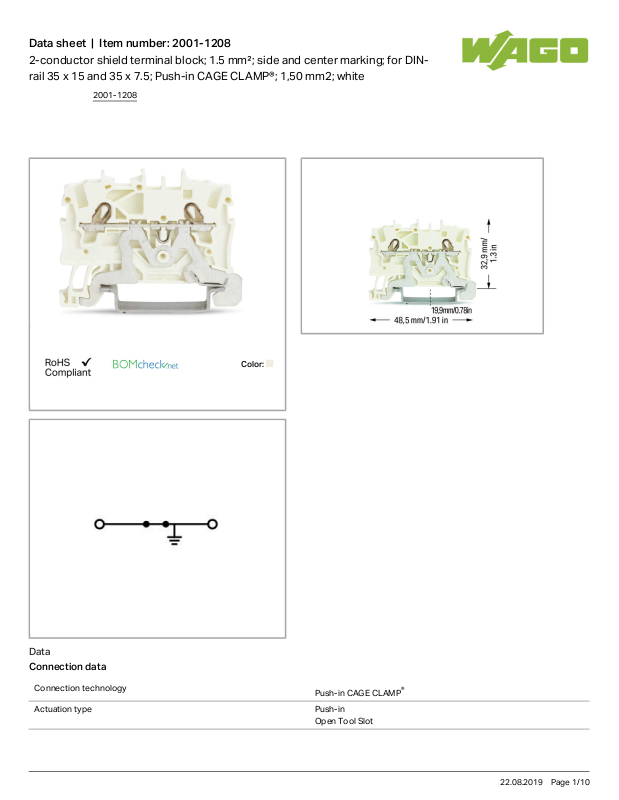

2-conductor shield terminal block; 1.5 mm²; side and center marking; for DINrail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm2; white
Color:
Data
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
2001-1208
22.08.2019Page /1 10
Page 2
Data sheet | Item number:2001-1208
Connectable conductor materials Copper
Nominal cross section 1.5mm²
Solid conductor 0.25 2.5mm²/ 22 14AWG
Solid conductor, push-in termination 0.75 2.5mm²/ 18 14AWG
Fine-stranded conductor 0.25 2.5mm²/ 22 14AWG
Strip length 9 11mm/ 0.35 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Number of levels 1
Type of wiring Front-entry wiring
Number of jumper slots 2
Geometrical Data
Width 4.2mm/ 0.165inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 50.8mm/ 2inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color white
Insulating material Polyamide 66 (PA 66)
Weight 6.517g
Commercial data
Country of origin DE
GTIN 4055143448208
Customs Tariff No. 85369010000
Approvals / Certificates
Radio-Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 2160584.07
2001-1208
22.08.2019Page /2 10
Page 3
Data sheet | Item number:2001-1208
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7084
CSA
DEKRA Certification B.V.
C22.2 No. 158 1645434
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 2160584.07
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7084
CSA
DEKRA Certification B.V.
C22.2 No. 158 1645434
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
2001-1208
22.08.2019Page /3 10
Page 4
Data sheet | Item number:2001-1208
Other Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Germany GmbH
UL 1059 E45172
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Germany GmbH
UL 1059 20190731-
E45172
Compatible products
End plate
Item no.: 2002-1291
End and intermediate plate; 0.8 mm thick; gray
2002-1291
Item no.: 2002-1292
End and intermediate plate; 0.8 mm thick; orange
2002-1292
Item no.: 2002-1293
Separator plate; 2 mm thick; oversized; gray
2002-1293
Item no.: 2002-1294
Separator plate; 2 mm thick; oversized; orange
2002-1294
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type; white
2009-110
Item no.: 2009-114
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; white
2009-114
Item no.: 2009-114/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; yellow
2009-114
/000-002
