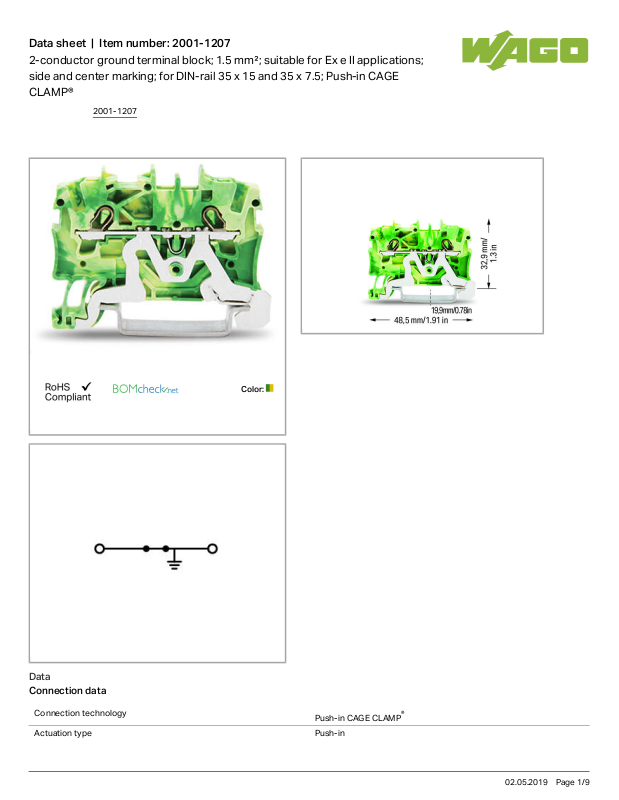

Wago 2001-1207 Data Sheet

Data sheet | Item number:2001-1207

2-conductor ground terminal block; 1.5 mm²; suitable for Ex e II applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®

Color:

Data

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

2001-1207

02.05.2019Page /1 9

Data sheet | Item number:2001-1207

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 1.5mm²

Solid conductor 0.25 … 2.5mm²/ 22 … 14AWG

Solid conductor, push-in termination 0.75 … 2.5mm²/ 18 … 14AWG

Fine-stranded conductor 0.25 … 2.5mm²/ 22 … 14AWG

Strip length 9 … 11mm/ 0.35 … 0.43inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 4.2mm/ 0.165inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 50.8mm/ 2inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Fire load 0.074 MJ

Weight 6.669g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4017332997317

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

2001-1207

02.05.2019Page /2 9

Data sheet | Item number:2001-1207

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec.12

ATEx

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 05

ATEX
1094 U (II
2 G Ex e II
bzw.I M 2
Ex e I)

IECEx

Physikalisch Technische Bundesanstalt (PTB)

IEC 60079 IECEx PTB

11.0093U
(Ex e IIC
Gb or Ex e
I Mb)

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1645434

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 38586/A0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 E45172
