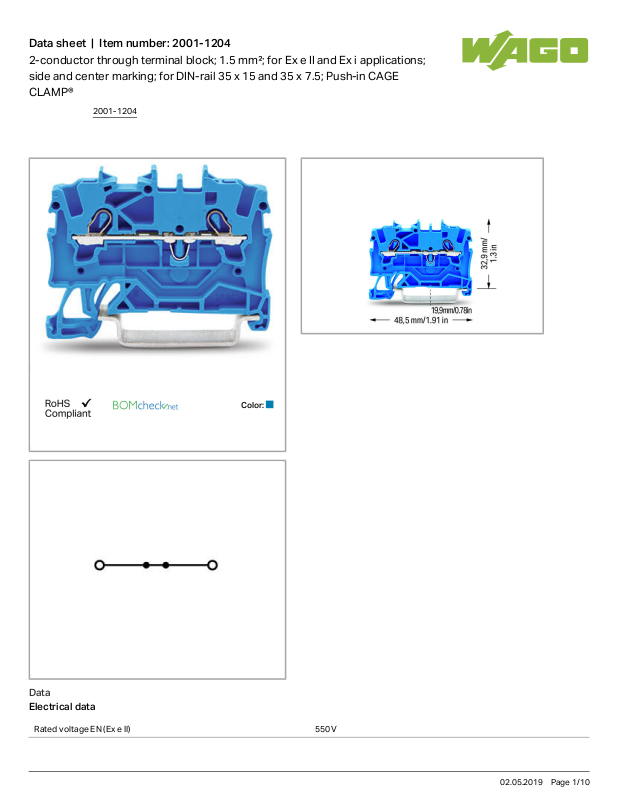

Data sheet | Item number:2001-1204
2-conductor through terminal block; 1.5 mm²; for Ex e II and Ex i applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®
Color:
Data
Electrical data
Rated voltage EN (Ex e II) 550 V
2001-1204
02.05.2019Page /1 10
Data sheet | Item number:2001-1204
Rated current (Ex e II) 17 A
Rated current (Ex e II) with jumper 16 A
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 18 A
Rated current (2) 24 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 15 A
Approvals per CSA
Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 15 A
Rated voltage CSA (Use Group C) 600 V
Rated current CSA (Use Group C) 15 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 1.5mm²
Solid conductor 0.25 … 2.5mm²/ 22 … 14AWG
Solid conductor, push-in termination 0.75 … 2.5mm²/ 18 … 14AWG
Fine-stranded conductor 0.25 … 2.5mm²/ 22 … 14AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 4.2mm/ 0.165inch
2001-1204
02.05.2019Page /2 10
Data sheet | Item number:2001-1204
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 48.5mm/ 1.909inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.074 MJ
Weight 4.37g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4017332997294
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt
UL 60079 E185892
sec.12
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 05
ATEX
1094 U (II
2 G Ex e II
bzw.I M 2
Ex e I)
IECEx
Physikalisch Technische Bundesanstalt (PTB)
IEC 60079 IECEx PTB
11.0093U
(Ex e IIC
Gb or Ex e
I Mb)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
EN 60947 NTR NL-
2001-1204
02.05.2019Page /3 10
Data sheet | Item number:2001-1204
DEKRA Certification B.V. 7084
CCA
DEKRA Certification B.V.
EN 60947 2160584.07
CSA
DEKRA Certification B.V.
C22.2 No. 158 1645434
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Germany GmbH
UL 1059 E45172
Compatible products
Carrier rail
2001-1204
02.05.2019Page /4 10
Data sheet | Item number:2001-1204
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
End plate
Item no.: 2002-1291
End and intermediate plate; 0.8 mm thick
2002-1291
Item no.: 2002-1292
End and intermediate plate; 0.8 mm thick
2002-1292
Item no.: 2002-1293
Separator plate; 2 mm thick; oversized
2002-1293
Item no.: 2002-1294
Separator plate; 2 mm thick; oversized
2002-1294
Item no.: 209-190
Separator for Ex e/Ex i applications; 3 mm thick; 90 mm wide
209-190
Item no.: 209-191
Separator for Ex e/Ex i applications; 3 mm thick; 120 mm wide
209-191
Insulation stop
Item no.: 2001-171
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
2001-171
Jumper
Item no.: 2001-402
Push-in type jumper bar; insulated; 2-way; Nominal current 18 A
2001-402
Item no.: 2001-403
Push-in type jumper bar; insulated; 3-way; Nominal current 18 A
2001-403
Item no.: 2001-404
Push-in type jumper bar; insulated; 4-way; Nominal current 18 A
2001-404
2001-1204
02.05.2019Page /5 10
Data sheet | Item number:2001-1204
Item no.: 2001-405
Push-in type jumper bar; insulated; 5-way; Nominal current 18 A
2001-405
Item no.: 2001-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2001-405
/011-000
Item no.: 2001-406
Push-in type jumper bar; insulated; 6-way; Nominal current 18 A
2001-406
Item no.: 2001-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block
2001-406
/020-000
Item no.: 2001-407
Push-in type jumper bar; insulated; 7-way; Nominal current 18 A
2001-407
Item no.: 2001-408
Push-in type jumper bar; insulated; 8-way; Nominal current 18 A
2001-408
Item no.: 2001-409
Push-in type jumper bar; insulated; 9-way; Nominal current 18 A
2001-409
Item no.: 2001-410
Push-in type jumper bar; insulated; 10-way; Nominal current 18 A
2001-410
Item no.: 2001-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 18 A
2001-433
Item no.: 2001-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 18 A
2001-434
Item no.: 2001-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 18 A
2001-435
Item no.: 2001-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 18 A
2001-436
Item no.: 2001-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 18 A
2001-437
Item no.: 2001-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 18 A
2001-438
Item no.: 2001-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 18 A
2001-439
Item no.: 2001-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 18 A
2001-440
Item no.: 2006-499
Step-down jumper; insulated; from 6/4 mm² to 4/2.5/1.5 mm²; Nominal current 32 A
2006-499
Item no.: 2009-412
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-412
Item no.: 2009-414
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-414
2001-1204
02.05.2019Page /6 10
Data sheet | Item number:2001-1204
Item no.: 2009-416
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks
2009-416
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-114
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
Item no.: 2009-114/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
/000-002
Item no.: 2009-114/000-005
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
/000-005
Item no.: 2009-114/000-006
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
/000-006
Item no.: 2009-114/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
/000-007
Item no.: 2009-114/000-012
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
/000-012
Item no.: 2009-114/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
/000-023
Item no.: 2009-114/000-024
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
/000-024
Item no.: 793-4501
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
Item no.: 793-4501/000-002
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-002
Item no.: 793-4501/000-005
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-005
Item no.: 793-4501/000-006
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-006
2001-1204
02.05.2019Page /7 10
Data sheet | Item number:2001-1204
Item no.: 793-4501/000-007
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-007
Item no.: 793-4501/000-012
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-012
Item no.: 793-4501/000-017
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-017
Item no.: 793-4501/000-023
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-023
Item no.: 793-4501/000-024
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
check
Item no.: 2001-511
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole
2001-511
2001-1204
02.05.2019Page /8 10
Data sheet | Item number:2001-1204
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole
Item no.: 2001-549
Spacer module; modular; e.g., for bridging commoned terminal blocks
2001-549
Item no.: 2001-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole
2001-552
Item no.: 2001-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole
2001-553
Item no.: 2001-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole
2001-554
Item no.: 2001-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole
2001-555
Item no.: 2001-556
Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole
2001-556
Item no.: 2001-557
Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole
2001-557
Item no.: 2001-558
Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole
2001-558
Item no.: 2001-559
Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole
2001-559
Item no.: 2001-560
Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole
2001-560
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm
2009-182
Protective Warning Marker
Item no.: 2001-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2001-115
ferrule
Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-241
Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-243
Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-244
tools
2001-1204
02.05.2019Page /9 10
Data sheet | Item number:2001-1204
Item no.: 210-647
Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short
210-647
Item no.: 210-648
Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled
210-648
Item no.: 210-719
Operating tool with partially insulated shaft; Type 1, blade (2.5 x 0.4) mm
210-719
Downloads
Documentation
Bid Text
2001-1204
Reihenklemmen, TOPJOB S
Apr 4, 2012 docx
15.0 kB
Download
Additional Information
pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 2001-1204 URL Download
2001-1204
Subject to changes.
02.05.2019Page /10 10
Loading...
