Wago 2001-1202 Data Sheet
Data sheet | Item number: 2001-1202

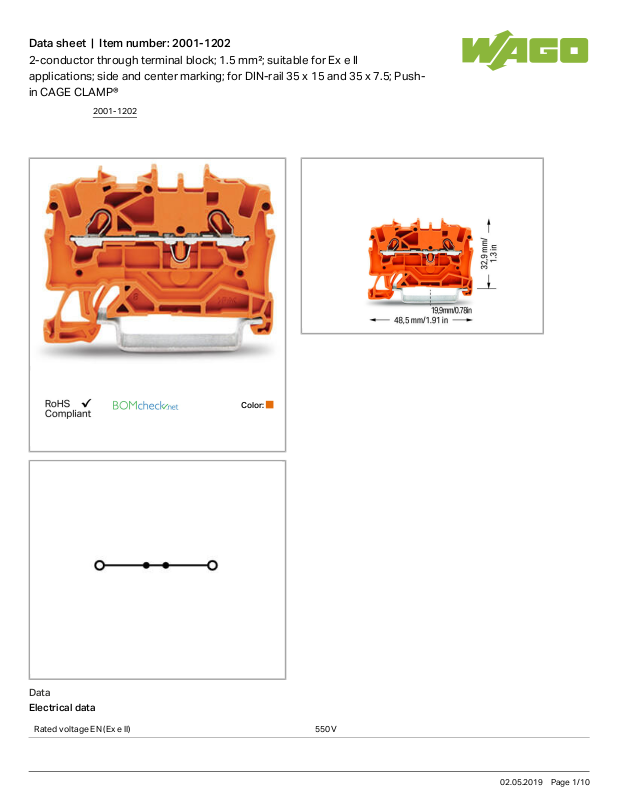

2-conductor through terminal block; 1.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Pushin CAGE CLAMP®
2001-1202
Color:
Data
Electrical data
Rated voltage EN (Ex e II) |
550V |
02.05.2019 Page 1/10
Data sheet | Item number: 2001-1202
2001-1202
Rated current (Ex e II)
Rated current (Ex e II) with jumper
Ratings per IEC/EN 60664-1
Rated voltage (III / 3)
Rated impulse voltage (III / 3)
Rated current
Rated current (2)
Approvals per UL 1059
Rated voltage UL (Use Group B)
Rated current UL (Use Group B)
Rated voltage UL (Use Group C)
Rated current UL (Use Group C)
Approvals per CSA
Rated voltage CSA (Use Group B)
Rated current CSA (Use Group B)
Rated voltage CSA (Use Group C)
Rated current CSA (Use Group C)
Connection data
Connection technology
Actuation type
Connectable conductor materials
Nominal cross section
Solid conductor
Solid conductor, push-in termination Fine-stranded conductor
Strip length
Note (conductor cross-section)
Total number of connection points Total number of potentials Number of levels
Type of wiring
Geometrical Data
Width
17A
16A
800V
8kV
18A
24A
600V
15A
600V
15A
600V
15A
600V
15A
Push-in CAGE CLAMP®
Push-in
Open Tool Slot
Copper
1.5 mm²
0.25 … 2.5 mm² / 22 … 14 AWG
0.75 … 2.5 mm² / 18 … 14 AWG
0.25 … 2.5 mm² / 22 … 14 AWG
9 … 11 mm / 0.35 … 0.43 inch
Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
2
1
1
Front-entry wiring
4.2 mm / 0.165 inch
02.05.2019 Page 2/10
Data sheet | Item number: 2001-1202
2001-1202 |
|
Height from upper-edge of DIN-35 rail |
32.9 mm / 1.295 inch |
Depth |
48.5 mm / 1.909 inch |
Mechanical data |
|
Design |
horizontal |
Type of mounting |
DIN-35 rail |
Marking level |
Center/side marking |
Material Data |
|
Color |
orange |
Insulating material |
Polyamide 66 (PA 66) |
Fire load |
0.074MJ |
Weight |
3.547g |
Commercial data |
|
Product Group |
22 (TOPJOB S) |
Country of origin |
DE |
GTIN |
4017332997300 |
Customs Tariff No. |
85369010000 |
Approvals / Certificates
Ex-Approvals |
|
|
Certificate |
|
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
AEx |
UL 60079 |
E185892 |
|
|
UL International Germany GmbH c/o Physikalisch |
|
sec.12 |
|
|
Technische Bundesanstalt |
|
|
|
|
ATEx |
EN 60079 |
PTB 05 |
|
|
Physikalisch Technische Bundesanstalt (PTB) |
|
ATEX |
|
|
|
|
1094 U (II |
|
|
|
|
2 G Ex e II |
|
|
|
|
bzw.I M 2 |
|
|
|
|
Ex e I) |
|
|
IECEx |
IEC 60079 |
IECEx PTB |
|
|
Physikalisch Technische Bundesanstalt (PTB) |
|
11.0093U |
|
|
|
|
(Ex e IIC |
|
|
|
|
Gb or Ex e |
|
|
|
|
I Mb) |
|
Country specific Approvals |
|
Certificate |
||
Logo |
Approval |
Additional Approval Text |
||
name |
||||
|
CCA |
EN 60947 |
NTR NL- |
|
02.05.2019 Page 3/10
