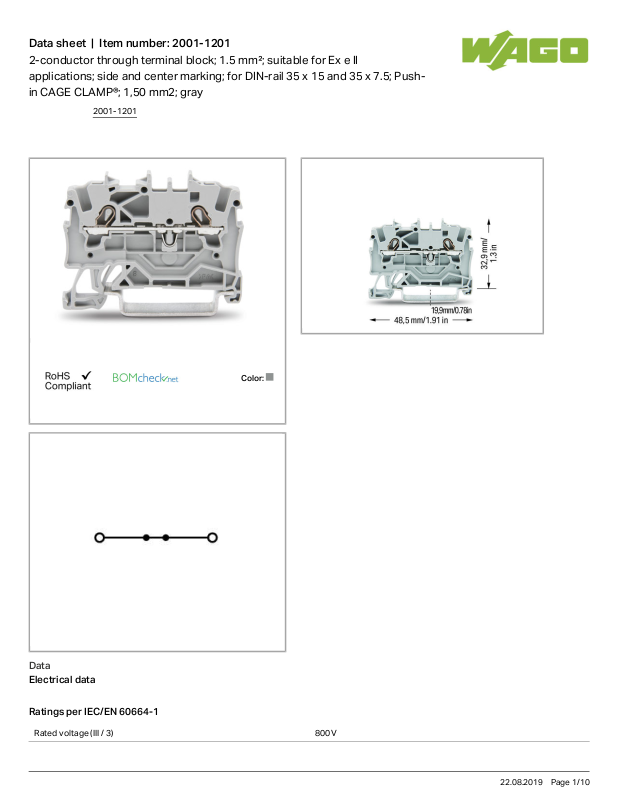

Data sheet | Item number:2001-1201
2-conductor through terminal block; 1.5 mm²; suitable for Ex e II
applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Pushin CAGE CLAMP®; 1,50 mm2; gray
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
2001-1201
22.08.2019Page /1 10
Data sheet | Item number:2001-1201
Rated impulse voltage (III / 3) 8 kV
Rated current 18 A
Rated current (2) 24 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 15 A
Approvals per CSA
Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 15 A
Rated voltage CSA (Use Group C) 600V
Rated current CSA (Use Group C) 15 A
Approvals Ex
Rated voltage EN (Ex e II) 550 V
Rated current (Ex e II) 17 A
Rated current (Ex e II) with jumper 16 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 1.5mm²
Solid conductor 0.25 2.5mm²/ 22 14AWG
Solid conductor, push-in termination 0.75 2.5mm²/ 18 14AWG
Fine-stranded conductor 0.25 2.5mm²/ 22 14AWG
Strip length 9 11mm/ 0.35 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Number of jumper slots 2
2001-1201
22.08.2019Page /2 10
Data sheet | Item number:2001-1201
Geometrical Data
Width 4.2mm/ 0.165inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 48.5mm/ 1.909inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Weight 3.931g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4017332997287
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 05
ATEX
1094 U (II
2 G Ex e II
bzw.I M 2
Ex e I)
IECEx
Physikalisch Technische Bundesanstalt (PTB)
IEC 60079 IECEx PTB
11.0093U
(Ex e IIC
Gb or Ex e
I Mb)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 2160584.07
2001-1201
22.08.2019Page /3 10
Data sheet | Item number:2001-1201
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7084
CSA
DEKRA Certification B.V.
C22.2 No. 158 1645434
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Germany GmbH
UL 1059 20190731-
E45172
Compatible products
Jumper
2001-1201
22.08.2019Page /4 10
Data sheet | Item number:2001-1201
Item no.: 2001-402
Push-in type jumper bar; insulated; 2-way; Nominal current 18 A; light gray
2001-402
Item no.: 2001-403
Push-in type jumper bar; insulated; 3-way; Nominal current 18 A; light gray
2001-403
Item no.: 2001-404
Push-in type jumper bar; insulated; 4-way; Nominal current 18 A; light gray
2001-404
Item no.: 2001-405
Push-in type jumper bar; insulated; 5-way; Nominal current 18 A; light gray
2001-405
Item no.: 2001-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block; light gray
2001-405
/011-000
Item no.: 2001-406
Push-in type jumper bar; insulated; 6-way; Nominal current 18 A; light gray
2001-406
Item no.: 2001-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block; light gray
2001-406
/020-000
Item no.: 2001-407
Push-in type jumper bar; insulated; 7-way; Nominal current 18 A; light gray
2001-407
Item no.: 2001-408
Push-in type jumper bar; insulated; 8-way; Nominal current 18 A; light gray
2001-408
Item no.: 2001-409
Push-in type jumper bar; insulated; 9-way; Nominal current 18 A; light gray
2001-409
Item no.: 2001-410
Push-in type jumper bar; insulated; 10-way; Nominal current 18 A; light gray
2001-410
Item no.: 2001-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 18 A; light gray
2001-433
Item no.: 2001-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 18 A; light gray
2001-434
Item no.: 2001-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 18 A; light gray
2001-435
Item no.: 2001-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 18 A; light gray
2001-436
Item no.: 2001-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 18 A; light gray
2001-437
Item no.: 2001-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 18 A; light gray
2001-438
Item no.: 2001-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 18 A; light gray
2001-439
Item no.: 2001-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 18 A; light gray
2001-440
2001-1201
22.08.2019Page /5 10
Data sheet | Item number:2001-1201
Item no.: 2006-499
Step-down jumper; insulated; from 6/4 mm² to 4/2.5/1.5 mm²; Nominal current 32 A; light gray
2006-499
Item no.: 2009-412
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; black
2009-412
Item no.: 2009-414
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; black
2009-414
Item no.: 2009-416
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; black
2009-416
Item no.: 210-103
Wire commoning chain; insulated; 50 connections; black
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
ferrule
Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; white
216-241
Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray
216-242
Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; red
216-243
Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; black
216-244
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type; white
2009-110
Item no.: 2009-114
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; white
2009-114
Item no.: 2009-114/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; yellow
2009-114
/000-002
Item no.: 2009-114/000-005
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; red
2009-114
/000-005
Item no.: 2009-114/000-006
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; blue
2009-114
/000-006
Item no.: 2009-114/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; gray
2009-114
/000-007
2001-1201
22.08.2019Page /6 10
Data sheet | Item number:2001-1201
Item no.: 2009-114/000-012
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; orange
2009-114
/000-012
Item no.: 2009-114/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; green
2009-114
/000-023
Item no.: 2009-114/000-024
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; violet
2009-114
/000-024
Item no.: 793-4501
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; white
793-4501
Item no.: 793-4501/000-002
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; yellow
793-4501
/000-002
Item no.: 793-4501/000-005
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; red
793-4501
/000-005
Item no.: 793-4501/000-006
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; blue
793-4501
/000-006
Item no.: 793-4501/000-007
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; gray
793-4501
/000-007
Item no.: 793-4501/000-012
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; orange
793-4501
/000-012
Item no.: 793-4501/000-017
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; light green
793-4501
/000-017
Item no.: 793-4501/000-023
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; green
793-4501
/000-023
Item no.: 793-4501/000-024
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; violet
793-4501
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-005
2001-1201
22.08.2019Page /7 10
Data sheet | Item number:2001-1201
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-024
Protective Warning Marker
Item no.: 2001-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks; yellow
2001-115
Insulation stop
Item no.: 2001-171
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip; light gray
2001-171
tools
Item no.: 210-647
Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft
210-647
Item no.: 210-648
Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled
210-648
Item no.: 210-719
Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft
210-719
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
2001-1201
22.08.2019Page /8 10
Data sheet | Item number:2001-1201
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silvercolored
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715; coppercolored
210-198
End plate
Item no.: 2002-1291
End and intermediate plate; 0.8 mm thick; gray
2002-1291
Item no.: 2002-1292
End and intermediate plate; 0.8 mm thick; orange
2002-1292
Item no.: 2002-1293
Separator plate; 2 mm thick; oversized; gray
2002-1293
Item no.: 2002-1294
Separator plate; 2 mm thick; oversized; orange
2002-1294
Item no.: 209-190
Separator for Ex e/Ex i applications; 3 mm thick; 90 mm wide; orange
209-190
Item no.: 209-191
Separator for Ex e/Ex i applications; 3 mm thick; 120 mm wide; orange
209-191
check
Item no.: 2001-511
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole; 1,50 mm2; gray
2001-511
Item no.: 2001-549
Spacer module; modular; e.g., for bridging commoned terminal blocks; gray
2001-549
Item no.: 2001-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole; 1,50 mm2; gray
2001-552
Item no.: 2001-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole; 1,50 mm2; gray
2001-553
Item no.: 2001-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole; 1,50 mm2; gray
2001-554
Item no.: 2001-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole; 1,50 mm2; gray
2001-555
Item no.: 2001-556
Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole; 1,50 mm2; gray
2001-556
Item no.: 2001-557
Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole; 1,50 mm2; gray
2001-557
Item no.: 2001-558
Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole; 1,50 mm2; gray
2001-558
Item no.: 2001-559
Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole; 1,50 mm2; gray
2001-559
2001-1201
22.08.2019Page /9 10
Data sheet | Item number:2001-1201
Item no.: 2001-560
Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole; 1,50 mm2; gray
2001-560
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks; gray
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm; gray
2009-182
Downloads
Documentation
Bid Text
2001-1201
Reihenklemmen, TOPJOB S
Apr 4, 2012 docx
14.9 kB
Download
Additional Information
Technical explanations Apr 3, 2019 pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 2001-1201 URL Download
EPLAN
EPLAN Data Portal Download
WSCAD
WSCAD Universe Download
2001-1201
Subject to changes.
22.08.2019Page /10 10
Loading...
