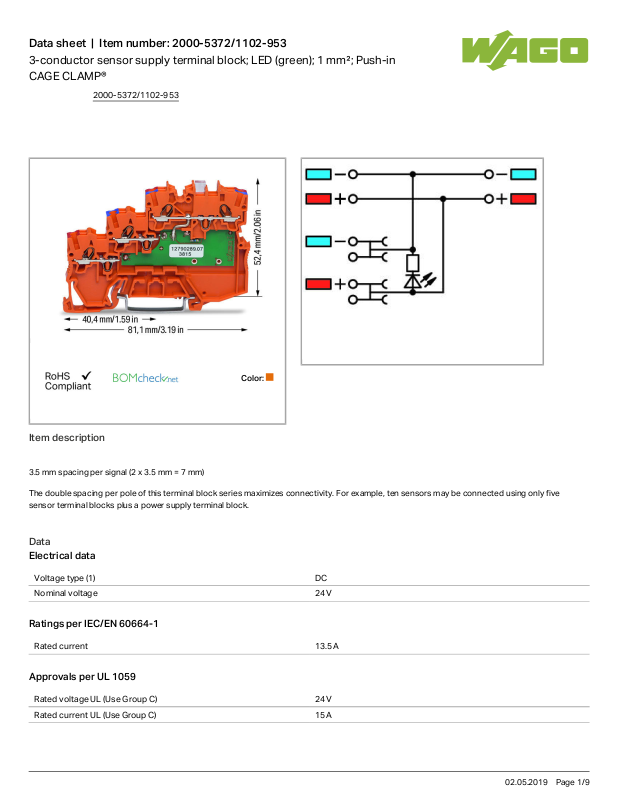

Approvals per CSA
Rated voltage CSA (Use Group C) 24 V
Rated current CSA (Use Group C) 10 A
Connection data
Fine-stranded conductor with ferrule, push-in termination, from 0.5 mm² / 20 AWG
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Operating tool
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG
Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG
Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Solid conductor (2) 0.25 … 4mm²/ 22 … 12AWG
Solid conductor, push-in termination (2) 0.25 … 4mm²/ 22 … 12AWG
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 8
Total number of potentials 4
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 7mm/ 0.276inch
Height from upper-edge of DIN-35 rail 52.4mm/ 2.063inch
Depth 81.1mm/ 3.193inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color orange
Insulating material Polyamide 66 (PA 66)
Fire load 0 MJ
Weight 16.091g
