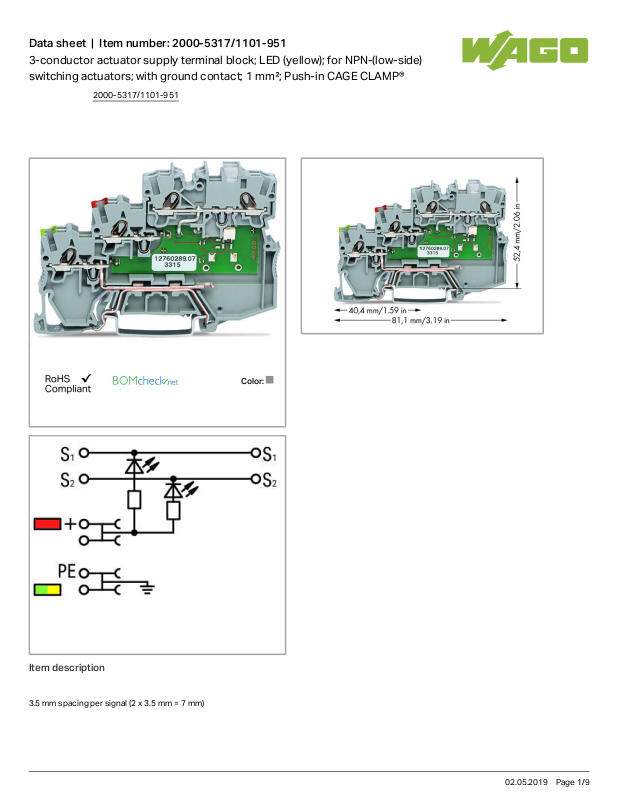

Wago 2000-5317/1101-951 Data Sheet

Data sheet | Item number:2000-5317/1101-951

3-conductor actuator supply terminal block; LED (yellow); for NPN-(low-side)
switching actuators; with ground contact; 1 mm²; Push-in CAGE CLAMP®

Color:

Item description

3.5 mm spacing per signal (2 x 3.5 mm = 7 mm)

2000-5317/1101-951

02.05.2019Page /1 9

Data sheet | Item number:2000-5317/1101-951

The double spacing per pole of this terminal block series maximizes connectivity. For example, ten sensors may be connected using only five
sensor terminal blocks plus a power supply terminal block.

Data

Electrical data

Voltage type (1) DC

Nominal voltage 24 V

Ratings per IEC/EN 60664-1

Rated current 13.5 A

Approvals per CSA

Rated voltage CSA (Use Group C) 24 V

Rated current CSA (Use Group C) 10 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 1mm²

Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG

Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG

Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG

Strip length 9 … 11mm/ 0.35 … 0.43inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 8

Total number of potentials 4

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 7mm/ 0.276inch

Height from upper-edge of DIN-35 rail 52.4mm/ 2.063inch

Depth 81.1mm/ 3.193inch

Mechanical data

Design horizontal

2000-5317/1101-951

02.05.2019Page /2 9

Data sheet | Item number:2000-5317/1101-951

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0 MJ

Weight 19.278g

Commercial data

Country of origin DE

GTIN 4055143452861

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 71-

102841

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7671

Compatible products

Protective Warning Marker

Item no.: 2000-115

Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks

2000-115

Marking accessories

Item no.: 2009-110

Marking strips; on reel; not stretchable; plain; snap-on type

2009-110

2000-5317/1101-951

02.05.2019Page /3 9
