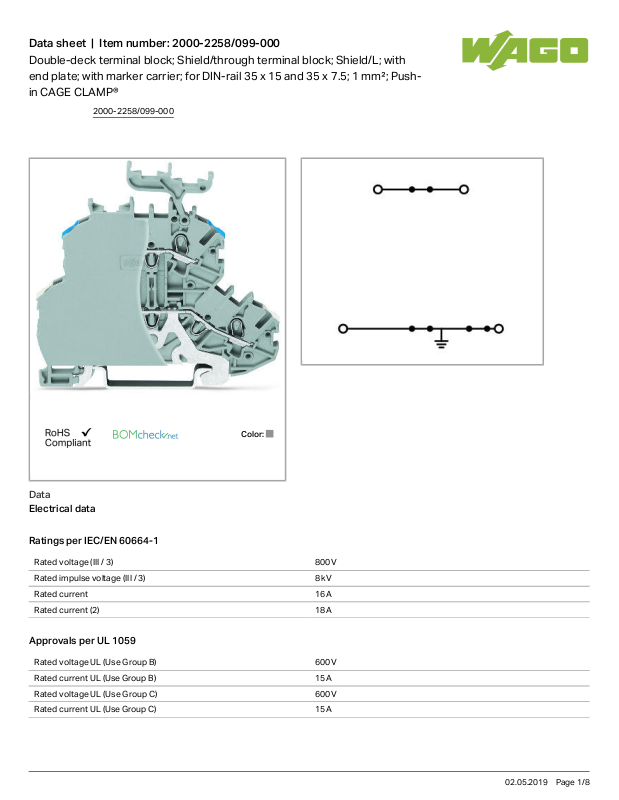

Wago 2000-2258/099-000 Data Sheet

Data sheet | Item number:2000-2258/099-000

Double-deck terminal block; Shield/through terminal block; Shield/L; with
end plate; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 1 mm²; Push­in CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 16 A

Rated current (2) 18 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 15 A

2000-2258/099-000

02.05.2019Page /1 8

Data sheet | Item number:2000-2258/099-000

Connection data

Connection technology

Push-in CAGE CLAMP

®

Number of connection points (connection type) 2

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 1mm²

Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG

Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG

Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG

Strip length 9 … 11mm/ 0.35 … 0.43inch

Number of connection points 2

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 2

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 4.2mm/ 0.165inch

Height from upper-edge of DIN-35 rail 61.8mm/ 2.433inch

Depth 69.7mm/ 2.744inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking Schirm/L

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.214 MJ

Weight 11.838g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4050821037774

2000-2258/099-000

02.05.2019Page /2 8

Data sheet | Item number:2000-2258/099-000

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 71-102841

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7671

CCA

DEKRA Certification B.V.

NTR NL
7518

CCA

DEKRA Certification B.V.

2192406.01

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 E45172

sec.55

Compatible products

2000-2258/099-000

02.05.2019Page /3 8

Data sheet | Item number:2000-2258/099-000

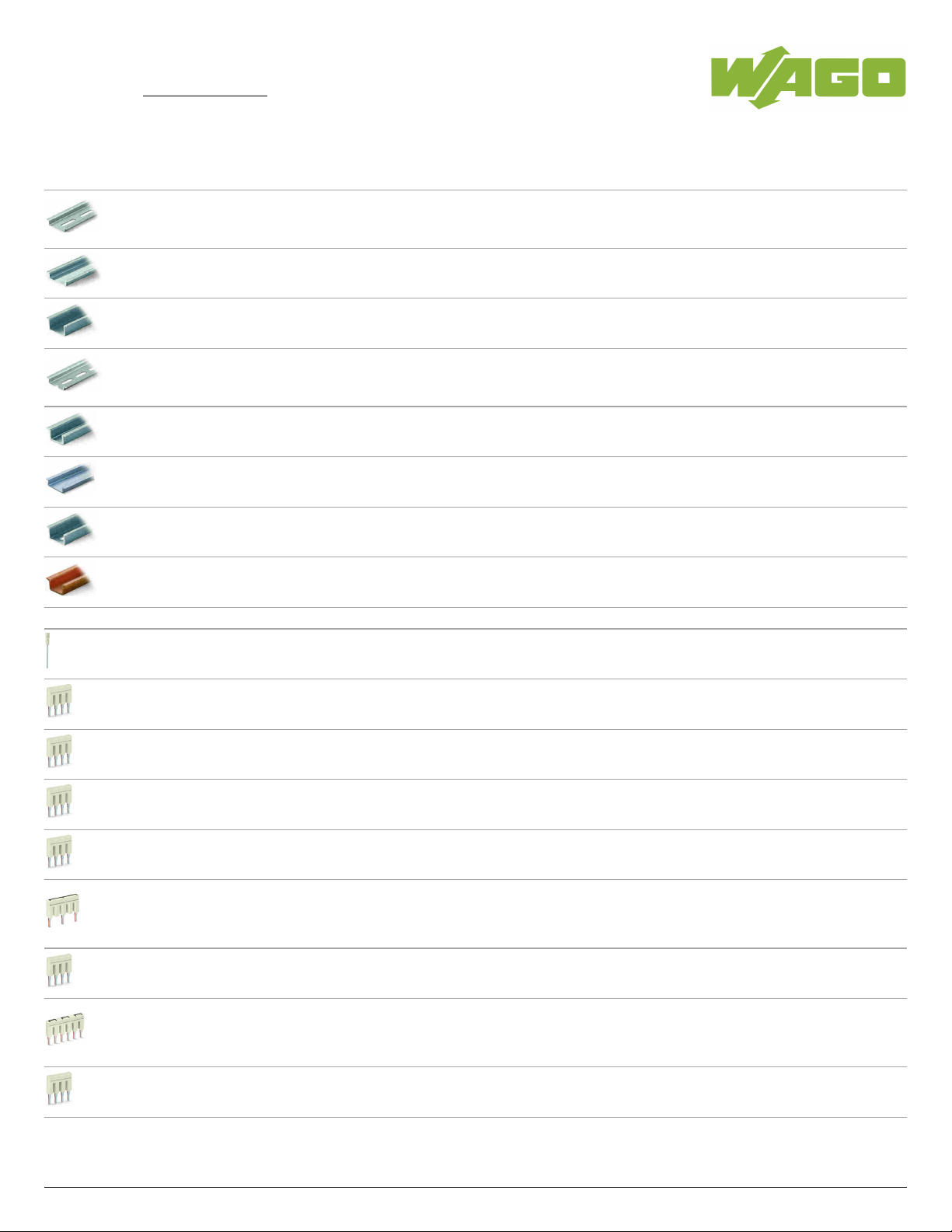

Carrier rail

Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width
25 mm

210-112

Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113

Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width
18 mm

210-115

Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118

Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715

210-196

Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715

210-197

Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-198

Jumper

Item no.: 2000-492

Double-deck vertical jumper; insulated

2000-492

Item no.: 2001-402

Push-in type jumper bar; insulated; 2-way; Nominal current 18 A

2001-402

Item no.: 2001-403

Push-in type jumper bar; insulated; 3-way; Nominal current 18 A

2001-403

Item no.: 2001-404

Push-in type jumper bar; insulated; 4-way; Nominal current 18 A

2001-404

Item no.: 2001-405

Push-in type jumper bar; insulated; 5-way; Nominal current 18 A

2001-405

Item no.: 2001-405/011-000

Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block

2001-405

/011-000

Item no.: 2001-406

Push-in type jumper bar; insulated; 6-way; Nominal current 18 A

2001-406

Item no.: 2001-406/020-000

Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block

2001-406

/020-000

Item no.: 2001-407

Push-in type jumper bar; insulated; 7-way; Nominal current 18 A

2001-407

2000-2258/099-000

02.05.2019Page /4 8

Data sheet | Item number:2000-2258/099-000

Item no.: 2001-408

Push-in type jumper bar; insulated; 8-way; Nominal current 18 A

2001-408

Item no.: 2001-409

Push-in type jumper bar; insulated; 9-way; Nominal current 18 A

2001-409

Item no.: 2001-410

Push-in type jumper bar; insulated; 10-way; Nominal current 18 A

2001-410

Item no.: 2001-433

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 18 A

2001-433

Item no.: 2001-434

Push-in type jumper bar; insulated; from 1 to 4; Nominal current 18 A

2001-434

Item no.: 2001-435

Push-in type jumper bar; insulated; from 1 to 5; Nominal current 18 A

2001-435

Item no.: 2001-436

Push-in type jumper bar; insulated; from 1 to 6; Nominal current 18 A

2001-436

Item no.: 2001-437

Push-in type jumper bar; insulated; from 1 to 7; Nominal current 18 A

2001-437

Item no.: 2001-438

Push-in type jumper bar; insulated; from 1 to 8; Nominal current 18 A

2001-438

Item no.: 2001-439

Push-in type jumper bar; insulated; from 1 to 9; Nominal current 18 A

2001-439

Item no.: 2001-440

Push-in type jumper bar; insulated; from 1 to 10; Nominal current 18 A

2001-440

Item no.: 2009-402
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks

2009-402

Item no.: 2009-404
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks

2009-404

Item no.: 2009-406
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks

2009-406

Item no.: 210-103

Wire commoning chain; insulated; 50 connections

210-103

Item no.: 210-123

Wire commoning chain; insulated; 50 connections

210-123

General accessories

Item no.: 2000-121
Adaptor

2000-121

check

Item no.: 2000-510
TOPJOB®S L-type test plug module; modular; for jumper contact slot

2000-510

Item no.: 2000-511
TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1-pole

2000-511

2000-2258/099-000

02.05.2019Page /5 8

Data sheet | Item number:2000-2258/099-000

Item no.: 2000-549
Spacer module; modular; e.g., for bridging commoned terminal blocks

2000-549

Item no.: 2000-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole

2000-552

Item no.: 2000-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole

2000-553

Item no.: 2000-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole

2000-554

Item no.: 2000-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole

2000-555

Item no.: 2000-556
Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole

2000-556

Item no.: 2000-557
Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole

2000-557

Item no.: 2000-558
Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole

2000-558

Item no.: 2000-559
Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole

2000-559

Item no.: 2000-560
Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole

2000-560

Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks

2009-174

Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm

2009-182

Item no.: 210-136

Test plug; 2 mm Ø; with 500 mm cable

210-136

Item no.: 210-137

Test plug; 2.3 mm Ø; with 500 mm cable

210-137

ferrule

Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-241

Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-242

Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-243

Marking accessories

Item no.: 2009-110

Marking strips; on reel; not stretchable; plain; snap-on type

2009-110

Item no.: 2009-113

2000-2258/099-000

02.05.2019Page /6 8

Data sheet | Item number:2000-2258/099-000

WMB-Inline; for Smart Printer; on reel; plain; snap-on type 2009-113

Item no.: 2009-113/000-002

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-002

Item no.: 2009-113/000-005

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-005

Item no.: 2009-113/000-006

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-006

Item no.: 2009-113/000-007

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-007

Item no.: 2009-113/000-012

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-012

Item no.: 2009-113/000-017

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-017

Item no.: 2009-113/000-023

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-023

Item no.: 2009-113/000-024

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-024

Item no.: 793-3501

WMB marking card; as card; plain; snap-on type

793-3501

Protective Warning Marker

Item no.: 2001-115

Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks

2001-115

tools

Item no.: 210-647
Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short

210-647

Item no.: 210-648
Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled

210-648

Item no.: 210-719
Operating tool with partially insulated shaft; Type 1, blade (2.5 x 0.4) mm

210-719

Downloads

Documentation

Bid Text

2000-2258/099-000

02.05.2019Page /7 8

Data sheet | Item number:2000-2258/099-000

2000-2258/099-000

docx

15.3 kB

Download

Additional Information

pdf

2.1 MB

Download

CAD/CAE - Smart Data

CAD data

3D Download 2000-2258/099-000 URL Download



2000-2258/099-000

Subject to changes.

02.05.2019Page /8 8
