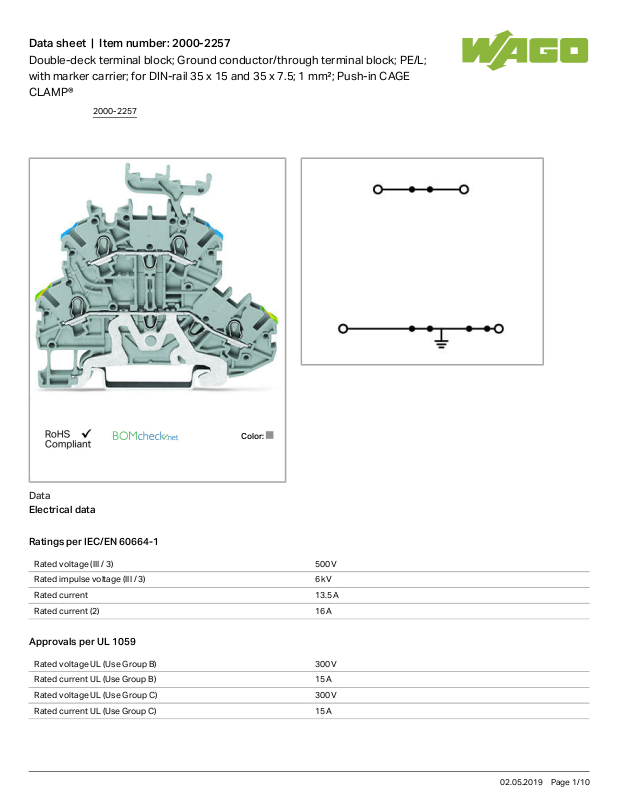

Data sheet | Item number:2000-2257
Double-deck terminal block; Ground conductor/through terminal block; PE/L;
with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 1 mm²; Push-in CAGE
CLAMP®
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 13.5 A
Rated current (2) 16 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A
2000-2257
02.05.2019Page /1 10
Data sheet | Item number:2000-2257
Connection data
Connection technology
Push-in CAGE CLAMP
®
Number of connection points (connection type) 2
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG
Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG
Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Number of connection points 2
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring
Geometrical Data
Width 3.5mm/ 0.138inch
Height from upper-edge of DIN-35 rail 61.8mm/ 2.433inch
Depth 69.7mm/ 2.744inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Potential marking PE/L
Marking level Center/side marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.152 MJ
Weight 9.71g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin CN
GTIN 4055143274104
2000-2257
02.05.2019Page /2 10
Data sheet | Item number:2000-2257
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
ATEX
Physikalisch Technische Bundesanstalt
EN 60079 PTB 11
ATEX
1041 U (II
2 G Ex e
IIC GB / I
M 2 Ex e I
Mb)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 71-102841
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7671
CCA
DEKRA Certification B.V.
NTR NL
7518
CCA
DEKRA Certification B.V.
2192406.01
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Germany GmbH
UL 1059 E45172
sec.55
2000-2257
02.05.2019Page /3 10
Data sheet | Item number:2000-2257
Compatible products
End plate
Item no.: 2000-2291
End and intermediate plate; 0.7 mm thick
2000-
2291
Item no.: 2000-2292
End and intermediate plate; 0.7 mm thick
2000-
2292
tools
Item no.: 210-647
Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short
210-647
Item no.: 210-648
Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled
210-648
Item no.: 210-719
Operating tool with partially insulated shaft; Type 1, blade (2.5 x 0.4) mm
210-719
Jumper
Item no.: 2000-402
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
Item no.: 2000-402/000-005
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-005
Item no.: 2000-402/000-006
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-006
Item no.: 2000-402/000-018
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-018
Item no.: 2000-403
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
Item no.: 2000-403/000-005
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
/000-005
Item no.: 2000-403/000-006
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
/000-006
2000-2257
02.05.2019Page /4 10
Data sheet | Item number:2000-2257
Item no.: 2000-404
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
Item no.: 2000-404/000-005
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
/000-005
Item no.: 2000-404/000-006
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
/000-006
Item no.: 2000-405
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
Item no.: 2000-405/000-005
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
/000-005
Item no.: 2000-405/000-006
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
/000-006
Item no.: 2000-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2000-405
/011-000
Item no.: 2000-406
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
Item no.: 2000-406/000-005
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
/000-005
Item no.: 2000-406/000-006
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
/000-006
Item no.: 2000-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block
2000-406
/020-000
Item no.: 2000-407
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
Item no.: 2000-407/000-005
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
/000-005
Item no.: 2000-407/000-006
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
/000-006
Item no.: 2000-408
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
Item no.: 2000-408/000-005
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
/000-005
2000-2257
02.05.2019Page /5 10
Data sheet | Item number:2000-2257
Item no.: 2000-408/000-006
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
/000-006
Item no.: 2000-409
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
Item no.: 2000-409/000-005
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
/000-005
Item no.: 2000-409/000-006
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
/000-006
Item no.: 2000-410
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
Item no.: 2000-410/000-005
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
/000-005
Item no.: 2000-410/000-006
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
/000-006
Item no.: 2000-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
Item no.: 2000-433/000-005
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
/000-005
Item no.: 2000-433/000-006
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
/000-006
Item no.: 2000-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 14 A
2000-434
Item no.: 2000-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 14 A
2000-435
Item no.: 2000-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 14 A
2000-436
Item no.: 2000-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 14 A
2000-437
Item no.: 2000-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 14 A
2000-438
Item no.: 2000-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 14 A
2000-439
Item no.: 2000-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 14 A
2000-440
2000-2257
02.05.2019Page /6 10
Data sheet | Item number:2000-2257
Item no.: 2000-492
Double-deck vertical jumper; insulated
2000-492
Item no.: 2009-402
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-402
Item no.: 2009-404
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-404
Item no.: 2009-406
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-406
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-113
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
Item no.: 2009-113/000-002
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-002
Item no.: 2009-113/000-005
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-005
Item no.: 2009-113/000-006
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-006
Item no.: 2009-113/000-007
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-007
Item no.: 2009-113/000-012
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-012
Item no.: 2009-113/000-017
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-017
Item no.: 2009-113/000-023
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-023
Item no.: 2009-113/000-024
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-024
2000-2257
02.05.2019Page /7 10
Data sheet | Item number:2000-2257
Item no.: 793-3501
WMB marking card; as card; plain; snap-on type
793-3501
General accessories
Item no.: 2000-121
Adaptor
2000-121
check
Item no.: 2000-510
TOPJOB®S L-type test plug module; modular; for jumper contact slot
2000-510
Item no.: 2000-511
TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1-pole
2000-511
Item no.: 2000-549
Spacer module; modular; e.g., for bridging commoned terminal blocks
2000-549
Item no.: 2000-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole
2000-552
Item no.: 2000-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole
2000-553
Item no.: 2000-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole
2000-554
Item no.: 2000-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole
2000-555
Item no.: 2000-556
Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole
2000-556
Item no.: 2000-557
Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole
2000-557
Item no.: 2000-558
Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole
2000-558
Item no.: 2000-559
Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole
2000-559
Item no.: 2000-560
Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole
2000-560
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm
2009-182
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable
210-136
Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable
210-137
ferrule
Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
216-241
2000-2257
02.05.2019Page /8 10
Data sheet | Item number:2000-2257
crimped; acc. to DIN 46228, Part 4/09.90
Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-243
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width
25 mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width
18 mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Protective Warning Marker
Item no.: 2000-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2000-115
Downloads
Documentation
Bid Text
2000-2257 docx
15.0 kB
Download
Additional Information
pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
2000-2257
02.05.2019Page /9 10
Data sheet | Item number:2000-2257
3D Download 2000-2257
URL Download
2000-2257
Subject to changes.
02.05.2019Page /10 10
Loading...
