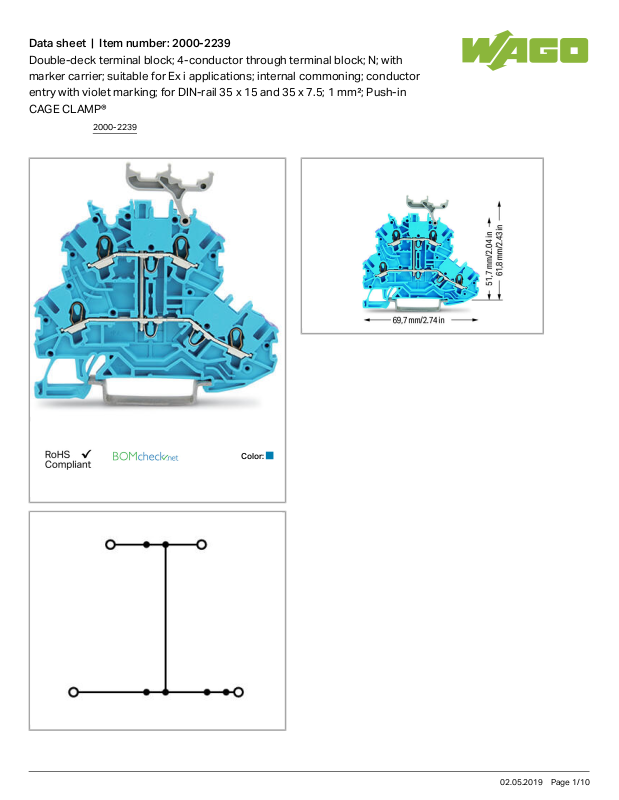

Wago 2000-2239 Data Sheet

Data sheet | Item number:2000-2239

Double-deck terminal block; 4-conductor through terminal block; N; with
marker carrier; suitable for Ex i applications; internal commoning; conductor
entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 1 mm²; Push-in
CAGE CLAMP®

Color:

2000-2239

02.05.2019Page /1 10

Data sheet | Item number:2000-2239

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 13.5 A

Rated current (2) 16 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 15 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 10 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 10 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 1mm²

Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG

Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG

Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG

Strip length 9 … 11mm/ 0.35 … 0.43inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 1

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 3.5mm/ 0.138inch

2000-2239

02.05.2019Page /2 10

Data sheet | Item number:2000-2239

Height from upper-edge of DIN-35 rail 61.8mm/ 2.433inch

Depth 69.7mm/ 2.744inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking N

Marking level Center/side marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Fire load 0.165 MJ

Weight 7.98g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin CN

GTIN 4055143267663

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

Physikalisch Technische Bundesanstalt

EN 60079 PTB 11

ATEX
1041 U (II
2 G Ex e
IIC GB / I
M 2 Ex e I
Mb)

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 71-102841

2000-2239

02.05.2019Page /3 10

Data sheet | Item number:2000-2239

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7671

CCA

DEKRA Certification B.V.

NTR NL
7518

CCA

DEKRA Certification B.V.

2192406.01

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 E45172

sec.55

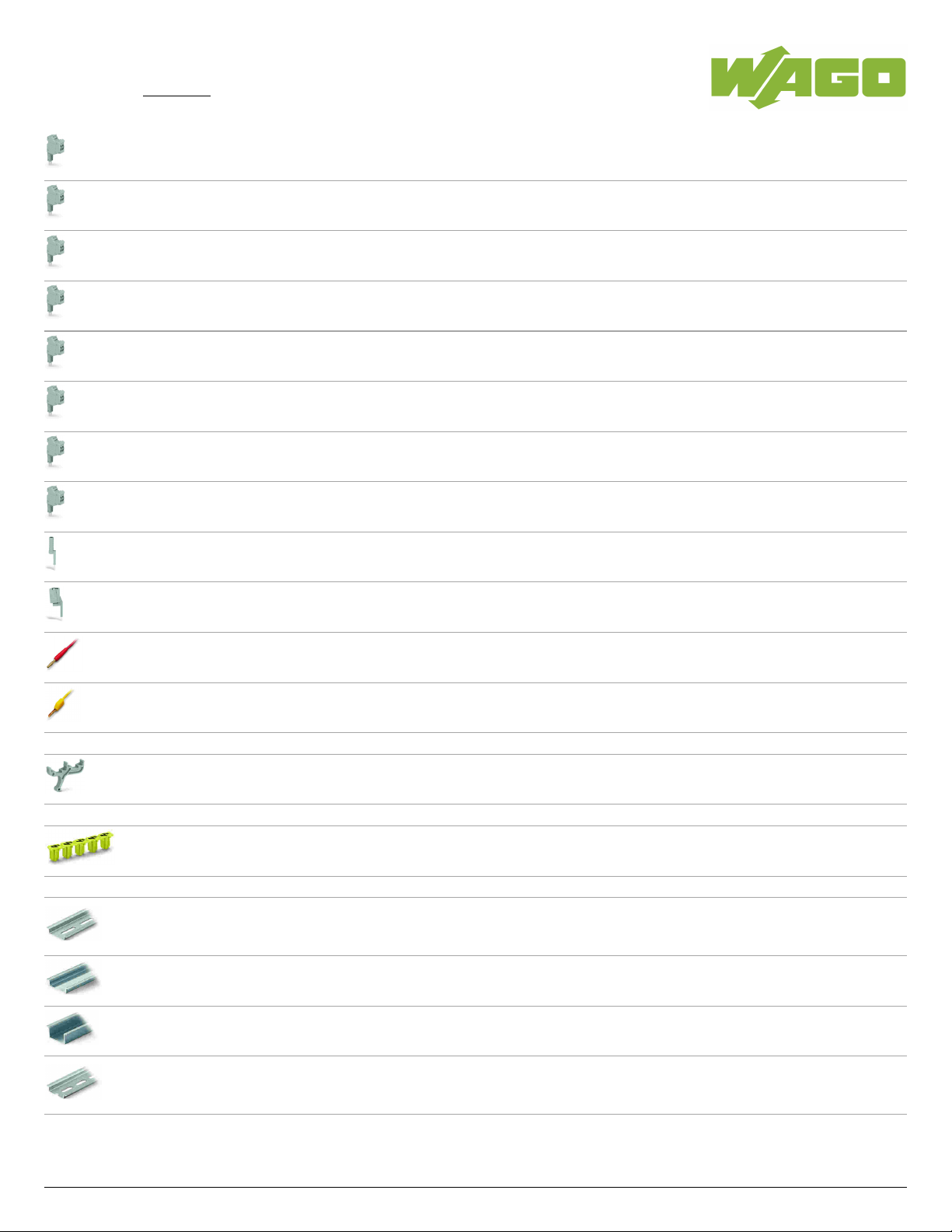

Compatible products

Jumper

Item no.: 2000-402

Push-in type jumper bar; insulated; 2-way; Nominal current 14 A

2000-402

Item no.: 2000-402/000-005

Push-in type jumper bar; insulated; 2-way; Nominal current 14 A

2000-402

/000-005

Item no.: 2000-402/000-006

Push-in type jumper bar; insulated; 2-way; Nominal current 14 A

2000-402

/000-006

Item no.: 2000-402/000-018

Push-in type jumper bar; insulated; 2-way; Nominal current 14 A

2000-402

/000-018

Item no.: 2000-403

Push-in type jumper bar; insulated; 3-way; Nominal current 14 A

2000-403

2000-2239

02.05.2019Page /4 10

Data sheet | Item number:2000-2239

Item no.: 2000-403/000-005

Push-in type jumper bar; insulated; 3-way; Nominal current 14 A

2000-403

/000-005

Item no.: 2000-403/000-006

Push-in type jumper bar; insulated; 3-way; Nominal current 14 A

2000-403

/000-006

Item no.: 2000-404

Push-in type jumper bar; insulated; 4-way; Nominal current 14 A

2000-404

Item no.: 2000-404/000-005

Push-in type jumper bar; insulated; 4-way; Nominal current 14 A

2000-404

/000-005

Item no.: 2000-404/000-006

Push-in type jumper bar; insulated; 4-way; Nominal current 14 A

2000-404

/000-006

Item no.: 2000-405

Push-in type jumper bar; insulated; 5-way; Nominal current 14 A

2000-405

Item no.: 2000-405/000-005

Push-in type jumper bar; insulated; 5-way; Nominal current 14 A

2000-405

/000-005

Item no.: 2000-405/000-006

Push-in type jumper bar; insulated; 5-way; Nominal current 14 A

2000-405

/000-006

Item no.: 2000-405/011-000

Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block

2000-405

/011-000

Item no.: 2000-406

Push-in type jumper bar; insulated; 6-way; Nominal current 14 A

2000-406

Item no.: 2000-406/000-005

Push-in type jumper bar; insulated; 6-way; Nominal current 14 A

2000-406

/000-005

Item no.: 2000-406/000-006

Push-in type jumper bar; insulated; 6-way; Nominal current 14 A

2000-406

/000-006

Item no.: 2000-406/020-000

Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block

2000-406

/020-000

Item no.: 2000-407

Push-in type jumper bar; insulated; 7-way; Nominal current 14 A

2000-407

Item no.: 2000-407/000-005

Push-in type jumper bar; insulated; 7-way; Nominal current 14 A

2000-407

/000-005

Item no.: 2000-407/000-006

Push-in type jumper bar; insulated; 7-way; Nominal current 14 A

2000-407

/000-006

2000-2239

02.05.2019Page /5 10

Data sheet | Item number:2000-2239

Item no.: 2000-408

Push-in type jumper bar; insulated; 8-way; Nominal current 14 A

2000-408

Item no.: 2000-408/000-005

Push-in type jumper bar; insulated; 8-way; Nominal current 14 A

2000-408

/000-005

Item no.: 2000-408/000-006

Push-in type jumper bar; insulated; 8-way; Nominal current 14 A

2000-408

/000-006

Item no.: 2000-409

Push-in type jumper bar; insulated; 9-way; Nominal current 14 A

2000-409

Item no.: 2000-409/000-005

Push-in type jumper bar; insulated; 9-way; Nominal current 14 A

2000-409

/000-005

Item no.: 2000-409/000-006

Push-in type jumper bar; insulated; 9-way; Nominal current 14 A

2000-409

/000-006

Item no.: 2000-410

Push-in type jumper bar; insulated; 10-way; Nominal current 14 A

2000-410

Item no.: 2000-410/000-005

Push-in type jumper bar; insulated; 10-way; Nominal current 14 A

2000-410

/000-005

Item no.: 2000-410/000-006

Push-in type jumper bar; insulated; 10-way; Nominal current 14 A

2000-410

/000-006

Item no.: 2000-433

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A

2000-433

Item no.: 2000-433/000-005

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A

2000-433

/000-005

Item no.: 2000-433/000-006

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A

2000-433

/000-006

Item no.: 2000-434

Push-in type jumper bar; insulated; from 1 to 4; Nominal current 14 A

2000-434

Item no.: 2000-435

Push-in type jumper bar; insulated; from 1 to 5; Nominal current 14 A

2000-435

Item no.: 2000-436

Push-in type jumper bar; insulated; from 1 to 6; Nominal current 14 A

2000-436

Item no.: 2000-437

Push-in type jumper bar; insulated; from 1 to 7; Nominal current 14 A

2000-437

Item no.: 2000-438

Push-in type jumper bar; insulated; from 1 to 8; Nominal current 14 A

2000-438

2000-2239

02.05.2019Page /6 10

Data sheet | Item number:2000-2239

Item no.: 2000-439

Push-in type jumper bar; insulated; from 1 to 9; Nominal current 14 A

2000-439

Item no.: 2000-440

Push-in type jumper bar; insulated; from 1 to 10; Nominal current 14 A

2000-440

Item no.: 2000-492

Double-deck vertical jumper; insulated

2000-492

Item no.: 2009-402
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks

2009-402

Item no.: 2009-404
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks

2009-404

Item no.: 2009-406
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks

2009-406

Item no.: 210-103

Wire commoning chain; insulated; 50 connections

210-103

Item no.: 210-123

Wire commoning chain; insulated; 50 connections

210-123

tools

Item no.: 210-647

Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short

210-647

Item no.: 210-648

Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled

210-648

Item no.: 210-719

Operating tool with partially insulated shaft; Type 1, blade (2.5 x 0.4) mm

210-719

ferrule

Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-241

Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-242

Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-243

check

Item no.: 2000-510

TOPJOB®S L-type test plug module; modular; for jumper contact slot

2000-510

Item no.: 2000-511

TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1-pole

2000-511

Item no.: 2000-549

Spacer module; modular; e.g., for bridging commoned terminal blocks

2000-549

Item no.: 2000-552

Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole

2000-552

2000-2239

02.05.2019Page /7 10

Data sheet | Item number:2000-2239

Item no.: 2000-553

Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole

2000-553

Item no.: 2000-554

Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole

2000-554

Item no.: 2000-555

Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole

2000-555

Item no.: 2000-556

Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole

2000-556

Item no.: 2000-557

Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole

2000-557

Item no.: 2000-558

Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole

2000-558

Item no.: 2000-559

Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole

2000-559

Item no.: 2000-560

Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole

2000-560

Item no.: 2009-174

Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks

2009-174

Item no.: 2009-182

Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm

2009-182

Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable

210-136

Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable

210-137

General accessories

Item no.: 2000-121

Adaptor

2000-121

Protective Warning Marker

Item no.: 2000-115

Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks

2000-115

Carrier rail

Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width
25 mm

210-112

Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113

Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width
18 mm

210-115

2000-2239

02.05.2019Page /8 10

Data sheet | Item number:2000-2239

Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118

Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715

210-196

Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715

210-197

Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-198

End plate

Item no.: 2000-2291

End and intermediate plate; 0.7 mm thick

2000-

2291

Item no.: 2000-2292

End and intermediate plate; 0.7 mm thick

2000-

2292

Marking accessories

Item no.: 2009-110

Marking strips; on reel; not stretchable; plain; snap-on type

2009-110

Item no.: 2009-113

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

Item no.: 2009-113/000-002

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-002

Item no.: 2009-113/000-005

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-005

Item no.: 2009-113/000-006

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-006

Item no.: 2009-113/000-007

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-007

Item no.: 2009-113/000-012

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-012

Item no.: 2009-113/000-017

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-017

Item no.: 2009-113/000-023

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-023

Item no.: 2009-113/000-024

WMB-Inline; for Smart Printer; on reel; plain; snap-on type

2009-113

/000-024

2000-2239

02.05.2019Page /9 10

Data sheet | Item number:2000-2239

Item no.: 793-3501

WMB marking card; as card; plain; snap-on type

793-3501

Downloads

Documentation

Bid Text

2000-2239 docx

15.1 kB

Download

Additional Information

pdf

2.1 MB

Download

CAD/CAE - Smart Data

CAD data

3D Download 2000-2239 URL Download



2000-2239

Subject to changes.

02.05.2019Page /10 10
