Wago 2000-2238/099-000 Data Sheet

Data sheet | Item number:2000-2238/099-000

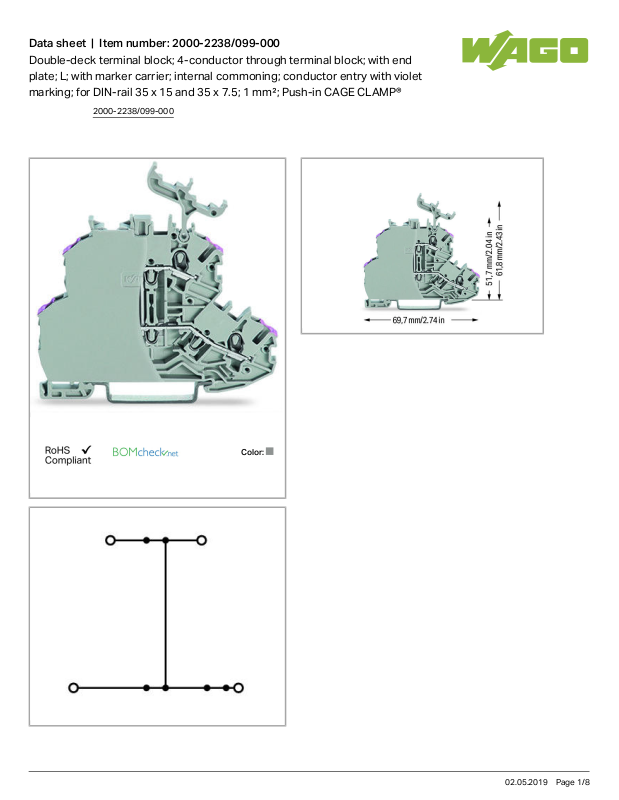

Double-deck terminal block; 4-conductor through terminal block; with end
plate; L; with marker carrier; internal commoning; conductor entry with violet
marking; for DIN-rail 35 x 15 and 35 x 7.5; 1 mm²; Push-in CAGE CLAMP®

Color:

2000-2238/099-000

02.05.2019Page /1 8

Data sheet | Item number:2000-2238/099-000

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 13.5 A

Rated current (2) 16 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 15 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 1mm²

Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG

Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG

Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG

Strip length 9 … 11mm/ 0.35 … 0.43inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 1

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 4.2mm/ 0.165inch

Height from upper-edge of DIN-35 rail 61.8mm/ 2.433inch

Depth 69.7mm/ 2.744inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

2000-2238/099-000

02.05.2019Page /2 8

Data sheet | Item number:2000-2238/099-000

Potential marking L

Marking level Center/side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.229 MJ

Weight 10.14g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin DE

GTIN 4050821037705

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 71-102841

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7671

CCA

DEKRA Certification B.V.

NTR NL
7518

CCA

DEKRA Certification B.V.

2192406.01
