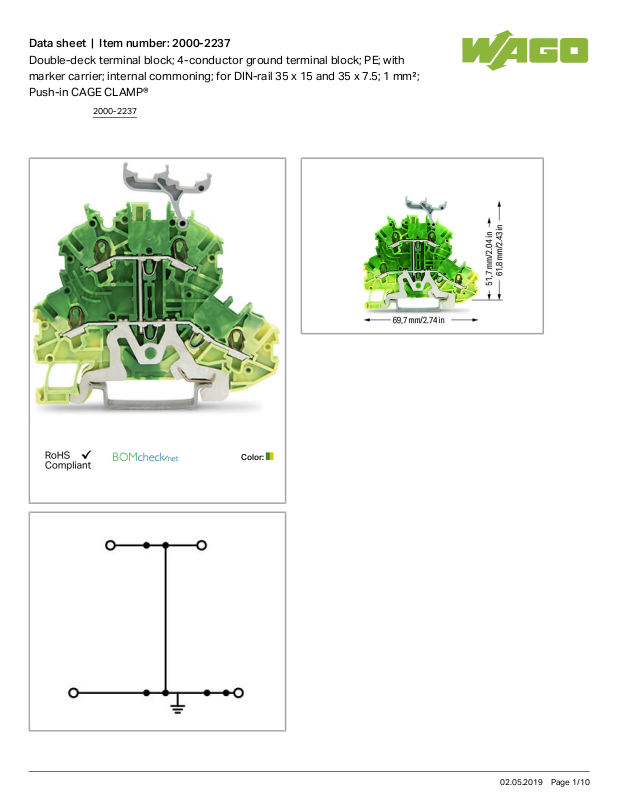

Wago 2000-2237 Data Sheet

Data sheet | Item number:2000-2237

Double-deck terminal block; 4-conductor ground terminal block; PE; with
marker carrier; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; 1 mm²;
Push-in CAGE CLAMP®

Color:

2000-2237

02.05.2019Page /1 10

Data sheet | Item number:2000-2237

Data

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 1mm²

Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG

Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG

Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG

Strip length 9 … 11mm/ 0.35 … 0.43inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 2

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 3.5mm/ 0.138inch

Height from upper-edge of DIN-35 rail 61.8mm/ 2.433inch

Depth 69.7mm/ 2.744inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking PE

Marking level Center/side marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Fire load 0.157 MJ

Weight 10.08g

Commercial data

Product Group 22 (TOPJOB S)

Country of origin CN

GTIN 4055143251440

Customs Tariff No. 85369010000

2000-2237

02.05.2019Page /2 10

Data sheet | Item number:2000-2237

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

Physikalisch Technische Bundesanstalt

EN 60079 PTB 11

ATEX
1041 U (II
2 G Ex e
IIC GB / I
M 2 Ex e I
Mb)

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7671

CCA

DEKRA Certification B.V.

EN 60947 71-102841

CCA

DEKRA Certification B.V.

2192406.01

CCA

DEKRA Certification B.V.

NTR NL
7518

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 E45172

sec.55
