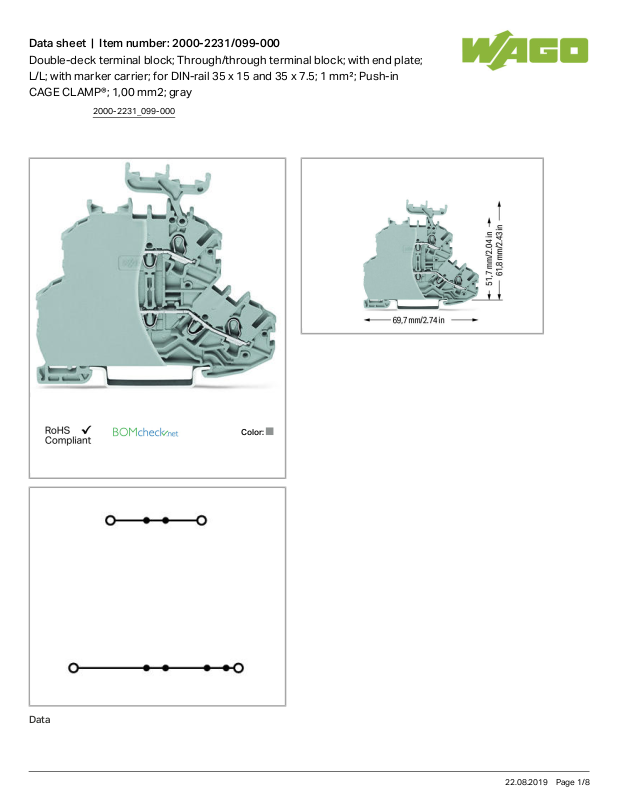

Data sheet | Item number:2000-2231/099-000
Double-deck terminal block; Through/through terminal block; with end plate; L/L; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 1 mm²; Push-in CAGE CLAMP®; 1,00 mm2; gray
Data
2000-2231_099-000
22.08.2019Page /1 8
Data sheet | Item number:2000-2231/099-000
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 13.5 A
Rated current (2) 16 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 15 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Number of connection points (connection type) 2
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 1.5mm²/ 24 16AWG
Solid conductor, push-in termination 0.5 1.5mm²/ 20 16AWG
Fine-stranded conductor 0.14 1.5mm²/ 24 16AWG
Strip length 9 11mm/ 0.35 0.43inch
Number of connection points 2
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring
Geometrical Data
Width 4.2mm/ 0.165inch
Height from upper-edge of DIN-35 rail 61.8mm/ 2.433inch
Depth 69.7mm/ 2.744inch
Mechanical data
Design horizontal
2000-2231_099-000
22.08.2019Page /2 8
Data sheet | Item number:2000-2231/099-000
Type of mounting DIN-35 rail
Potential marking L/L
Marking level Center/side marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.226 MJ
Weight 9.81g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4050821037651
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 71-
102841
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7671
Other Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
sec.55
2000-2231_099-000
22.08.2019Page /3 8
Data sheet | Item number:2000-2231/099-000
Compatible products
check
Item no.: 2000-510
TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1,00 mm2; gray
2000-510
Item no.: 2000-511
TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1-pole; 1,00 mm2; gray
2000-511
Item no.: 2000-549
Spacer module; modular; e.g., for bridging commoned terminal blocks; gray
2000-549
Item no.: 2000-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole; 1,00 mm2; gray
2000-552
Item no.: 2000-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole; 1,00 mm2; gray
2000-553
Item no.: 2000-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole; 1,00 mm2; gray
2000-554
Item no.: 2000-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole; 1,00 mm2; gray
2000-555
Item no.: 2000-556
Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole; 1,00 mm2; gray
2000-556
Item no.: 2000-557
Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole; 1,00 mm2; gray
2000-557
Item no.: 2000-558
Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole; 1,00 mm2; gray
2000-558
Item no.: 2000-559
Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole; 1,00 mm2; gray
2000-559
Item no.: 2000-560
Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole; 1,00 mm2; gray
2000-560
Item no.: 2009-174 Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks; gray
2009-174
Item no.: 2009-182 Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm; gray
2009-182
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable; red
210-136
2000-2231_099-000
22.08.2019Page /4 8
Data sheet | Item number:2000-2231/099-000
Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable; yellow
210-137
tools
Item no.: 210-647
Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft
210-647
Item no.: 210-648
Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled
210-648
Item no.: 210-719
Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft
210-719
Marking accessories
Item no.: 2009-110 Marking strips; on reel; not stretchable; plain; snap-on type; white
2009-110
Item no.: 2009-113 WMB-Inline; for Smart Printer; on reel; plain; snap-on type; white
2009-113
Item no.: 2009-113/000-002
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; yellow
2009-113
/000-002
Item no.: 2009-113/000-005
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; red
2009-113
/000-005
Item no.: 2009-113/000-006
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; blue
2009-113
/000-006
Item no.: 2009-113/000-007
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; gray
2009-113
/000-007
Item no.: 2009-113/000-012
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; orange
2009-113
/000-012
Item no.: 2009-113/000-017
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; light green
2009-113
/000-017
Item no.: 2009-113/000-023
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; green
2009-113
/000-023
Item no.: 2009-113/000-024
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; violet
2009-113
/000-024
Item no.: 793-3501 WMB marking card; as card; plain; snap-on type; white
793-3501
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width
210-112
2000-2231_099-000
22.08.2019Page /5 8
Data sheet | Item number:2000-2231/099-000
25 mm
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silver­colored
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715; copper-colored
210-198
General accessories
Item no.: 2000-121
Adaptor
2000-121
Jumper
Item no.: 2000-492
Double-deck vertical jumper; insulated; light gray
2000-492
Item no.: 2001-402
Push-in type jumper bar; insulated; 2-way; Nominal current 18 A; light gray
2001-402
Item no.: 2001-403
Push-in type jumper bar; insulated; 3-way; Nominal current 18 A; light gray
2001-403
Item no.: 2001-404
Push-in type jumper bar; insulated; 4-way; Nominal current 18 A; light gray
2001-404
Item no.: 2001-405
Push-in type jumper bar; insulated; 5-way; Nominal current 18 A; light gray
2001-405
Item no.: 2001-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block; light gray
2001-405
/011-000
Item no.: 2001-406
Push-in type jumper bar; insulated; 6-way; Nominal current 18 A; light gray
2001-406
Item no.: 2001-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block; light gray
2001-406
/020-000
Item no.: 2001-407
Push-in type jumper bar; insulated; 7-way; Nominal current 18 A; light gray
2001-407
2000-2231_099-000
22.08.2019Page /6 8
Data sheet | Item number:2000-2231/099-000
Item no.: 2001-408
Push-in type jumper bar; insulated; 8-way; Nominal current 18 A; light gray
2001-408
Item no.: 2001-409
Push-in type jumper bar; insulated; 9-way; Nominal current 18 A; light gray
2001-409
Item no.: 2001-410
Push-in type jumper bar; insulated; 10-way; Nominal current 18 A; light gray
2001-410
Item no.: 2001-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 18 A; light gray
2001-433
Item no.: 2001-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 18 A; light gray
2001-434
Item no.: 2001-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 18 A; light gray
2001-435
Item no.: 2001-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 18 A; light gray
2001-436
Item no.: 2001-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 18 A; light gray
2001-437
Item no.: 2001-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 18 A; light gray
2001-438
Item no.: 2001-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 18 A; light gray
2001-439
Item no.: 2001-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 18 A; light gray
2001-440
Item no.: 2009-402 Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks; gray
2009-402
Item no.: 2009-404 Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks; gray
2009-404
Item no.: 2009-406 Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks; gray
2009-406
Item no.: 210-103
Wire commoning chain; insulated; 50 connections; black
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
ferrule
Item no.: 216-241 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; white
216-241
Item no.: 216-242 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; gray
216-242
Item no.: 216-243 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
216-243
2000-2231_099-000
22.08.2019Page /7 8
Data sheet | Item number:2000-2231/099-000
crimped; acc. to DIN 46228, Part 4/09.90; red
Protective Warning Marker
Item no.: 2001-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks; yellow
2001-115
Downloads
Documentation
Bid Text
2000-2231/099-000 docx
14.9 kB
Download
Additional Information
Technical explanations Apr 3, 2019 pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 2000-2231/099-000 URL Download
EPLAN
EPLAN Data Portal Download
WSCAD
WSCAD Universe Download
2000-2231_099-000
Subject to changes.
22.08.2019Page /8 8
