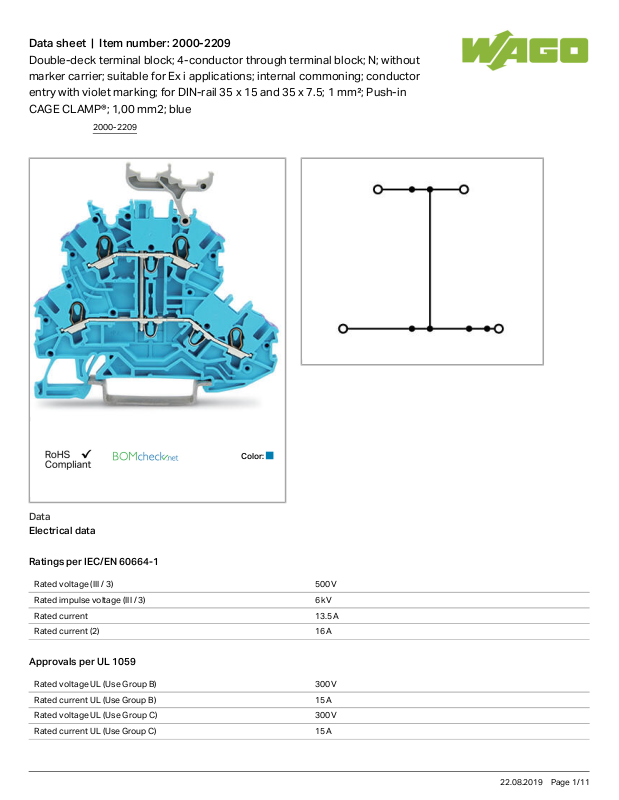

Wago 2000-2209 Data Sheet

Data sheet | Item number:2000-2209

Double-deck terminal block; 4-conductor through terminal block; N; without
marker carrier; suitable for Ex i applications; internal commoning; conductor
entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 1 mm²; Push-in
CAGE CLAMP®; 1,00 mm2; blue

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 13.5 A

Rated current (2) 16 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 15 A

2000-2209

22.08.2019Page /1 11

Data sheet | Item number:2000-2209

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 10 A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 10 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 1mm²

Solid conductor 0.14 1.5mm²/ 24 16AWG

Solid conductor, push-in termination 0.5 1.5mm²/ 20 16AWG

Fine-stranded conductor 0.14 1.5mm²/ 24 16AWG

Strip length 9 11mm/ 0.35 0.43inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 4

Total number of potentials 1

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 3.5mm/ 0.138inch

Height from upper-edge of DIN-35 rail 51.7mm/ 2.035inch

Depth 69.7mm/ 2.744inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking N

Marking level Center/side marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Fire load 0.155 MJ

Weight 7.659g

2000-2209

22.08.2019Page /2 11

Data sheet | Item number:2000-2209

Commercial data

Product Group 22 (TOPJOB S)

Country of origin CN

GTIN 4055143267694

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

Physikalisch Technische Bundesanstalt

EN 60079 PTB 11

ATEX
1041 U (II
2 G Ex e
IIC GB / I
M 2 Ex e I
Mb)

ATEX

Physikalisch Technische Bundesanstalt

EN 60079 PTB 11

ATEX
1041 U (II
2 G Ex e
IIC GB / I
M 2 Ex e I
Mb)

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 71-

102841

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7671

CSA

DEKRA Certification B.V.

C22.2 No. 158 2130762

2000-2209

22.08.2019Page /3 11

Data sheet | Item number:2000-2209

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 71-

102841

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7671

CSA

DEKRA Certification B.V.

C22.2 No. 158 2130762

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 E45172

sec.55

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 E45172

sec.55

Compatible products

General accessories

2000-2209

22.08.2019Page /4 11

Data sheet | Item number:2000-2209

Item no.: 2000-121

Adaptor

2000-121

Marking accessories

Item no.: 2009-110

Marking strips; on reel; not stretchable; plain; snap-on type; white

2009-110

Item no.: 2009-113

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; white

2009-113

Item no.: 2009-113/000-002

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; yellow

2009-113

/000-002

Item no.: 2009-113/000-005

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; red

2009-113

/000-005

Item no.: 2009-113/000-006

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; blue

2009-113

/000-006

Item no.: 2009-113/000-007

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; gray

2009-113

/000-007

Item no.: 2009-113/000-012

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; orange

2009-113

/000-012

Item no.: 2009-113/000-017

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; light green

2009-113

/000-017

Item no.: 2009-113/000-023

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; green

2009-113

/000-023

Item no.: 2009-113/000-024

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; violet

2009-113

/000-024

Item no.: 793-3501

WMB marking card; as card; plain; snap-on type; white

793-3501

Protective Warning Marker

Item no.: 2000-115

Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks; yellow

2000-115

Carrier rail

Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width
25 mm

210-112

Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113

Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

2000-2209

22.08.2019Page /5 11

Data sheet | Item number:2000-2209

Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width
18 mm

210-115

Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118

Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silver­colored

210-196

Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715

210-197

Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715;
copper-colored

210-198

End plate

Item no.: 2000-2291

End and intermediate plate; 0.7 mm thick; gray

2000-

2291

Item no.: 2000-2292

End and intermediate plate; 0.7 mm thick; orange

2000-

2292

ferrule

Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; white

216-241

Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray

216-242

Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; red

216-243

Jumper

Item no.: 2000-402

Push-in type jumper bar; insulated; 2-way; Nominal current 14 A; light gray

2000-402

Item no.: 2000-402/000-005

Push-in type jumper bar; insulated; 2-way; Nominal current 14 A; red

2000-402

/000-005

Item no.: 2000-402/000-006

Push-in type jumper bar; insulated; 2-way; Nominal current 14 A; blue

2000-402

/000-006

Item no.: 2000-402/000-018

Push-in type jumper bar; insulated; 2-way; Nominal current 14 A; yellow-green

2000-402

/000-018

Item no.: 2000-403

Push-in type jumper bar; insulated; 3-way; Nominal current 14 A; light gray

2000-403

2000-2209

22.08.2019Page /6 11

Data sheet | Item number:2000-2209

Item no.: 2000-403/000-005

Push-in type jumper bar; insulated; 3-way; Nominal current 14 A; red

2000-403

/000-005

Item no.: 2000-403/000-006

Push-in type jumper bar; insulated; 3-way; Nominal current 14 A; blue

2000-403

/000-006

Item no.: 2000-404

Push-in type jumper bar; insulated; 4-way; Nominal current 14 A; light gray

2000-404

Item no.: 2000-404/000-005

Push-in type jumper bar; insulated; 4-way; Nominal current 14 A; red

2000-404

/000-005

Item no.: 2000-404/000-006

Push-in type jumper bar; insulated; 4-way; Nominal current 14 A; blue

2000-404

/000-006

Item no.: 2000-405

Push-in type jumper bar; insulated; 5-way; Nominal current 14 A; light gray

2000-405

Item no.: 2000-405/000-005

Push-in type jumper bar; insulated; 5-way; Nominal current 14 A; red

2000-405

/000-005

Item no.: 2000-405/000-006

Push-in type jumper bar; insulated; 5-way; Nominal current 14 A; blue

2000-405

/000-006

Item no.: 2000-405/011-000

Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block; light gray

2000-405

/011-000

Item no.: 2000-406

Push-in type jumper bar; insulated; 6-way; Nominal current 14 A; light gray

2000-406

Item no.: 2000-406/000-005

Push-in type jumper bar; insulated; 6-way; Nominal current 14 A; red

2000-406

/000-005

Item no.: 2000-406/000-006

Push-in type jumper bar; insulated; 6-way; Nominal current 14 A; blue

2000-406

/000-006

Item no.: 2000-406/020-000

Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block; light gray

2000-406

/020-000

Item no.: 2000-407

Push-in type jumper bar; insulated; 7-way; Nominal current 14 A; light gray

2000-407

Item no.: 2000-407/000-005

Push-in type jumper bar; insulated; 7-way; Nominal current 14 A; red

2000-407

/000-005

Item no.: 2000-407/000-006

Push-in type jumper bar; insulated; 7-way; Nominal current 14 A; blue

2000-407

/000-006

2000-2209

22.08.2019Page /7 11

Data sheet | Item number:2000-2209

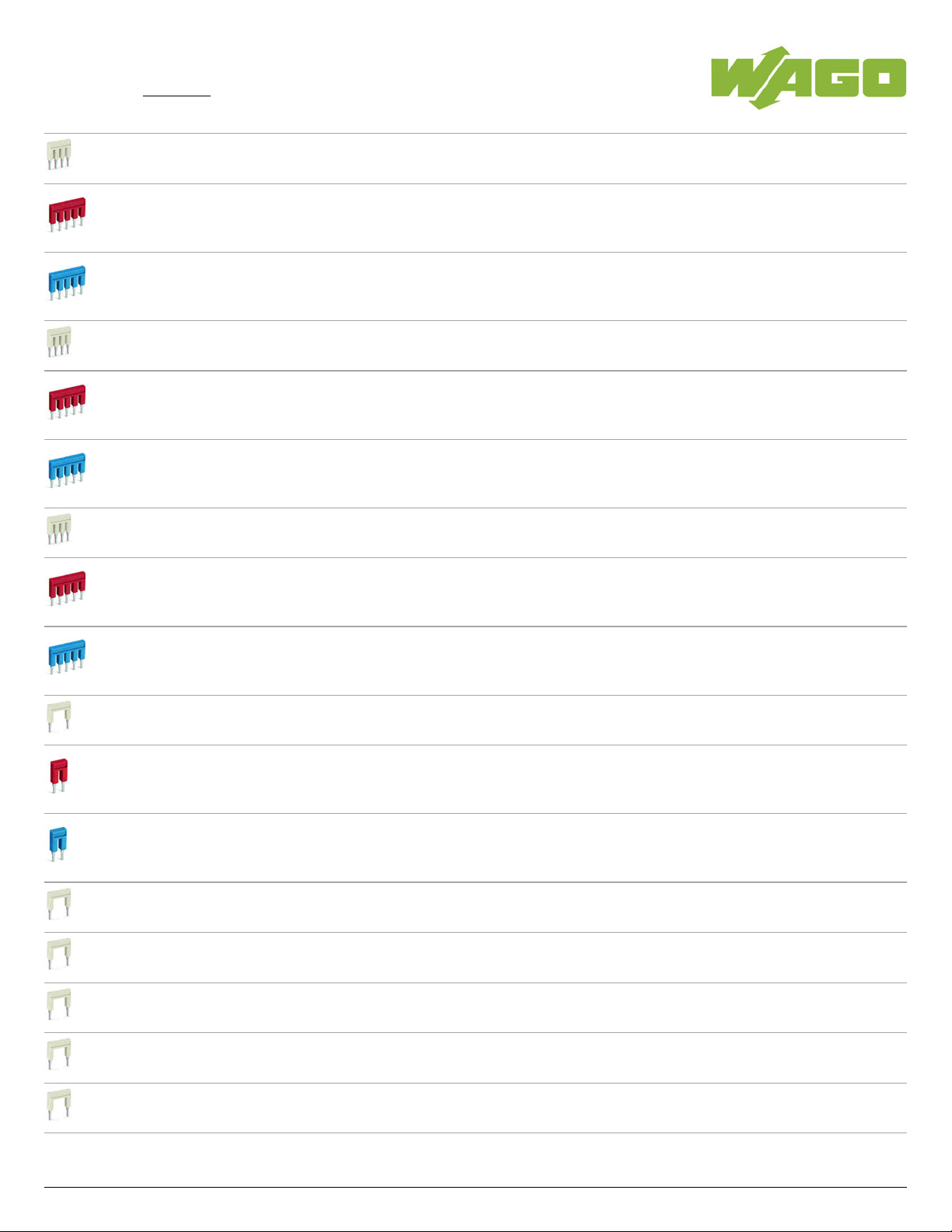

Item no.: 2000-408

Push-in type jumper bar; insulated; 8-way; Nominal current 14 A; light gray

2000-408

Item no.: 2000-408/000-005

Push-in type jumper bar; insulated; 8-way; Nominal current 14 A; red

2000-408

/000-005

Item no.: 2000-408/000-006

Push-in type jumper bar; insulated; 8-way; Nominal current 14 A; blue

2000-408

/000-006

Item no.: 2000-409

Push-in type jumper bar; insulated; 9-way; Nominal current 14 A; light gray

2000-409

Item no.: 2000-409/000-005

Push-in type jumper bar; insulated; 9-way; Nominal current 14 A; red

2000-409

/000-005

Item no.: 2000-409/000-006

Push-in type jumper bar; insulated; 9-way; Nominal current 14 A; blue

2000-409

/000-006

Item no.: 2000-410

Push-in type jumper bar; insulated; 10-way; Nominal current 14 A; light gray

2000-410

Item no.: 2000-410/000-005

Push-in type jumper bar; insulated; 10-way; Nominal current 14 A; red

2000-410

/000-005

Item no.: 2000-410/000-006

Push-in type jumper bar; insulated; 10-way; Nominal current 14 A; blue

2000-410

/000-006

Item no.: 2000-433

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A; light gray

2000-433

Item no.: 2000-433/000-005

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A; red

2000-433

/000-005

Item no.: 2000-433/000-006

Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A; blue

2000-433

/000-006

Item no.: 2000-434

Push-in type jumper bar; insulated; from 1 to 4; Nominal current 14 A; light gray

2000-434

Item no.: 2000-435

Push-in type jumper bar; insulated; from 1 to 5; Nominal current 14 A; light gray

2000-435

Item no.: 2000-436

Push-in type jumper bar; insulated; from 1 to 6; Nominal current 14 A; light gray

2000-436

Item no.: 2000-437

Push-in type jumper bar; insulated; from 1 to 7; Nominal current 14 A; light gray

2000-437

Item no.: 2000-438

Push-in type jumper bar; insulated; from 1 to 8; Nominal current 14 A; light gray

2000-438

2000-2209

22.08.2019Page /8 11

Data sheet | Item number:2000-2209

Item no.: 2000-439

Push-in type jumper bar; insulated; from 1 to 9; Nominal current 14 A; light gray

2000-439

Item no.: 2000-440

Push-in type jumper bar; insulated; from 1 to 10; Nominal current 14 A; light gray

2000-440

Item no.: 2000-492

Double-deck vertical jumper; insulated; light gray

2000-492

Item no.: 2009-402
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks; gray

2009-402

Item no.: 2009-404
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks; gray

2009-404

Item no.: 2009-406
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²;
suitable for 2000 and 2020 Series rail-mounted terminal blocks; gray

2009-406

Item no.: 210-103

Wire commoning chain; insulated; 50 connections; black

210-103

Item no.: 210-123

Wire commoning chain; insulated; 50 connections

210-123

check

Item no.: 2000-510
TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1,00 mm2; gray

2000-510

Item no.: 2000-511
TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1-pole; 1,00 mm2; gray

2000-511

Item no.: 2000-549
Spacer module; modular; e.g., for bridging commoned terminal blocks; gray

2000-549

Item no.: 2000-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole; 1,00 mm2; gray

2000-552

Item no.: 2000-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole; 1,00 mm2; gray

2000-553

Item no.: 2000-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole; 1,00 mm2; gray

2000-554

Item no.: 2000-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole; 1,00 mm2; gray

2000-555

Item no.: 2000-556
Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole; 1,00 mm2; gray

2000-556

Item no.: 2000-557
Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole; 1,00 mm2; gray

2000-557

Item no.: 2000-558
Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole; 1,00 mm2; gray

2000-558

Item no.: 2000-559
Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole; 1,00 mm2; gray

2000-559

2000-2209

22.08.2019Page /9 11

Data sheet | Item number:2000-2209

Item no.: 2000-560
Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole; 1,00 mm2; gray

2000-560

Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks;
gray

2009-174

Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm; gray

2009-182

Item no.: 210-136

Test plug; 2 mm Ø; with 500 mm cable; red

210-136

Item no.: 210-137

Test plug; 2.3 mm Ø; with 500 mm cable; yellow

210-137

tools

Item no.: 210-647

Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft

210-647

Item no.: 210-648

Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled

210-648

Item no.: 210-719

Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft

210-719

Downloads

Documentation

Bid Text

2000-2209 docx

15.1 kB

Download

Additional Information

Technical explanations Apr 3, 2019 pdf

2.1 MB

Download

CAD/CAE - Smart Data

CAD data

3D Download 2000-2209 URL Download

EPLAN

EPLAN Data Portal Download

WSCAD

WSCAD Universe Download

2000-2209

22.08.2019Page /10 11

Data sheet | Item number:2000-2209



2000-2209

Subject to changes.

22.08.2019Page /11 11
