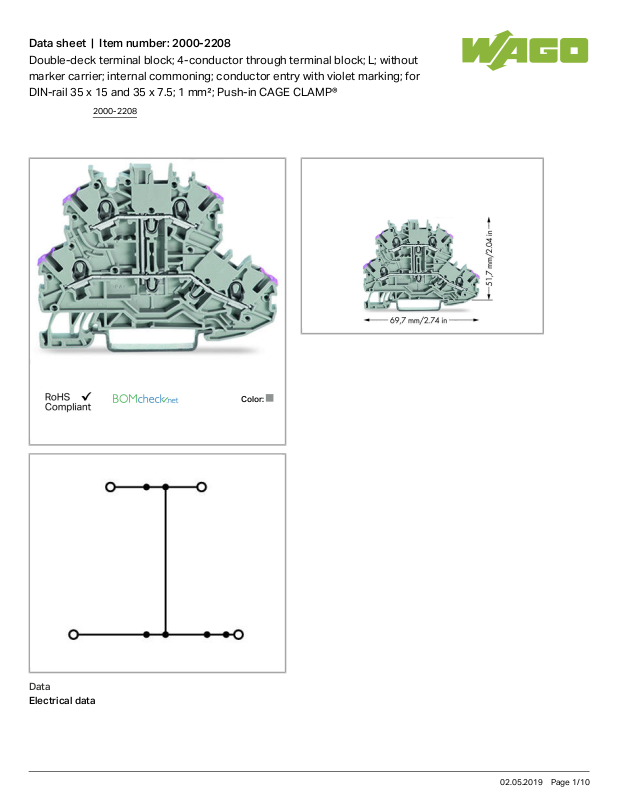

Data sheet | Item number:2000-2208
Double-deck terminal block; 4-conductor through terminal block; L; without
marker carrier; internal commoning; conductor entry with violet marking; for
DIN-rail 35 x 15 and 35 x 7.5; 1 mm²; Push-in CAGE CLAMP®
Color:
Data
Electrical data
2000-2208
02.05.2019Page /1 10
Data sheet | Item number:2000-2208
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 13.5 A
Rated current (2) 16 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A
Approvals per CSA
Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 10 A
Rated voltage CSA (Use Group C) 600V
Rated current CSA (Use Group C) 10 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG
Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG
Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 1
Number of levels 2
Type of wiring Front-entry wiring
Geometrical Data
Width 3.5mm/ 0.138inch
Height from upper-edge of DIN-35 rail 51.7mm/ 2.035inch
Depth 69.7mm/ 2.744inch
2000-2208
02.05.2019Page /2 10
Data sheet | Item number:2000-2208
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Potential marking L
Marking level Center/side marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.155 MJ
Weight 7.69g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin CN
GTIN 4055143267670
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
ATEX
Physikalisch Technische Bundesanstalt
EN 60079 PTB 11
ATEX
1041 U (II
2 G Ex e
IIC GB / I
M 2 Ex e I
Mb)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 71-102841
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7671
2000-2208
02.05.2019Page /3 10
Data sheet | Item number:2000-2208
CCA
DEKRA Certification B.V.
NTR NL
7518
CCA
DEKRA Certification B.V.
2192406.01
CSA
DEKRA Certification B.V.
C22.2 No. 158 2130762
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Germany GmbH
UL 1059 E45172
sec.55
Compatible products
ferrule
Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-241
Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-243
tools
Item no.: 210-647
Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short
210-647
2000-2208
02.05.2019Page /4 10
Data sheet | Item number:2000-2208
Item no.: 210-648
Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled
210-648
Item no.: 210-719
Operating tool with partially insulated shaft; Type 1, blade (2.5 x 0.4) mm
210-719
End plate
Item no.: 2000-2291
End and intermediate plate; 0.7 mm thick
2000-
2291
Item no.: 2000-2292
End and intermediate plate; 0.7 mm thick
2000-
2292
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width
25 mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width
18 mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Protective Warning Marker
Item no.: 2000-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2000-115
check
Item no.: 2000-510
TOPJOB®S L-type test plug module; modular; for jumper contact slot
2000-510
Item no.: 2000-511
TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1-pole
2000-511
Item no.: 2000-549
Spacer module; modular; e.g., for bridging commoned terminal blocks
2000-549
Item no.: 2000-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole
