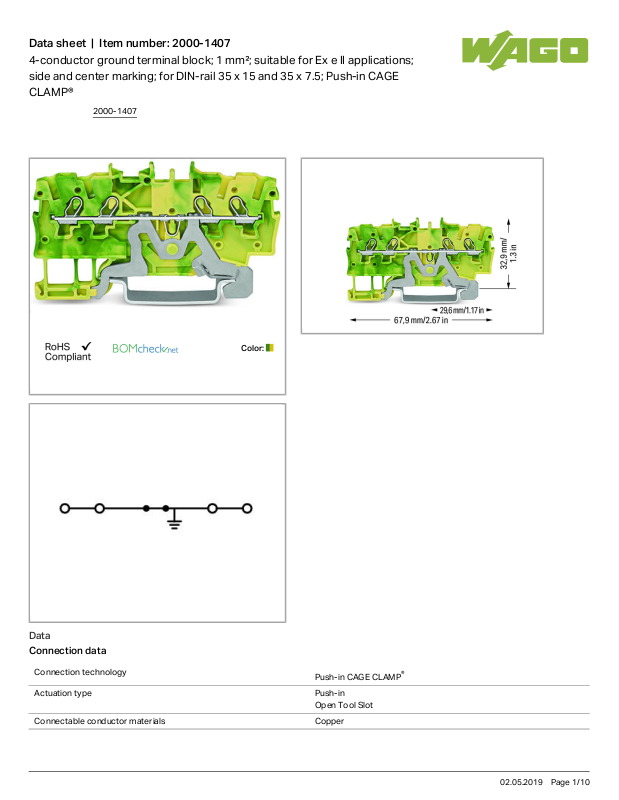

Data sheet | Item number:2000-1407
4-conductor ground terminal block; 1 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Data

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
2000-1407
02.05.2019Page /1 10
Data sheet | Item number:2000-1407
Nominal cross section 1mm²
Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG
Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG
Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 3.5mm/ 0.138inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 67.9mm/ 2.673inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color green-yellow
Insulating material Polyamide 66 (PA 66)
Fire load 0.096 MJ
Weight 7.198g

Commercial data

Product Group 22 (TOPJOB S)
Country of origin CN
GTIN 4045454966980
Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
2000-1407
02.05.2019Page /2 10
Data sheet | Item number:2000-1407
ATEX
Physikalisch Technische Bundesanstalt
EN 60079 PTB 11
ATEX 1041 U (II 2 G Ex e IIC GB / I M 2 Ex e I Mb)
ATEX
Physikalisch Technische Bundesanstalt
EN 60079 PTB 11
ATEX 1041 U (II 2 G Ex e IIC GB / I M 2 Ex e I Mb)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 71-102841
CCA
DEKRA Certification B.V.
NTR NL 7518
CCA
DEKRA Certification B.V.
2192406.01
CSA
DEKRA Certification B.V.
C22.2 No. 158 2130762
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
2000-1407
02.05.2019Page /3 10
Data sheet | Item number:2000-1407
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
sec.55

Compatible products

End plate
Item no.: 2000-1491
End and intermediate plate; 0.7 mm thick
2000-
1491
Item no.: 2000-1492
End and intermediate plate; 0.7 mm thick
2000-
1492
Item no.: 209-191
Separator for Ex e/Ex i applications; 3 mm thick; 120 mm wide
209-191
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-113
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
Item no.: 2009-113/000-002
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-002
2000-1407
02.05.2019Page /4 10
Data sheet | Item number:2000-1407
Item no.: 2009-113/000-005
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-005
Item no.: 2009-113/000-006
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-006
Item no.: 2009-113/000-007
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-007
Item no.: 2009-113/000-012
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-012
Item no.: 2009-113/000-017
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-017
Item no.: 2009-113/000-023
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-023
Item no.: 2009-113/000-024
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-024
Item no.: 2009-191
Group marker carrier
2009-191
Item no.: 793-3501
WMB marking card; as card; plain; snap-on type
793-3501
check
Item no.: 2000-510
TOPJOB®S L-type test plug module; modular; for jumper contact slot
2000-510
Item no.: 2000-511
TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1-pole
2000-511
Item no.: 2000-549
Spacer module; modular; e.g., for bridging commoned terminal blocks
2000-549
Item no.: 2000-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole
2000-552
Item no.: 2000-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole
2000-553
Item no.: 2000-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole
2000-554
Item no.: 2000-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole
2000-555
Item no.: 2000-556
Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole
2000-556
2000-1407
02.05.2019Page /5 10
Data sheet | Item number:2000-1407
Item no.: 2000-557
Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole
2000-557
Item no.: 2000-558
Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole
2000-558
Item no.: 2000-559
Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole
2000-559
Item no.: 2000-560
Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole
2000-560
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm
2009-182
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable
210-136
Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable
210-137
Protective Warning Marker
Item no.: 2000-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2000-115
Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Jumper
Item no.: 2000-402
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
2000-1407
02.05.2019Page /6 10
Data sheet | Item number:2000-1407
Item no.: 2000-402/000-005
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-005
Item no.: 2000-402/000-006
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-006
Item no.: 2000-402/000-018
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-018
Item no.: 2000-403
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
Item no.: 2000-403/000-005
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
/000-005
Item no.: 2000-403/000-006
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
/000-006
Item no.: 2000-404
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
Item no.: 2000-404/000-005
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
/000-005
Item no.: 2000-404/000-006
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
/000-006
Item no.: 2000-405
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
Item no.: 2000-405/000-005
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
/000-005
Item no.: 2000-405/000-006
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
/000-006
Item no.: 2000-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2000-405
/011-000
Item no.: 2000-406
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
Item no.: 2000-406/000-005
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
/000-005
Item no.: 2000-406/000-006
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
/000-006
2000-1407
02.05.2019Page /7 10
Data sheet | Item number:2000-1407
Item no.: 2000-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block
2000-406
/020-000
Item no.: 2000-407
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
Item no.: 2000-407/000-005
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
/000-005
Item no.: 2000-407/000-006
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
/000-006
Item no.: 2000-408
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
Item no.: 2000-408/000-005
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
/000-005
Item no.: 2000-408/000-006
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
/000-006
Item no.: 2000-409
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
Item no.: 2000-409/000-005
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
/000-005
Item no.: 2000-409/000-006
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
/000-006
Item no.: 2000-410
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
Item no.: 2000-410/000-005
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
/000-005
Item no.: 2000-410/000-006
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
/000-006
Item no.: 2000-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
Item no.: 2000-433/000-005
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
/000-005
Item no.: 2000-433/000-006
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
/000-006
2000-1407
02.05.2019Page /8 10
Data sheet | Item number:2000-1407
Item no.: 2000-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 14 A
2000-434
Item no.: 2000-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 14 A
2000-435
Item no.: 2000-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 14 A
2000-436
Item no.: 2000-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 14 A
2000-437
Item no.: 2000-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 14 A
2000-438
Item no.: 2000-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 14 A
2000-439
Item no.: 2000-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 14 A
2000-440
Item no.: 2009-402 Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-402
Item no.: 2009-404 Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-404
Item no.: 2009-406 Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-406
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
ferrule
Item no.: 216-241 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-241
Item no.: 216-242 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-243
tools
Item no.: 210-647 Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short
210-647
Item no.: 210-648 Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled
210-648
Item no.: 210-719 Operating tool with partially insulated shaft; Type 1, blade (2.5 x 0.4) mm
210-719
2000-1407
02.05.2019Page /9 10
Data sheet | Item number:2000-1407
Downloads

Documentation

Bid Text
2000-1407
Reihenklemmen, TOPJOB S
Apr 4, 2012 docx
14.7 kB
Download
Additional Information
pdf
2.1 MB
Download

CAD/CAE - Smart Data

CAD data
3D Download 2000-1407 URL Download
2000-1407
Subject to changes.
02.05.2019Page /10 10
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
