Wago 2000-1405 Data Sheet

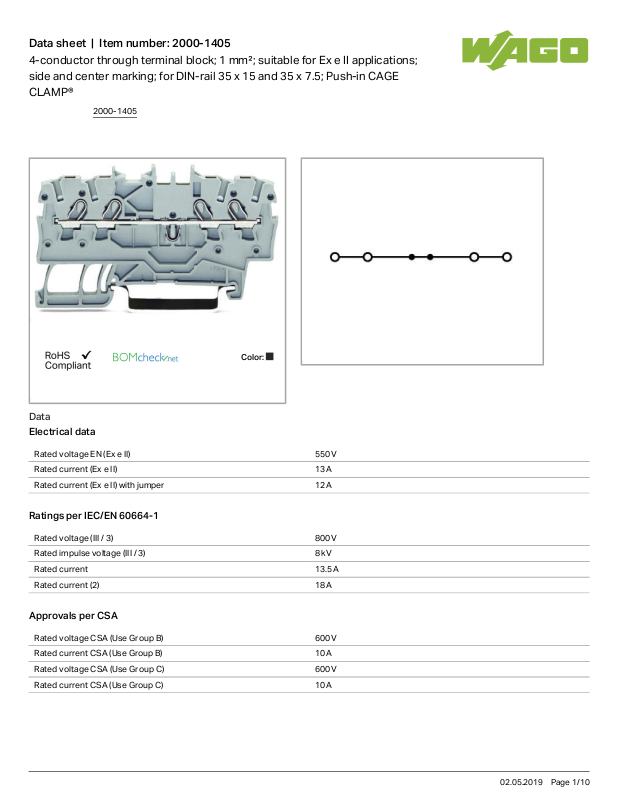

Data sheet | Item number:2000-1405
4-conductor through terminal block; 1 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Data

Electrical data

Rated voltage EN (Ex e II) 550 V
Rated current (Ex e II) 13 A
Rated current (Ex e II) with jumper 12 A

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 13.5 A
Rated current (2) 18 A

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 10 A
Rated voltage CSA (Use Group C) 600 V
Rated current CSA (Use Group C) 10 A
2000-1405
02.05.2019Page /1 10
Data sheet | Item number:2000-1405

Connection data

Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG
Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG
Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 3.5mm/ 0.138inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 67.9mm/ 2.673inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color black
Insulating material Polyamide 66 (PA 66)
Fire load 0.107 MJ
Weight 5.14g

Commercial data

Country of origin CN
GTIN 4045454966966
Customs Tariff No. 85369010000

Approvals / Certificates

2000-1405
02.05.2019Page /2 10
Data sheet | Item number:2000-1405
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
ATEX
Physikalisch Technische Bundesanstalt
EN 60079 PTB 11
ATEX 1041 U (II 2 G Ex e IIC GB / I M 2 Ex e I Mb)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 71-
102841
CSA
DEKRA Certification B.V.
C22.2 No. 158 2130762
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
2000-1405
02.05.2019Page /3 10
