Wago 2000-1306 Data Sheet

Download

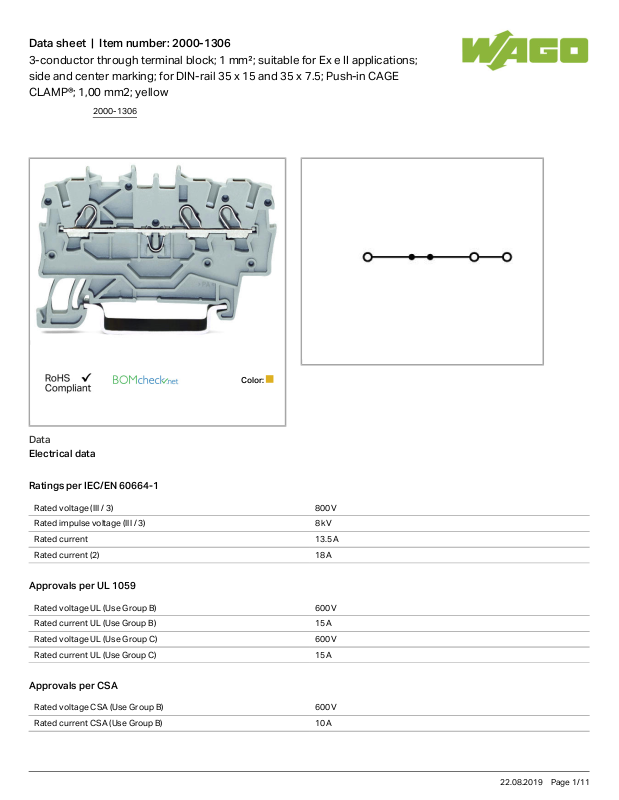

Data sheet | Item number:2000-1306
3-conductor through terminal block; 1 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm2; yellow
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 13.5 A
Rated current (2) 18 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 15 A
Approvals per CSA
Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 10 A
2000-1306
22.08.2019Page /1 11
Data sheet | Item number:2000-1306
Rated voltage CSA (Use Group C) 600V
Rated current CSA (Use Group C) 10 A
Approvals Ex
Rated voltage EN (Ex e II) 550 V
Rated current (Ex e II) 13 A
Rated current (Ex e II) with jumper 12 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 1.5mm²/ 24 16AWG
Solid conductor, push-in termination 0.5 1.5mm²/ 20 16AWG
Fine-stranded conductor 0.14 1.5mm²/ 24 16AWG
Strip length 9 11mm/ 0.35 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 3
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Number of jumper slots 2
Geometrical Data
Width 3.5mm/ 0.138inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 58.2mm/ 2.291inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color yellow
Insulating material Polyamide 66 (PA 66)
Fire load 0.092 MJ
2000-1306
22.08.2019Page /2 11
Data sheet | Item number:2000-1306
Weight 4.32g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin CN
GTIN 4045454966898
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
AEx
Underwriters Laboratories Inc.
UL 60079 E185892
ATEX
Physikalisch Technische Bundesanstalt
EN 60079 PTB 11
ATEX 1041 U (II 2 G Ex e IIC GB / I M 2 Ex e I Mb)
ATEX
Physikalisch Technische Bundesanstalt
EN 60079 PTB 11
ATEX 1041 U (II 2 G Ex e IIC GB / I M 2 Ex e I Mb)
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 71-
102841
CSA
DEKRA Certification B.V.
C22.2 No. 158 2130762
2000-1306
22.08.2019Page /3 11
Data sheet | Item number:2000-1306
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
CCA
DEKRA Certification B.V.
EN 60947 71-102841
CSA
DEKRA Certification B.V.
C22.2 No. 158 2130762
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
2000-1306
22.08.2019Page /4 11
Data sheet | Item number:2000-1306
Other Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
sec.55
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
sec.55
Compatible products
Jumper
Item no.: 2000-402
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A; light gray
2000-402
Item no.: 2000-402/000-005
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A; red
2000-402
/000-005
Item no.: 2000-402/000-006
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A; blue
2000-402
/000-006
Item no.: 2000-402/000-018
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A; yellow-green
2000-402
/000-018
Item no.: 2000-403
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A; light gray
2000-403
Item no.: 2000-403/000-005
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A; red
2000-403
/000-005
Item no.: 2000-403/000-006
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A; blue
2000-403
/000-006
2000-1306
22.08.2019Page /5 11
Data sheet | Item number:2000-1306
Item no.: 2000-404
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A; light gray
2000-404
Item no.: 2000-404/000-005
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A; red
2000-404
/000-005
Item no.: 2000-404/000-006
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A; blue
2000-404
/000-006
Item no.: 2000-405
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A; light gray
2000-405
Item no.: 2000-405/000-005
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A; red
2000-405
/000-005
Item no.: 2000-405/000-006
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A; blue
2000-405
/000-006
Item no.: 2000-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block; light gray
2000-405
/011-000
Item no.: 2000-406
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A; light gray
2000-406
Item no.: 2000-406/000-005
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A; red
2000-406
/000-005
Item no.: 2000-406/000-006
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A; blue
2000-406
/000-006
Item no.: 2000-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block; light gray
2000-406
/020-000
Item no.: 2000-407
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A; light gray
2000-407
Item no.: 2000-407/000-005
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A; red
2000-407
/000-005
Item no.: 2000-407/000-006
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A; blue
2000-407
/000-006
Item no.: 2000-408
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A; light gray
2000-408
Item no.: 2000-408/000-005
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A; red
2000-408
/000-005
2000-1306
22.08.2019Page /6 11
Data sheet | Item number:2000-1306
Item no.: 2000-408/000-006
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A; blue
2000-408
/000-006
Item no.: 2000-409
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A; light gray
2000-409
Item no.: 2000-409/000-005
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A; red
2000-409
/000-005
Item no.: 2000-409/000-006
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A; blue
2000-409
/000-006
Item no.: 2000-410
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A; light gray
2000-410
Item no.: 2000-410/000-005
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A; red
2000-410
/000-005
Item no.: 2000-410/000-006
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A; blue
2000-410
/000-006
Item no.: 2000-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A; light gray
2000-433
Item no.: 2000-433/000-005
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A; red
2000-433
/000-005
Item no.: 2000-433/000-006
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A; blue
2000-433
/000-006
Item no.: 2000-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 14 A; light gray
2000-434
Item no.: 2000-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 14 A; light gray
2000-435
Item no.: 2000-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 14 A; light gray
2000-436
Item no.: 2000-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 14 A; light gray
2000-437
Item no.: 2000-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 14 A; light gray
2000-438
Item no.: 2000-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 14 A; light gray
2000-439
Item no.: 2000-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 14 A; light gray
2000-440
Item no.: 2009-402
2000-1306
22.08.2019Page /7 11
Data sheet | Item number:2000-1306
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks; gray
2009-402
Item no.: 2009-404 Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks; gray
2009-404
Item no.: 2009-406 Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks; gray
2009-406
Item no.: 210-103
Wire commoning chain; insulated; 50 connections; black
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
tools
Item no.: 210-647
Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft
210-647
Item no.: 210-648
Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled
210-648
Item no.: 210-719
Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft
210-719
Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silver­colored
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715; copper-colored
210-198
End plate
Item no.: 2000-1391
End and intermediate plate; 0.7 mm thick; gray
2000-
1391
2000-1306
22.08.2019Page /8 11
Data sheet | Item number:2000-1306
Item no.: 2000-1392
End and intermediate plate; 0.7 mm thick; orange
2000-
1392
Item no.: 209-191 Separator for Ex e/Ex i applications; 3 mm thick; 120 mm wide; orange
209-191
ferrule
Item no.: 216-241 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; white
216-241
Item no.: 216-242 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; gray
216-242
Item no.: 216-243 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; red
216-243
Protective Warning Marker
Item no.: 2000-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks; yellow
2000-115
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type; white
2009-110
Item no.: 2009-113
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; white
2009-113
Item no.: 2009-113/000-002
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; yellow
2009-113
/000-002
Item no.: 2009-113/000-005
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; red
2009-113
/000-005
Item no.: 2009-113/000-006
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; blue
2009-113
/000-006
Item no.: 2009-113/000-007
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; gray
2009-113
/000-007
Item no.: 2009-113/000-012
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; orange
2009-113
/000-012
Item no.: 2009-113/000-017
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; light green
2009-113
/000-017
Item no.: 2009-113/000-023
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; green
2009-113
/000-023
2000-1306
22.08.2019Page /9 11
Data sheet | Item number:2000-1306
Item no.: 2009-113/000-024
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; violet
2009-113
/000-024
Item no.: 2009-191
Group marker carrier
2009-191
Item no.: 793-3501
WMB marking card; as card; plain; snap-on type; white
793-3501
check
Item no.: 2000-510
TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1,00 mm2; gray
2000-510
Item no.: 2000-511
TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1-pole; 1,00 mm2; gray
2000-511
Item no.: 2000-549
Spacer module; modular; e.g., for bridging commoned terminal blocks; gray
2000-549
Item no.: 2000-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole; 1,00 mm2; gray
2000-552
Item no.: 2000-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole; 1,00 mm2; gray
2000-553
Item no.: 2000-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole; 1,00 mm2; gray
2000-554
Item no.: 2000-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole; 1,00 mm2; gray
2000-555
Item no.: 2000-556
Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole; 1,00 mm2; gray
2000-556
Item no.: 2000-557
Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole; 1,00 mm2; gray
2000-557
Item no.: 2000-558
Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole; 1,00 mm2; gray
2000-558
Item no.: 2000-559
Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole; 1,00 mm2; gray
2000-559
Item no.: 2000-560
Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole; 1,00 mm2; gray
2000-560
Item no.: 2009-174 Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks; gray
2009-174
Item no.: 2009-182 Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm; gray
2009-182
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable; red
210-136
Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable; yellow
210-137
2000-1306
22.08.2019Page /10 11
Data sheet | Item number:2000-1306
Downloads
Documentation
Bid Text
2000-1306
Reihenklemmen, TOPJOB S
Apr 4, 2012 docx
15.1 kB
Download
Additional Information
Technical explanations Apr 3, 2019 pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 2000-1306 URL Download
EPLAN
EPLAN Data Portal Download
WSCAD
WSCAD Universe Download
2000-1306
Subject to changes.
22.08.2019Page /11 11
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
