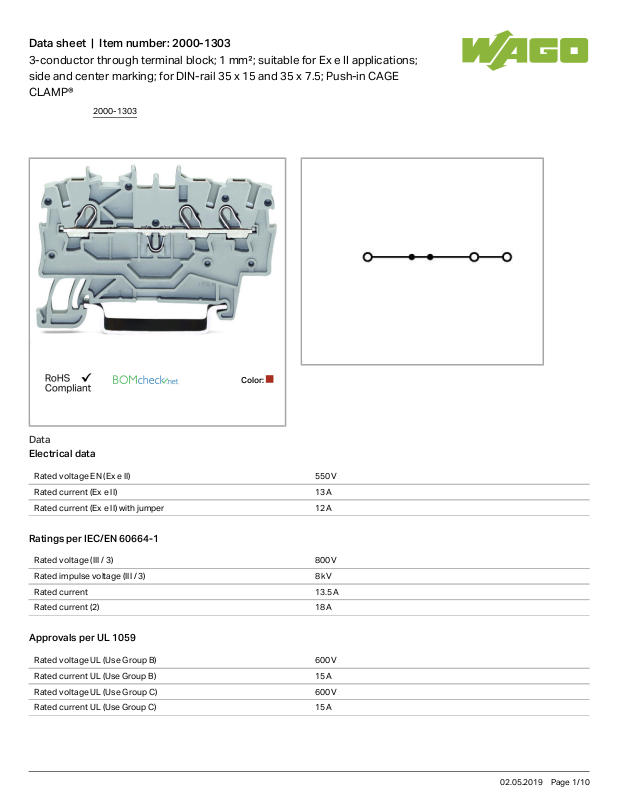

Wago 2000-1303 Data Sheet

Data sheet | Item number:2000-1303

3-conductor through terminal block; 1 mm²; suitable for Ex e II applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®

Color:

Data

Electrical data

Rated voltage EN (Ex e II) 550 V

Rated current (Ex e II) 13 A

Rated current (Ex e II) with jumper 12 A

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 13.5 A

Rated current (2) 18 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 600 V

Rated current UL (Use Group B) 15 A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 15 A

2000-1303

02.05.2019Page /1 10

Data sheet | Item number:2000-1303

Approvals per CSA

Rated voltage CSA (Use Group B) 600 V

Rated current CSA (Use Group B) 10 A

Rated voltage CSA (Use Group C) 600 V

Rated current CSA (Use Group C) 10 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Open Tool Slot

Connectable conductor materials Copper

Nominal cross section 1mm²

Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG

Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG

Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG

Strip length 9 … 11mm/ 0.35 … 0.43inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 3.5mm/ 0.138inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 58.2mm/ 2.291inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color red

Insulating material Polyamide 66 (PA 66)

Fire load 0.092 MJ

Weight 4.32g

2000-1303

02.05.2019Page /2 10

Data sheet | Item number:2000-1303

Commercial data

Product Group 22 (TOPJOB S)

Country of origin CN

GTIN 4045454966867

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

Physikalisch Technische Bundesanstalt

EN 60079 PTB 11

ATEX
1041 U (II
2 G Ex e
IIC GB / I
M 2 Ex e I
Mb)

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 71-

102841

CSA

DEKRA Certification B.V.

C22.2 No. 158 2130762

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 38586/A0 BV

2000-1303

02.05.2019Page /3 10

Data sheet | Item number:2000-1303

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 E45172
