Wagen Tech 2260 User Manual

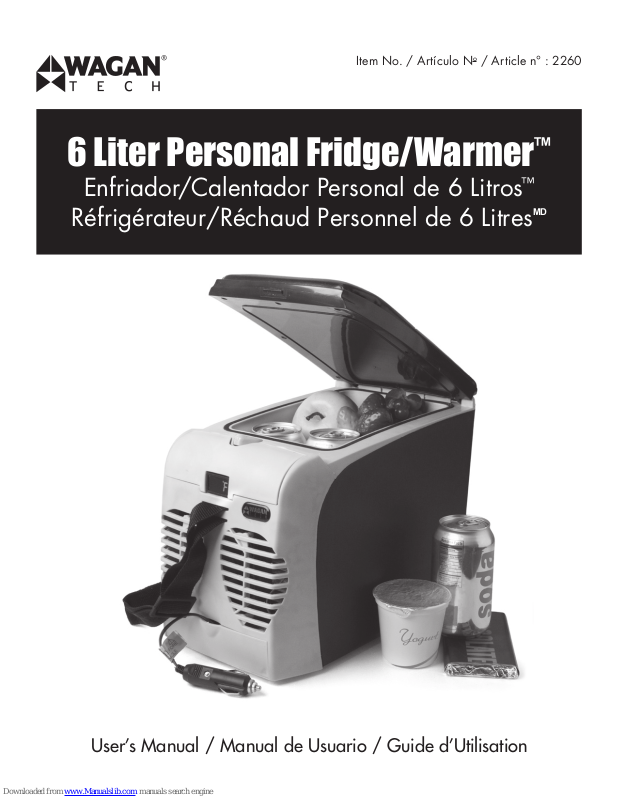

Item No. / Artículo No / Article n° : 2260

6 Liter Personal Fridge/Warmer

™

Enfriador/Calentador Personal de 6 Litros

™

Réfrigérateur/Réchaud Personnel de 6 Litres

MD

User’s Manual / Manual de Usuario / Guide d’Utilisation

6 Liter Personal Fridge/Warmer™ by Wagan Tech

Padded Armrest

Latching Lid

Cupholders fold out

®

High Power

Cooling Fan

Control Panel

LED Temperature

Display

Adjustable

Shoulder Strap

12V DC Power Cord

1

www.wagan.com

User’s Manual—Read before using this equipment

Thank you for purchasing the 6 Liter Personal Fridge/Warmer™ by Wagan Tech®.
With normal care and proper treatment, it will provide years of reliable service.
Please read all operating instructions carefully before use.

PRODUCT SPECIFICATIONS

Capacity 6 Liters (9 Cans)
Current 3.3A
Power supply 12V DC
Temperature Thermostatically controlled
Insulation material Polyurethane foam
Maximum cooling Approximately 35˚F–40˚F below

ambient temperature
Maximum warming Approximately 140 ˚F
Brushless motor 30,000 hour life
Power consumption 40W

WARNINGS

• Children cannot sense the dangers caused by improper handling of

electrical devices. Therefore, do not let children use this cooler/warmer
except under adult supervision.

• Do not carry the cooler by the cable or pull the cable to remove the plug

from the socket. Protect the cable from heat, oil, solvents, sharp objects or
anything that could damage the insulation.

• Inspect the cooler cable and any extension leads used periodically for

excessive wear or damage.

©2014 Wagan Corporation. All Rights Reserved.

Wagan Tech and wagan.com are trademarks used by Wagan Corporation.

2

6 Liter Personal Fridge/Warmer™ by Wagan Tech

®

• Operate the unit only with the cord provided. Store the cord inside the unit
to prevent misplacing it.

• Do not hold the plug with wet or moist hands.

• Unplug unit before starting the vehicle, then re-plug in the appliance after
the vehicle is running as the voltage surge could damage the unit.

• Switch off the unit and wait for 30 minutes before switching from cool to
heat mode or vice versa.

• Do not use in poorly ventilated areas. Excessive heat needs to be
discharged and fresh air brought in. Good ventilation is essential to avoid
overheating. The internal fuse may be damaged and lose its power if used
in badly ventilated places. Do not cover the vents.

• Do not place in a sealed car or in a trunk. Never obstruct the air flow.
Never use the appliance in closed rooms without a supply of fresh air.

• Remove any tar or rust. Don’t plug into a lighter socket of a 24V lorry or
bus. Use an adaptor when used in a lorry or bus. Use an extension cord if it
is too short (10A or above, available at car accessory shops)

• Do not put any foreign objects into the fans during operation. Avoid using
on grassy areas since grass may enter the fan.

• Pay special attention to the batteries when in use. Pull the plug from the
power source after use. The power source may still run depending on the
overheating of the batteries.

• Do not immerse the appliance or the 12V adaptor in water.

• Do not put ice or ice packs in the cooler.

• The appliance is suitable for camping use, but not when exposed to rain.

• In heating mode metal parts inside the unit become very hot. Do not touch
the metal parts if the unit is being/was operated in heating mode.

3

www.wagan.com

User’s Manual—Read before using this equipment

OPERATION

1. Connect the small end of the DC power cord to the cooler.

2. Start the vehicle's engine.

3. Plug the large end of the DC power cord into the vehicle's cigarette lighter
socket firmly.

4. Choose heat or cool mode with the power switch.

5. The red light will light for warming, and the green light will light for cooling.

COOLER MODE

It will take about 30 minutes to reach the maximum cooling temperature of
approximately 35 ˚F below ambient temperature. Items can be placed in the
cooler pre-chilled to assist in reaching the lowest temperature as quickly as
possible. The cooler will continue to operate as long as power is supplied.
Contents will stay cool for some time after the unit is disconnected or turned
off, however, the temperature will rise to that of the surrounding air over time.
Exercise normal cautions that you would for any food in a cooling device. The
appliance is not designed for storing ice or open containers of liquids.

WARMER MODE

It will take about 60 minutes to reach the maximum warming temperature of
approximately 140 ˚F. It is recommended that items placed in the warmer be
pre-heated to assist in reaching the maximum temperature as quickly as possible.
The warmer will continue to operate as long as power is supplied. A built-in
thermostat will cycle the unit on and off to prevent overheating. Contents will
stay warm for some time after the unit is disconnected or turned off, however the
temperature will drop to that of the surrounding air over time.

©2014 Wagan Corporation. All Rights Reserved.

Wagan Tech and wagan.com are trademarks used by Wagan Corporation.

4

6 Liter Personal Fridge/Warmer™ by Wagan Tech

®

CARE AND MAINTENANCE

To clean the unit, first switch the power off and unplug it from its power source,
then allow it to cool. Wipe the inside with a clean, damp cloth. Use mild soap
with water if necessary. Do not use abrasive household chemicals to clean the
appliance (e.g. bleach, ammonia, etc.)

DISPOSAL

If your cooler requires replacement or is of no further use, please consider
protecting the environment and look into recycling options. Contact your local
authority for advice as many have facilities for environmentally safe disposal.
