Wagan Quick Flow 2020 User Manual
Item # / Artículo # / Article n° 2020
™
Quick Flow
Compact Air Compressor
El compresor de aire compacto
Le compresseur d’air compact
User’s Manual / Manual de Usuario / Guide d’Utilisation
Quick Flow™ Compact Air Compressor by Wagan Tech
©2013 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
®
Thank you for purchasing the Quick Flow™ Compact Air Compressor by
Wagan Tech®. With normal care and proper treatment, it will provide
years of reliable service. It is important to read and understand all
operating instructions and warnings before use.

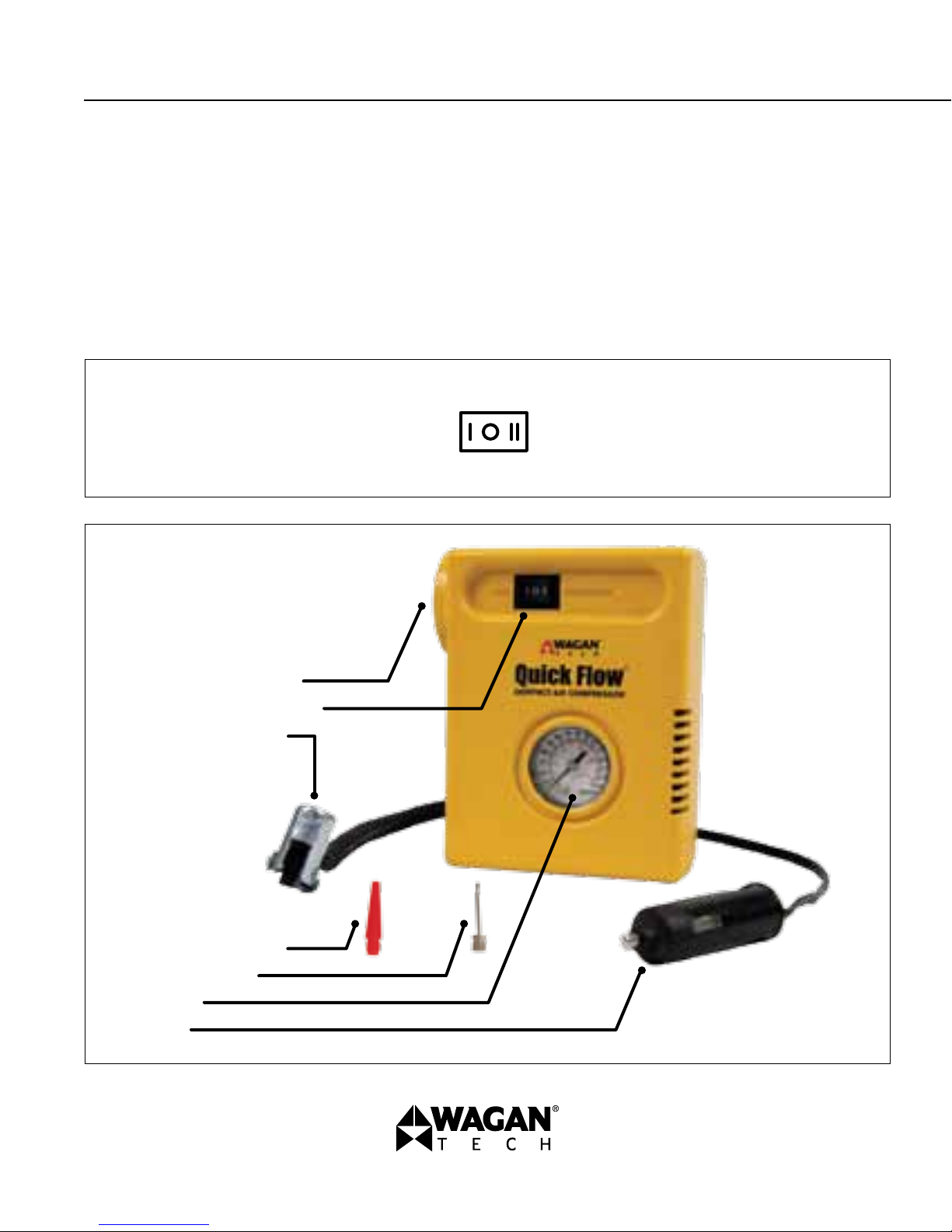

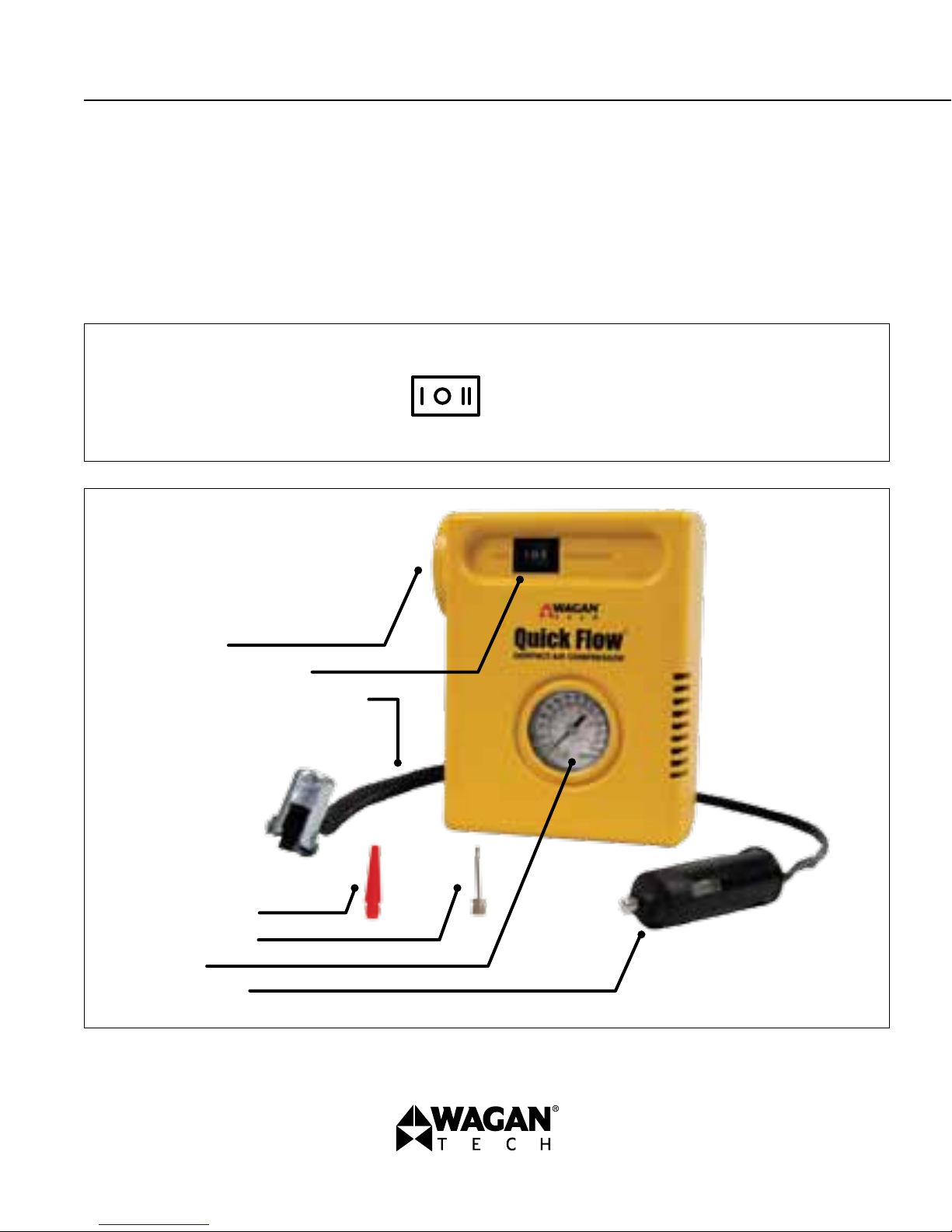

Power Switch
(Light) (Compressor)
(Off)
Worklight
Power Switch
Air Hose Nozzle
Adapter Tip
Sport Ball Needle
Air Pressure Gauge
DC Plug
1
www.wagan.com
User’s Manual—Read before using this equipment
SPECIFICATIONS
• Pressure Reader: 150 PSI GAUGE
• Air Hose: 18 inches
• 12V DC Cord: 10 feet
• Accessories: 2 nozzle adapters, 1 sports needle
• Power Required: 12V 13A DC
AIR COMPRESSOR OPERATION
WARNING: Do not overheat the unit! If the compressor is not pumping
a steady stream of air and appears sluggish or if metal fittings get too
warm to the touch, these are indicators that the compressor has been in
operation for too long. Immediately turn off the compressor and allow it
to cool for approximately 30 minutes before resuming operation. Never
leave compressor unattended while in use.
Do not over inflate items beyond their needs. Most car tires will inflate
properly between 30 and 35 psi depending upon the tire. Some racing
bicycle tires require pressure in excess of 75 psi. Other bicycle tires may
require substantially lower pressures. This unit is not fitted for highpressure tires such as those used on large commercial trucks.
Keep out of reach of children.
1. To achieve optimal performance, your vehicle’s engine should be
running when operating your air compressor.
2. Unwind power cord from the storage compartment of the unit and
insert the DC plug into the 12 Volt cigarette lighter socket of your
vehicle.
©2013 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
2
Quick Flow™ Compact Air Compressor by Wagan Tech
©2013 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
®
3. Pull out hose from compartment.
4. For vehicle tires: Place chuck over valve stem of tire with thumb
latch open in the vertical position.
For other inflatable items: Select the appropriate adaptor and
insert it into the hose nozzle. Make sure adapter and hose are
sealed tightly. Tip: When inflating athletic balls, moisten needle
before inserting it into the ball valve.

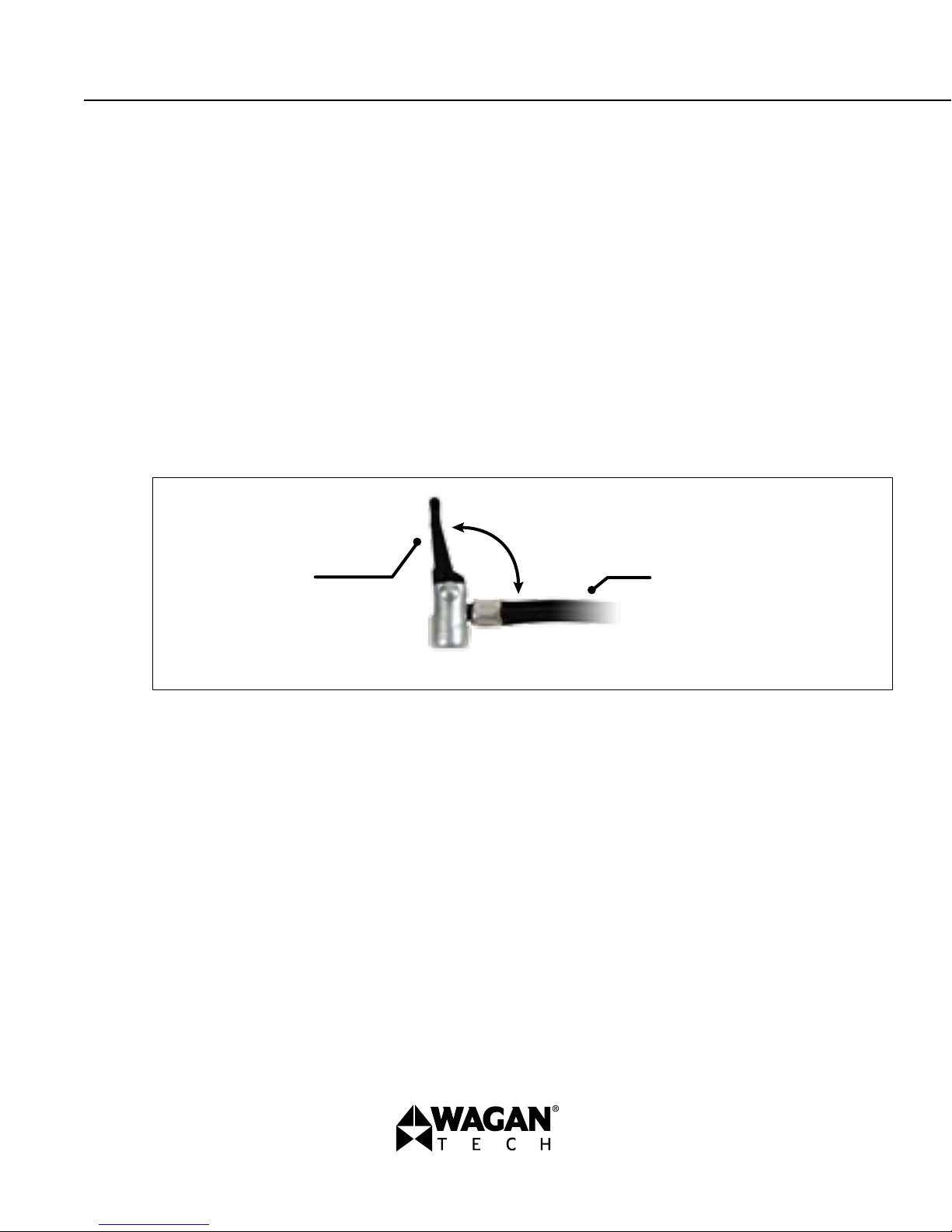

5. Push down firmly and lock into place by pressing thumb lever to
horizontal position.

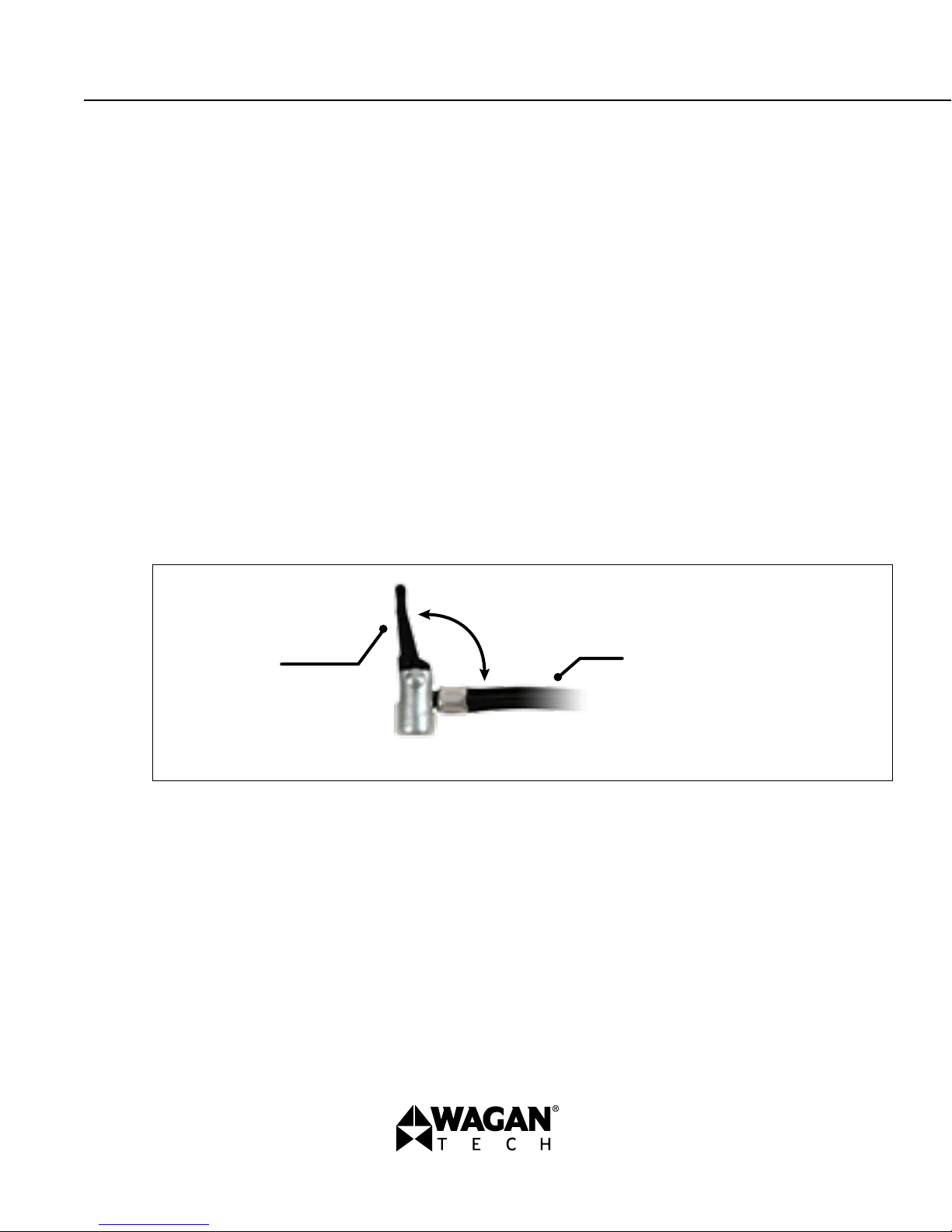

Unlock
Thumb Latch
Chuck
Lock
Lock valve stem connector
Air Hose
6. Turn compressor’s switch on to the "||" position and
monitor pressure using the built-in pressure gauge. DO NOT
OVERINFLATE PRODUCTS BEYOND THE MANUFACTURER’S
RECOMMENDATIONS.
NOTE: If your vehicle tire is completely deflated, it is possible that
the seal between the tire and the rim is broken, allowing air to
leak out when trying to inflate. In the event this situation occurs,
you will need to jack up your car prior to inflating the tire.
3
www.wagan.com
User’s Manual—Read before using this equipment
7. When desired pressure is reached, turn off compressor and
disconnect hose.
8. Unplug the power cord from 12 Volt socket and store the hose and
cord back into the unit.
NEVER LEAVE COMPRESSOR UNATTENDED WHILE IN USE.
WORK LIGHT
The Quick Flow™ Compact Air Compressor comes with a built-in work
light.
1. Unwind power cord from the storage compartment of the unit and
insert the DC plug into the 12 Volt cigarette lighter socket of your
vehicle.
2. Turn the power switch to "|" position to turn on the work light.
3. When finished, turn off the work light before unplugging the DC
power cord from your vehicle.
TROUBLE SHOOTING
COMPRESSOR DOES NOT START/BLOWS FUSES
1. Push the power plug firmly into the DC socket and twist it back
and forth to ensure clean contact.
2. Check DC socket for dirt and particles. Use a non-conductive
probe to clean the DC socket. Do not use your fingers or metal.
©2013 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
4
Quick Flow™ Compact Air Compressor by Wagan Tech
®
3. Check vehicle lighter fuse; should be 15 amps minimum.
4. Disconnect the connector and feel for air coming out of connector.
COMPRESSOR RUNS BUT DOES NOT INFLATE
1. Be sure the connector always touches the core of the valve stem.
2. Check article for leaks.
3. Check hose for breaks and leaks at fittings.
COMPRESSOR RUNS SLOWLY
1. Overheated from excessive use. Shut it off and let it cool for 30
minutes.
2. Voltage too low. Check condition of battery.
5
