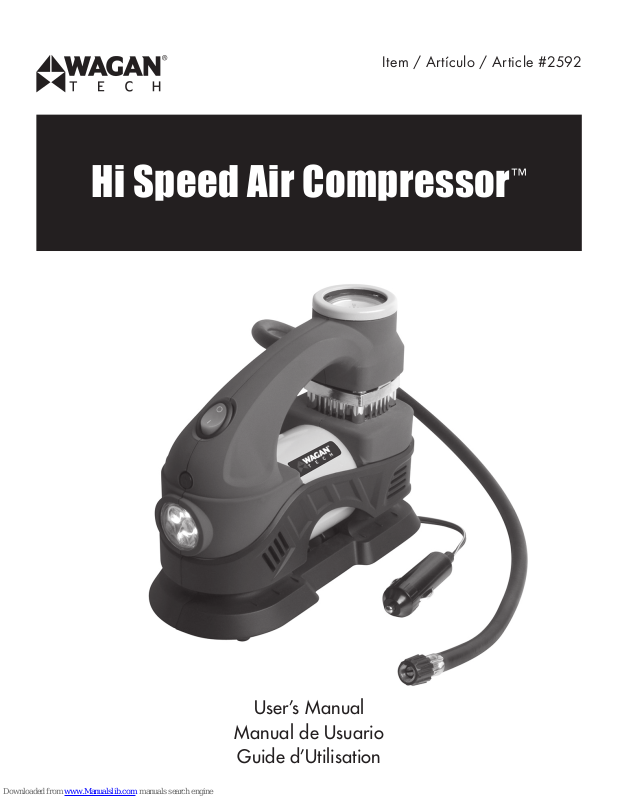

Wagan Hi Speed Air Compressor, 2592 User Manual

Item / Artículo / Article #2592

Hi Speed Air Compressor

™

User’s Manual

Manual de Usuario

Guide d’Utilisation

Hi Speed Air Compressor™ by Wagan Tech

©2012 Wagan Corporation. All Rights Reserved.

Wagan Tech and wagan.com are trademarks used by Wagan Corporation.

®

Thank you for purchasing the Hi Speed Air Compressor by Wagan Tech®. With
minimal care and proper treatment, it will provide years of reliable service.
Please read and understand all operating instructions carefully before use.

KEEP THIS USER MANUAL FOR FUTURE REFERENCE.

Features

• Superior quality and convenient to use.

• Streamlined shape with ergonomic design.

• High 35L/minute flow rate

• Light with 4 bright, energy-saving LEDs

• Strong, impact resistant rubber housing

• 12V DC powered

• High quality brass air nozzle

• Easy to use air pressure gauge

• Special winding design for cable and air hose makes the product
compact and protects the wire and air hose effectively.

• Offers a wide range of applications. Besides inflating auto tires, the
3 included adapter tips can be used for bicycles, motorcycles, sports
equipment and other inflatable items. Use it to keep your auto tires
inflated, help extend tire life and improve fuel efficiency. It can also be

used for sudden air leaks.

1

www.wagan.com

Heat Sink

User’s Manual—Read before using this equipment

Air Pressure

Gauge

Carrying

Handle

Compressor

Power Switch

Light Power

Switch

4 LED Light

12V DC

Adapter

Air Hose

Air Nozzle

©2012 Wagan Corporation. All Rights Reserved.

Wagan Tech and wagan.com are trademarks used by Wagan Corporation.

2

Hi Speed Air Compressor™ by Wagan Tech

©2012 Wagan Corporation. All Rights Reserved.

Wagan Tech and wagan.com are trademarks used by Wagan Corporation.

®

General Safety Rules

• Before using our product, please check the lighter socket (12V DC
output) to make sure there is no rust or any other residue in order to
prevent any damage or danger caused by poor conductivity and power
supply overheating.

• Please check the recommended air pressure of the vehicle tire and
carefully watch the pressure gauge while inflating to avoid over-inflating
your tire. The general pressure of most car tires is 2.5–3.0 kg/cm3.

• You should start the engine when using the air compressor to make sure
the battery capacity and pump work normally.

• Do not touch the metal heat sink or the air hose while in use or
immediately after use.

• After 15 minutes of continuous inflation, please have the product rest for
20 minutes and restart once it fully cools down.

• After use, please tuck the power cord and air hose into their locked slots
to prevent any damage to the cord or hose.

• Use only 12V direct current power sockets. Do not use product with any
other type of power source.

• Do not tangle the power cord together to avoid potential electrical
danger.

• If the unit emits abnormal noise while in use, please stop use
immediately and check for causes and problems.

• Keep away from children.

• Avoid dropping the product and/or cause severe impact to the air
compressor.

• Do not store or overexpose the unit to direct sunlight.

• Do not use in damp areas or around flammable materials.

• Do not attempt to make any modifications, disassemble or repair by
yourself or by any non-technicians.

3

www.wagan.com

User’s Manual—Read before using this equipment

Using the Air Compressor

1. Attach the air nozzle to the tire valve and tighten it clockwise.

2. Turn on the car engine.

3. Plug the 12V DC adapter into the cigarette lighter socket.

4. Press the Power Switch to ON to start the air compressor. Carefully
observe the air pressure using the Pressure Gauge and press the Power
Switch to OFF once the desired PSI level is reached.

5. Twist the air nozzle off the tire valve counter-clockwise and remove the
12V Adapter out from the cigarette lighter socket.

6. Turn off the car engine.

7. Wrap the wire and air hose and tuck them into their locking slots.

Attach Nozzle

to tire valve.

Plug DC Adapter

into power socket.

Turn on compressor,

check pressure gauge.

4-LED Light

The Hi Speed Air Compressor features a 4-LED light in the front to help while
working at night. Simply press the Light button just above the light to turn it on.
Press it again to turn off. It requires the 12V DC adapter to be plugged in and

powered.

©2012 Wagan Corporation. All Rights Reserved.

Wagan Tech and wagan.com are trademarks used by Wagan Corporation.

4

Hi Speed Air Compressor™ by Wagan Tech

®

Specifications

Working Voltage 12V DC
Rated Power 180W (15 Amps)
Max Run Time 15 minutes
Flow Rate 35 L/min (1.24 ft³/min)
Air Hose 60 cm (23.6 in)
DC Power Cord 3 m (10 ft)
Max PSI 100
Weight 1.55 Kg (3.42 lbs)
