Wagan Elite 2000W User Manual
Item no. 2205
User’s Manual
Elite™ 2000W—Pure Sine Inverter by Wagan Tech
User’s Manual—Read before using this equipment
Introduction
Thank you for purchasing this Wagan Pure Sine Wave DC to AC Power
Inverter. It delivers a true sine wave AC identical to that of commercial power.
Use this inverter to power AC appliances in your vehicle, at a campsite, or
at home as an emergency source of AC power. Pure Sine Wave AC means
that your sensitive electronics such as audio/video systems, computers, and
communications equipment will operate properly. This inverter is powered
from 12 volts DC and it will continuously deliver 2,000 watts AC power at 115
Volts, 60 Hz.
For your convenience, this inverter is supplied with a wireless remote control

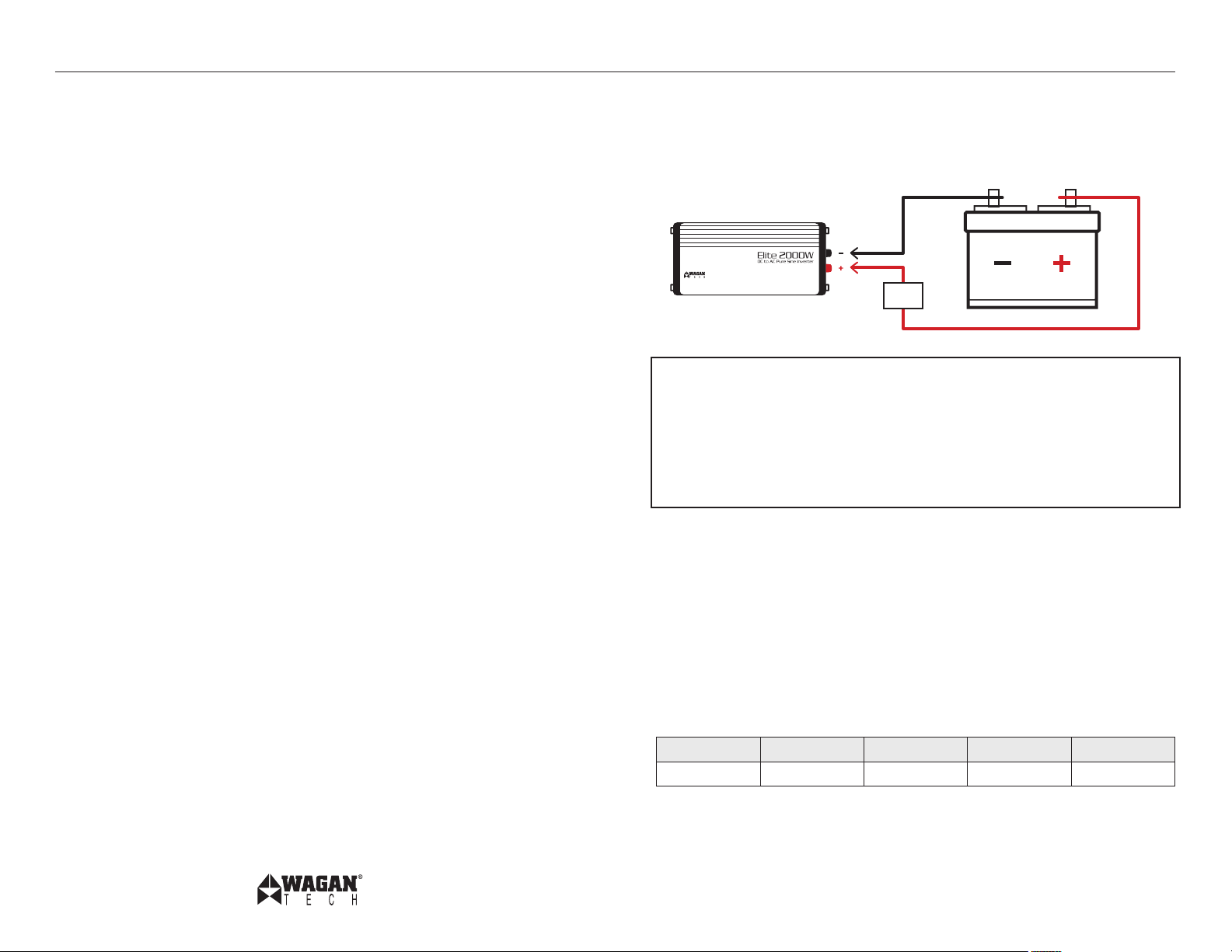

and a set of cables. The installer must install a fuse and fuse holder for battery
protection. See Configuring Battery Bank section.
This Wagan 2,000 watt Pure Sine Wave Inverter is an indispensable addition
to your compliment of mobile power equipment. With minimal care and
proper treatment it will provide years of reliable service. Please read and
understand this manual before installing and operating this inverter. Keep this
manual for future use.
About This Inverter.
This power inverter converts 12 volts, direct current (12V DC) to 115
volts alternating household current (115V AC). It easily powers TV/VCR
combinations, small microwave ovens, and refrigerators. It also operates at
high efficiency (up to 90%) that results in long running time and extended
battery life compared to other inverters with this level of power output.
General Instructions:
• Keep the inverter away from any direct heat source or combustible
materials.
• Keep well ventilated–this device generates heat.
• Keep the inverter away from combustible gases.
• Do not continuously operate any equipment over 2,000 watts.
• This inverter is designed to operate from a 12 volt DC power source
only.
• Do not attempt to connect the inverter to any other power source,
including any AC power source.
• Incorrect battery polarity will damage the inverter and void the warranty.
• Keep this inverter in a dry environment.
• Do not open the inverter; there are no user serviceable parts inside.
SAFETY WARNING!
The i nverTer ouTpuT can be leThal. improper use of This inverTer may
resu lT in properTy damage, personal injury, or loss of life.
This inverter has the highest surge capability in its class. Superior surge
capability of 4,000 watts allows the inverter to start most difficult motorized
appliances. Advanced microprocessor-controlled circuits run cooler and are
more reliable than competing units.
1
www.wagan.com
Wagan Tech and wagan.com are trademarks used by Wagan Corporation
©2012 Wagan Corporation. All Rights Reserved.
2
Elite™ 2000W—Pure Sine Inverter by Wagan Tech
User’s Manual—Read before using this equipment
Product Features
Front Panel
The Front Panel view shows the inverters ON/OFF Switch, Indicators, AC
Outlets, and Ground Terminal.
• ON/OFF Switch
This switch controls AC output of the inverter.
• The FAULT indicator turns RED as the inverter shuts down because of:
Excessive Temperature, Overload, Under Voltage or Over voltage.
Immediately turn off all AC appliances if the FAULT LED is lit. Allow the
inverter to cool before continuing. Make sure that the ventilation vents
are not blocked.
If an inverter “shutdown” was preceded by a buzzing sound, there may
excessive load, in combination with a low voltage or cable problem.
Observe the Digital Display for low battery voltage. Normal operating
range is 10.5V to 15V DC.
• Digital Display: Press the green Display Mode Selector button to change
current display mode. The Green LEDs will light correspondingly.
• Output Voltage: Displays DC output load.
• Input Voltage: Displays DC input that the inverter senses at its terminals. Low battery, excessive load for the cables can cause a low
voltage reading and inverter shutdown. Low battery is also indicated
when the Audible Alarm sounds.
• Output Power: Shows the “Percent of Load that the inverter can
handle”. If the inverter has excessive load “OVL” will be displayed.
• Audible Alarm (internal to the inverter)
When the audible Alarm makes a buzzing sound, the inverter senses a
low battery condition. The user should reduce the AC load, charge the
battery, and check the DC cable or excessive losses.
Front Panel
Display Mode
ON/OFF Switch
Display Mode Selector
Fault indicator (Red)
Digital Display
AC Outlets
Remote On/OFF Switch
This inverter is supplied with a 100-foot range battery-powered wireless
remote ON/OFF feature. To enable the Remote Switch, the front panel On/Off
Switch must be in the On position.
To turn On the inverter, momentarily press ON. To turn the inverter Off,
momentarily press “Lock”. If the wireless remote fails to control operation of
the inverter, you may be out of range for the radio signal—move closer to
the inverter. If the Remote Switch has a depleted battery, open the unit by
unscrewing the three small screws on the back side of the remote control and
replace the 12 volt model 23A alkaline battery with a new one.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation
3
www.wagan.com
©2012 Wagan Corporation. All Rights Reserved.
4
Elite™ 2000W—Pure Sine Inverter by Wagan Tech
Retractable
Antenna
ON switch
OFF switch
User’s Manual—Read before using this equipment
Rear Panel
Sliding Cap
Retracted Antenna Extended Antenna
Rear Panel
• Positive Terminal (red): Positive DC Input
• Negative Terminal (black): Negative DC Input
• Cooling Fans: High-speed and temperature controlled
Negative Terminal (black)
Positive Terminal (red)
Cooling Fans
Load Considerations
When an appliance with a motor starts, it requires a momentary surge of
power. This surge of power is the “starting load” or “peak load”. Once started,
the appliance requires less power to continue to operate. This is known as the
“continuous load”. It is important to know the starting loads and the continuous
loads of the appliances that are to be powered by the inverter.
Appliance power is rated in watts. This information is usually stamped or
printed on most appliances and equipment. In some cases, a tool will be rated
in amperes. To convert from amps to watts, multiply:
Amps x 115 (AC voltage) = Watts
This formula yields an approximation of the continuous wattage load of that
appliance.
The startup load of an appliance is a major factor of whether this inverter can
power it.
