Pro Line 1500 Watt Power Inverter by Wagan Tech
USER’S MANUAL — Please read before using this equipment.
_______________________________________________________________________________________________________________________
Your 1500 Watt Power Inverter converts 12-volt vehicle
battery power into 115 volts of AC power. You can use
the inverter in your vehicle to operate many types of
appliances that use AC power such as TVs, VCRs,
portable computers, power tools, and lights for
emergency or camping use.
The inverter works with your vehicle’s engine turned on
or off (accessory mode). It provides a continuous output
of up to 1500 watts.
BASIC OPERATION
x Use the right operating voltage for both input and
output of the inverter.
x Powering devices by connecting
Պ from inverter to
Պ of battery terminal and connect Ջ from inverter to
Ջ of battery terminal.
appliances from inverter and disconnect the inverter
from power supply. The beeping sound is simply the
low battery warning, which indicates that the voltage
of the battery power supply is getting low. Please
restart the vehicle engine before operating the
power inverter.
x When you are not using the inverter, turn the power
switch to OFF and disconnect the inverter from
power supply.
x Disconnect the inverter when starting the vehicle’s
engine.
x Insert the plug of your appliances into AC socket at
the front of the inverter.
x Turn ON the power switch that is located at the front
of the inverter, and the green LED light will light as
indicator that the unit at work.
CAUTION:
x DO NOT USE THE INVERTER IN A POSITIVELY
GROUNDED VEHICLE.
RECOMMENDATION
x If the power inverter makes a beeping sound, turn
OFF the power inverter and disconnect all
www.wagan.com
© 2003 Wagan Corporation.
All Rights Reserved.
Wagan and Wagan.com are trademarks used by Wagan Corporation.
Printed in China
2
Pro Line 1500 Watt Power Inverter by Wagan Tech
USER’S MANUAL — Please read before using this equipment.
_______________________________________________________________________________________________________________________

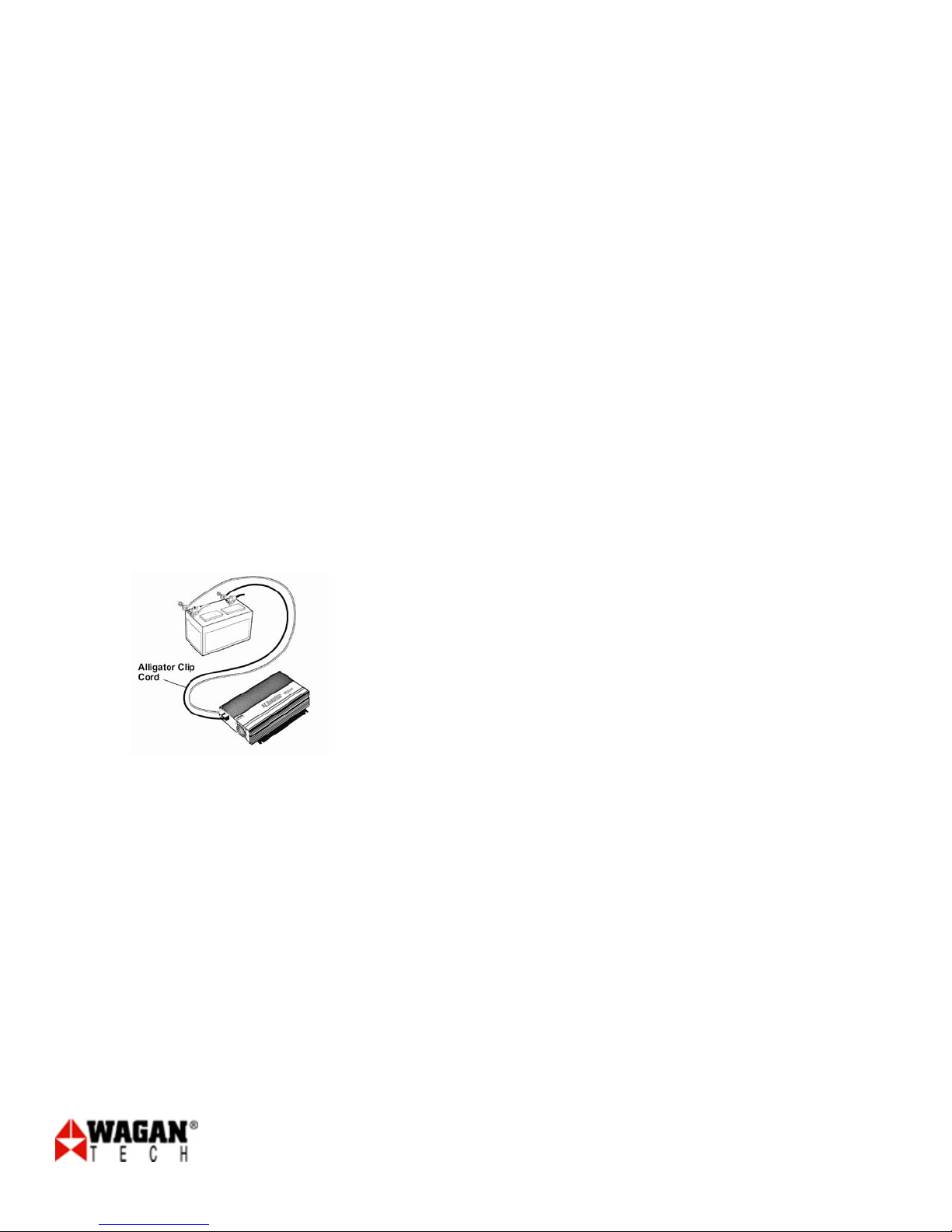

BATTERY USE
x If you choose to connect the inverter directly to your
battery terminals, it is important to connect with right
polarity (connect
terminal and connect
Պ from inverter to Պ of battery
Ջ from inverter to Ջ of battery
terminal)
CAUTION:
THE FOLLOWINGS OPERATION WILL DAMAGE AND
VOID THE WARRANTY OF THE INVERTER:
x REVERSE POLARITY BY CONNECTING THE
WIRES TO THE INCORRECT TERMINALS.
x CONNECTING THE BATTERY CHARGER TO
REPLENISH BATTERY WITHOUT
DISCONNECTING THE INVERTER FIRST.
x CONNECTING THE INVERTER TO POWER
SOURCE GREATER THAN 15-VOLT DC.
x OPERATING THE INVERTER AND BATTERY IN
OR AROUND WATER.
MEASURING THE AC VOLTAGE

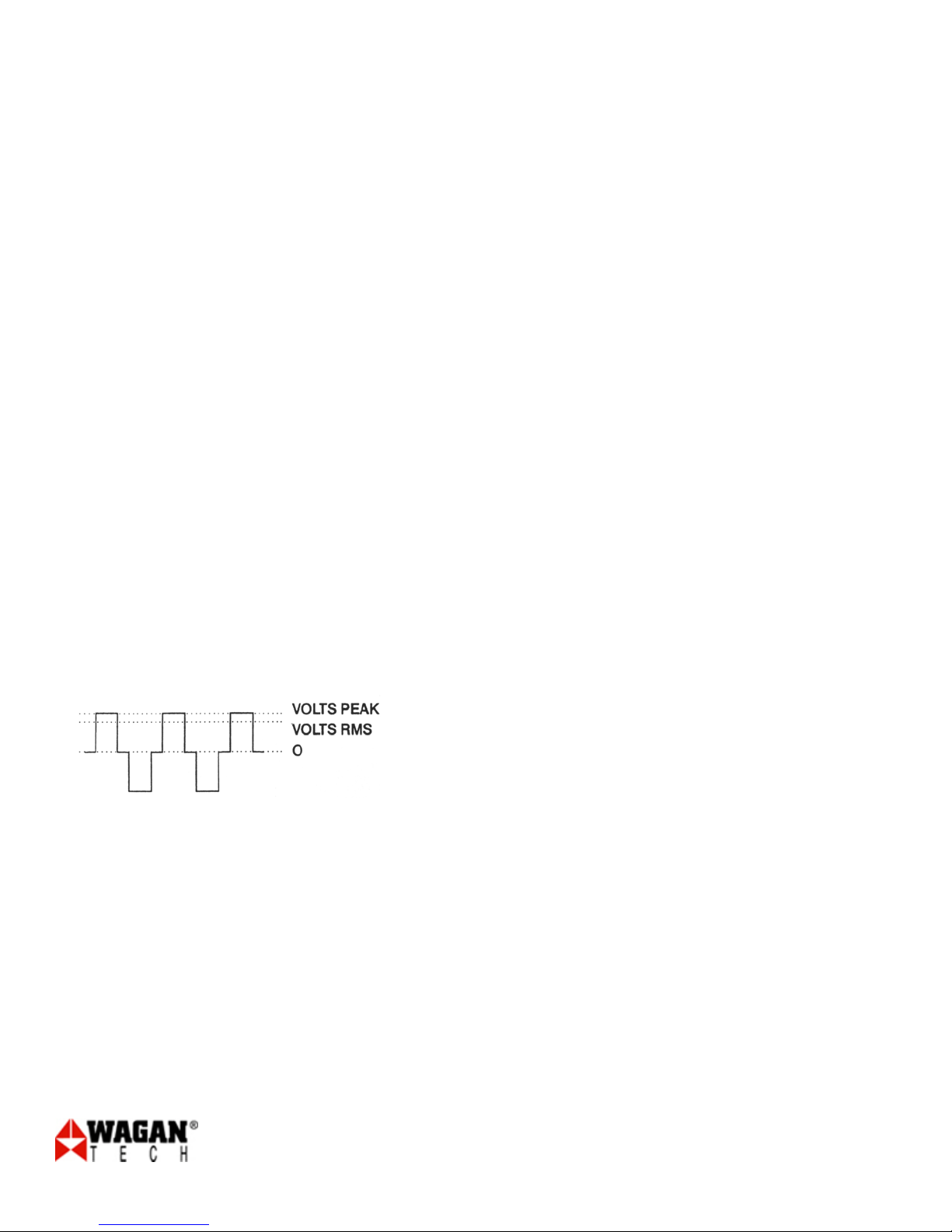

The output waveform of the AC inverter is a MODIFIED
SINEWAVE. To measure the AC output voltage, you
must use a TRUE RMS VOLTMETER.
SAFETY PRECAUTION
Do not open the case of the inverter. The high voltage
inside the unit is the same type of power as your
electrical outlets at home.
Do not let the cord of the inverter or any appliance’s cord
get wet.
Do not operate the inverter in or around water. The
voltage of the unit makes electrical shock hazard if
operated in wet conditions.
Do not connect the AC inverter directly to another AC
power source.
Keep it away from children, the inverter produces power
just like your AC wall outlets at home and should be
treated seriously.
Allow at least 1 inch of clearance around the inverter for
airflow.
If you operate the inverter in a moving vehicle, you need
to secure the inverter to prevent it from shifting around
while the vehicle is moving.
If there is anything wrong with the inverter, disconnect all
of the power.
www.wagan.com
© 2003 Wagan Corporation.
All Rights Reserved.
Wagan and Wagan.com are trademarks used by Wagan Corporation.
Printed in China
3
Pro Line 1500 Watt Power Inverter by Wagan Tech
USER’S MANUAL — Please read before using this equipment.
_______________________________________________________________________________________________________________________
TROUBLESHOOTING
Condition Solution
Poor contact Clean contact parts thoroughly
Battery voltage is
too low
Start the engine to recharge the
battery. Replace the battery if
needed.
Shutdown on
Reduce the wattage of inverter’s load
overload
Thermal shutdown Allow the inverter to cool down by
reducing the load or turn it off for a
while.
Receptacle has no
Check the receptacle wiring.
power
MAINTENANCE
Very little maintenance is required to keep the inverter
operating properly.
DESCRIPTION
3500W Peak Power — allow you to power appliances
that require a large amount of initial (peak) power to
work (such as many TVs and motor-power equipments).
Low Battery Alarm — the inverter sounds an audible
alarm then turns itself off if the source battery becomes
too low.
Auto Shutdown/Reset Protection — the inverter shuts
itself down to protect from low battery drained.
Overload/Short Circuit Protection — the inverter
automatically turns itself off if the connected load is too
high or if it shorts.
HEAT DISPERSAL
The inverter generates heat while it is working. This is
not a malfunction. However, if the inverter gets too hot
while working, it will turn off by itself.
Position the inverter where air flows freely around it to
allow the heat to disperse.
The inverter’s thermal protection prevents it from
operating when its temperature exceeds 130 ± 10 qF / 55
± 5 qC.
SPECIFICATION
Name Description
Input 12V (10-15V) DC
Output 115V AC
Output frequency 60 Hz
Output waveform Modified Sine Waveform
Continuous power 1500 Watt
Surge power 3500 Watt
Efficiency Approx. 90 %
No load current < 0.3 A
Battery low alarm 10.5 ± 0.5 V DC
Battery low shutdown 10 ± 0.5 V DC
AC output socket 2 outlets of 3-prong
Power switch DC input ON/OFF control
Dimensions 17x9.5x3 in³
Net Weight 11.2 lb
NOTE
All specifications are typical at nominal line, half load,
and 77qF25q C unless otherwise noted. Specifications
are subject to change without notice.
Fuse — the inverter comes with fuse/s already installed
and easily changed if it is damaged.
Dual AC Outlets — allows you to power up to two
appliances at the same time.
www.wagan.com
© 2003 Wagan Corporation.
All Rights Reserved.
Wagan and Wagan.com are trademarks used by Wagan Corporation.
Printed in China
4
WAGAN Corp. Limited Warranty Registration Form
