Pro Line 300 Watt Power Inverter by Wagan Tech

USER’S MANUAL — Please read before using this equipment.

_______________________________________________________________________________________________________________________

Your 300 Watt Power Inverter converts 12-volt vehicle
battery power into 115 volts of AC power. You can use
the inverter in your vehicle to operate many types of
appliances that use AC power such as TVs, VCRs,
portable computers, power tools, and lights for
emergency or camping use.

The inverter works with your vehicle’s engine turned on
or off (accessory mode). It provides a continuous output
of up to 300 watts.

BASIC OPERATION

x Use the right operating voltage for both input and

output of the inverter.

x Powering devices with power rating:

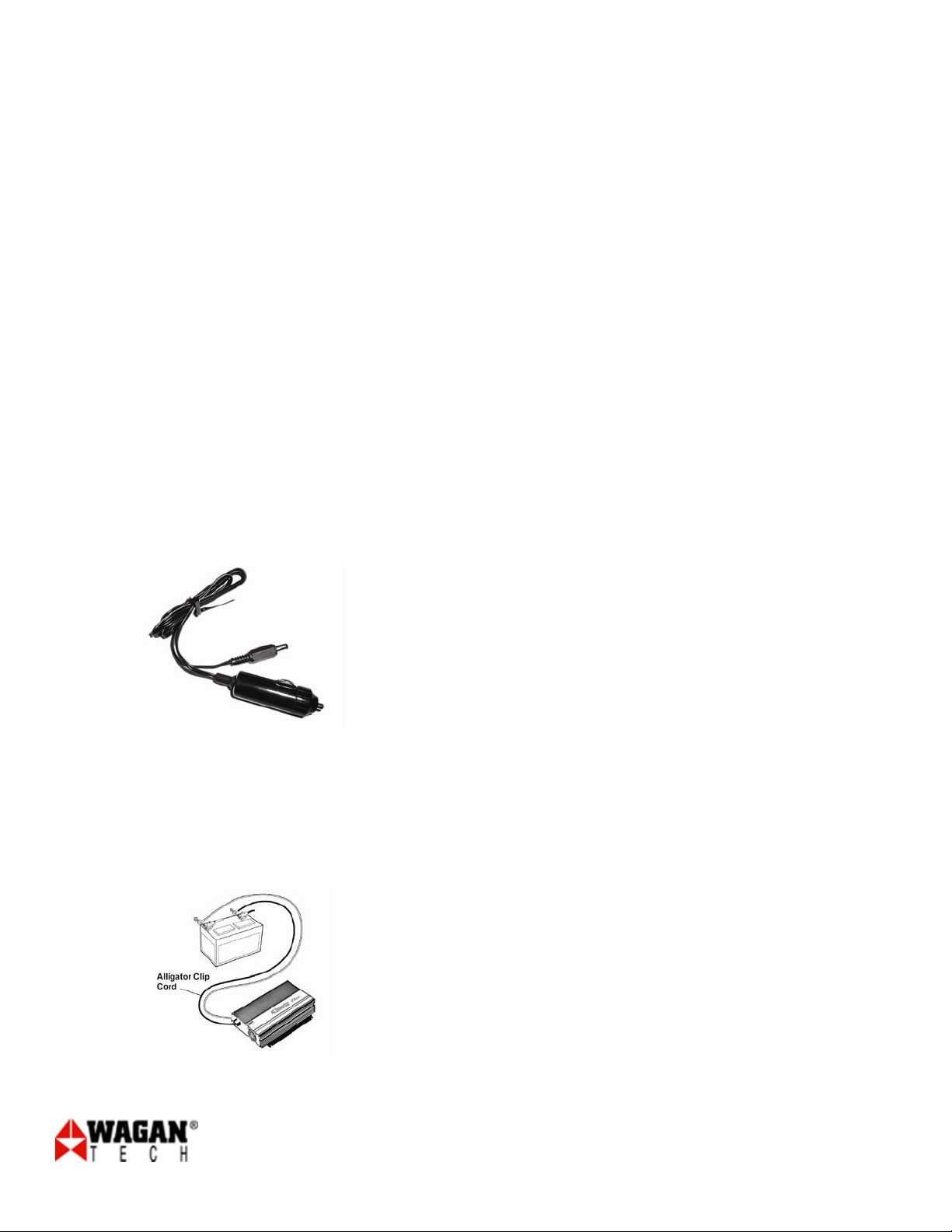

o Less than 150 Watts by connecting the

cigarette lighter plug into the vehicle’s
cigarette lighter socket.

o More than 150 Watts by connecting

Պ from

x Insert the plug of your appliances into AC socket at

the front of the inverter.

x Turn ON the power switch that is located at the front

of the inverter, and the green LED light will light as
indicator that the unit at work.

CAUTION:

x DO NOT USE THE INVERTER IN A POSITIVELY

GROUNDED VEHICLE.

x DO NOT POWER MORE THAN 150 WATT WHEN

THE POWER INVERTER IS CONNECTED TO THE
CAR CIGARETTE LIGHTER SOCKET POWER
SUPPLY. DOING SO MIGHT DAMAGE YOUR
CAR'S FUSE. MISUSE WOULD VOID THE
WARRANTY.

RECOMMENDATION

x If the power inverter makes a beeping sound, turn

OFF the power inverter and disconnect all
appliances from inverter and disconnect the inverter
from power supply. The beeping sound is simply the
low battery warning, which indicates that the voltage
of the battery power supply is getting low. Please
restart the vehicle engine before operating the
power inverter.

x When you are not using the inverter, turn the power

switch to OFF and disconnect the inverter from
power supply.

x Disconnect the inverter when starting the vehicle’s

engine.

inverter to

Ջ from inverter to Ջ of battery terminal.

www.wagan.com

Պ of battery terminal and connect

© 2003 Wagan Corporation.

All Rights Reserved.

Wagan and Wagan.com are trademarks used by Wagan Corporation.

Printed in China

2

Pure Sine Wave Line 300 Watt Power Inverter by Wagan Tech

USER’S MANUAL — Please read before using this equipment.

_______________________________________________________________________________________________________________________

BATTERY USE

x To avoid over-discharging your vehicle’s battery, you

should run your engine for 10-20 minutes to
recharge the vehicle’s battery after 2-3 hours of
operating the inverter.

x If you choose to connect the inverter directly to your

battery terminals, it is important to connect with right

polarity (connect

terminal and connect
terminal)

CAUTION:

THE FOLLOWINGS OPERATION WILL DAMAGE AND
VOID THE WARRANTY OF THE INVERTER:
x REVERSE POLARITY BY CONNECTING THE

WIRES TO THE INCORRECT TERMINALS.

x CONNECTING THE BATTERY CHARGER TO

REPLENISH BATTERY WITHOUT
DISCONNECTING THE INVERTER FIRST.

x CONNECTING THE INVERTER TO POWER

SOURCE GREATER THAN 15-VOLT DC.

x OPERATING THE INVERTER AND BATTERY IN

OR AROUND WATER.

MEASURING THE AC VOLTAGE

Պ from inverter to Պ of battery

Ջ from inverter to Ջ of battery

SAFETY PRECAUTION

Do not open the case of the inverter. The high voltage
inside the unit is the same type of power as your
electrical outlets at home.

Do not let the cord of the inverter or any appliance’s cord
get wet.

Do not operate the inverter in or around water. The
voltage of the unit makes electrical shock hazard if
operated in wet conditions.

Do not connect the AC inverter directly to another AC
power source.

Keep it away from children, the inverter produces power
just like your AC wall outlets at home and should be
treated seriously.

Allow at least 1 inch of clearance around the inverter for
airflow.

If you operate the inverter in a moving vehicle, you need
to secure the inverter to prevent it from shifting around
while the vehicle is moving.

If there is anything wrong with the inverter, disconnect all
of the power.

The output waveform of the AC inverter is a Pure Sine
Wave.

© 2003 Wagan Corporation.

All Rights Reserved.

Wagan and Wagan.com are trademarks used by Wagan Corporation.

3

www.wagan.com

Printed in China

Pro Line 300 Watt Power Inverter by Wagan Tech

USER’S MANUAL — Please read before using this equipment.

_______________________________________________________________________________________________________________________

TROUBLESHOOTING

Condition Solution

Poor contact Clean contact parts thoroughly
Battery voltage is
too low

Start the engine to recharge the
battery. Replace the battery if
needed.

Shutdown on

Reduce the wattage of inverter’s load
overload
Thermal shutdown Allow the inverter to cool down by

reducing the load or turn it off for a

while.
Receptacle has no

Check the receptacle wiring.
power

MAINTENANCE

Very little maintenance is required to keep the inverter
operating properly.

DESCRIPTION

800W Peak Power — allow you to power appliances
that require a large amount of initial (peak) power to
work (such as many TVs and motor-power equipments).

Low Battery Alarm — the inverter sounds an audible
alarm then turns itself off if the source battery becomes
too low.

Auto Shutdown/Reset Protection — the inverter shuts
itself down to protect from low battery drained.

Overload/Short Circuit Protection — the inverter
automatically turns itself off if the connected load is too
high or if it shorts.

HEAT DISPERSAL

The inverter generates heat while it is working. This is
not a malfunction. However, if the inverter gets too hot
while working, it will turn off by itself.
Position the inverter where air flows freely around it to
allow the heat to disperse.
The inverter’s thermal protection prevents it from
operating when its temperature exceeds 130 ± 10 qF / 55
± 5 qC.

SPECIFICATION

Name Description

Input 12V (10-15V) DC
Output 115V AC
Output frequency 60 Hz

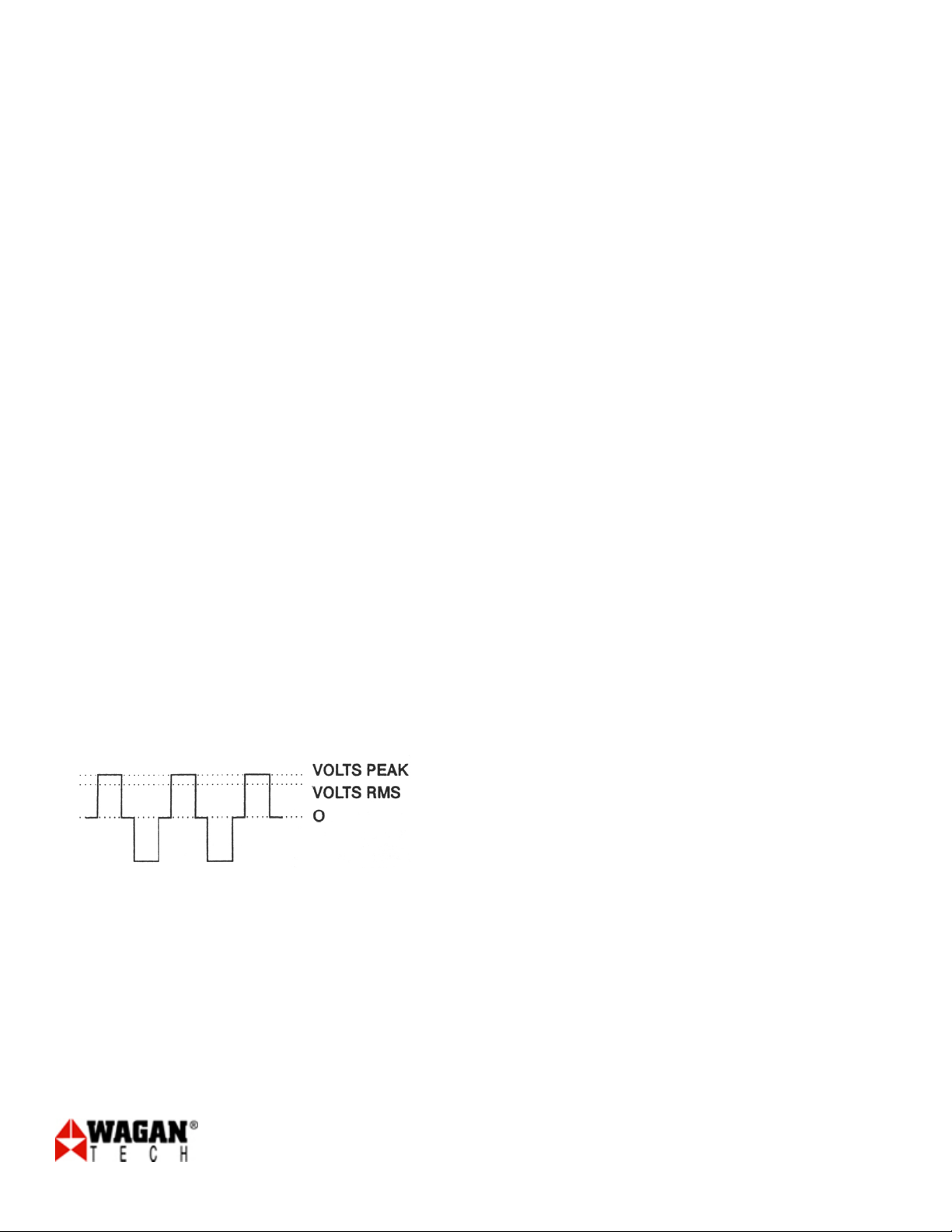

Output waveform Modified Sine Waveform
Continuous power 300 Watt
Surge power 800 Watt
Efficiency Approx. 90 %
No load current < 0.3 A
Battery low alarm 10.5 ± 0.5 V DC
Battery low shutdown 10 ± 0.5 V DC
AC output socket 2 outlets of 3-prong
Power switch DC input ON/OFF control
Dimensions 8.6x4x2.2 in³
Net Weight 2.2 lb

NOTE

All specifications are typical at nominal line, half load,
and 77qF25q C unless otherwise noted. Specifications
are subject to change without notice.

Fuse — the inverter comes with fuse/s already installed
and easily changed if it is damaged.

Dual AC Outlets — allows you to power up to two
appliances at the same time.

www.wagan.com

© 2003 Wagan Corporation.

All Rights Reserved.

Wagan and Wagan.com are trademarks used by Wagan Corporation.

Printed in China

4

WAGAN Corp. Limited Warranty Registration Form
