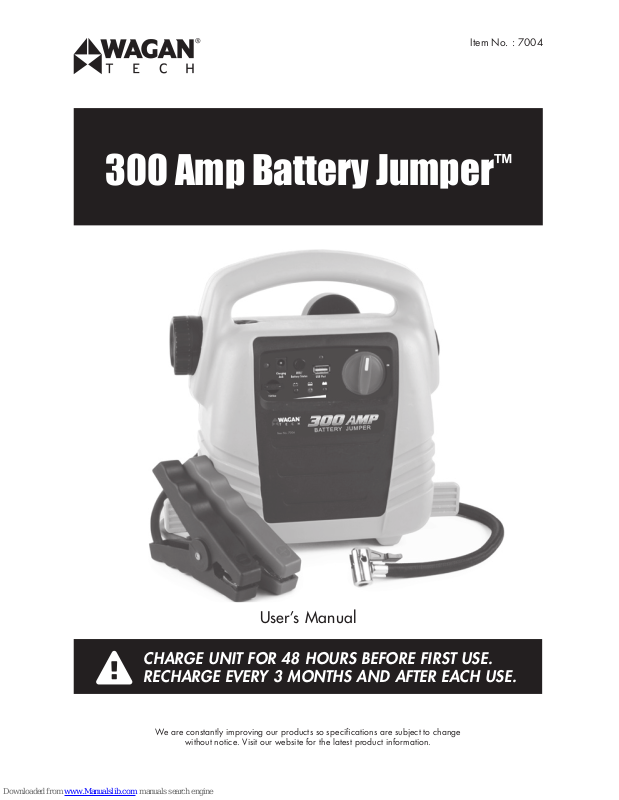

Wagan 7004 User Manual

300 Amp Battery Jumper
Item No. : 7004
Us er’s M an ua l
CHARGE UNIT FOR 48 HOURS BEFORE FIRST USE. RECHARGE EVERY 3 MONTHS AND AFTER EACH USE.
We are constantly improving our products so specifications are subject to change
300 Amp Battery Jumper™ by Wagan Tech
®
www.wagan.com
2
CONTENTS
Important Information ���������������������������������������������������������������������������������������������������������������� 3
General Warnings ���������������������������������������������������������������������������������������������������������������������� 3
Storage �������������������������������������������������������������������������������������������������������������������������������������� 3
Proper Disposal �������������������������������������������������������������������������������������������������������������������������� 3
Product Features ������������������������������������������������������������������������������������������������������������������������ 4
Specifications ����������������������������������������������������������������������������������������������������������������������������� 4
Front View ��������������������������������������������������������������������������������������������������������������������������������� 5
Charging the Battery Jumper ������������������������������������������������������������������������������������������������������ 7
AC Charging .................................................................................................................. 7
DC Charging in Your Vehicle or Boat ................................................................................ 7
Jump Starter ������������������������������������������������������������������������������������������������������������������������������ 8
Warnings ....................................................................................................................... 8
Procedure ...................................................................................................................... 8
Air Compressor �������������������������������������������������������������������������������������������������������������������������� 9
Procedure ...................................................................................................................... 9
DC Output Socket ��������������������������������������������������������������������������������������������������������������������� 10
USB Power Port ������������������������������������������������������������������������������������������������������������������������ 10
Worklight ����������������������������������������������������������������������������������������������������������������������������������11
©2016 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
User’s Manual—Read before using this equipment
3
Thank you for purchasing the 300 Amp Battery Jumper™ by Wagan Tech®. With normal care and proper treatment, it will provide years of reliable service.
IMPORTANT INFORMATION
• Please read and understand all warnings, cautions, and notes included in this manual before using the 300 Amp Battery Jumper™ Follow instructions provided by your vehicle manufacturer and other devices intended to be used with this unit. Keep these instructions for future reference.
• Make sure the Battery Jumper is fully charged before first use. We recommend 48 hours for initial charge.
GENERAL WARNINGS
• This appliance is NOT intended for use by persons with reduced physical, sensory, or mental capabilities.
• Children or persons lacking in experience and knowledge also should NOT operate this appliance unless he/she has been given supervision or instruction concerning the proper usage and warnings of the appliance by a person responsible for their safety.
• For proper and safe operation of any accessory outlet, do not place anything in it except the plug of the accessory to be used.
• Use only the chargers, cables, and clamps provided. Unauthorized parts may damage the unit.
• This product has no consumer serviceable parts other than the external fuse. Do not
attempt to open the unit’s enclosure, doing so will void the warranty.
STORAGE
This unit may be stored in any position. Make sure the clamps and air hose are securely tucked away in their original positions. Store in a cool, dry area. If the unit is not used for a prolonged period of time, recharge every 3 months.
PROPER DISPOSAL
• Appliance, accessories, and packaging should be recycled in an environmentally friendly manner. Plastic parts are coded for purposes of separation when recycling.
• Accumulators and battery-powered electrical appliances contain materials which are harmful to the environment. Do not dispose of batteries and/or electric/electronic appliances in normal household refuse. When the battery has reached the end of its lifetime, please take the entire unit to a battery recycling facility.
300 Amp Battery Jumper™ by Wagan Tech
®
www.wagan.com
4
PRODUCT FEATURES
• Powerful jump starter with heavy-duty cables and clamps.
• LED indicator for checking battery status.
• High- pressure air compressor for inflating tires and sports equipment with easy-read analog pressure gauge.
• DC accessory outlet for powering DC appliances.
• One USB power port for charging mobile devices.
• Bright, long-lasting LED worklight.
• AC/DC recharging adapter & DC recharging cable (fused) included.
SPECIFICATIONS
Battery AGM Sealed lead acid, 12V, 7Ah
Peak Amps 300A
Jumper Cables 6 AWG
Air Compressor 150 PSI, analog gauge
DC Socket 12V, 15A max, 180W
USB Power Port 5V, 500 mA
Work Light 4-LED
Charging Time (AC) 48 hours
Charging Time (DC—with engine running) 12 hours
Dimensions HxWxD (inches) 10 x 10.25 x 6
Weight (lb) 8.25
AC Charging Adapter Output 15V, 500mA DC
