Item No. : 2621

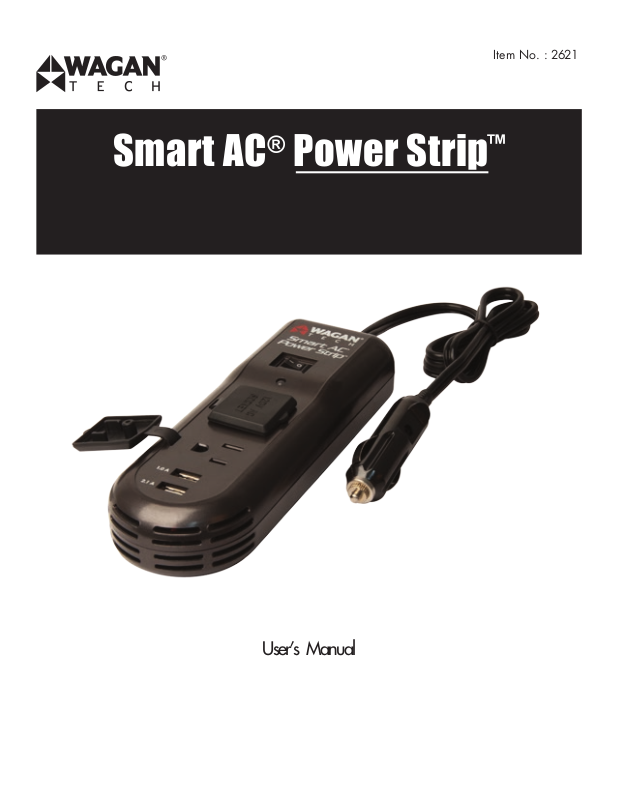

Smart AC® Power Strip
User’s Manual
™
Page 2
Smart AC® Power Strip™ by Wagan Tech
Thank you for purchasing Smart AC® Power Strip™ Inverter by Wagan Tech®.
With normal care and proper treatment, it will provide years of reliable service. It
is important to read, understand, and comply with these instructions before using
this inverter. Keep this User’s Manual for future reference.
This inverter is powered from a 12 volt DC source and provides 120 volts AC 60
Hz through two North American standard outlets to AC appliances up to 120
watts. The AC waveform is a modified sine wave (MSW), which approximates
the sine wave of household electrical service. An attached DC power cord
connects to a 12V DC cigarette lighter socket for easy operation.
®
WARNINGS
Most vehicle cigarette lighter sockets are fused at 10A or 15A. When using a
vehicle cigarette lighter socket, do not exceed 120W or 180W respectively.
Doing so will blow the vehicle cigarette socket fuse.
•Keep the inverter away from children.
•Electrical shock hazard: Don’t operate the inverter with wet hands!
•This device produces a voltage similar to wall outlets at home and should be
treated with the same caution.
•
ou use a battery charger to recharge your battery, be sure to disconnect
If y
the inverter first. Failure to disconnect the inverter prior to connecting a
charger may result in an input voltage spike that can damage the inverter.
Pow
•
ering this inverter with voltage greater than 15V DC can damage the
inverter and void the warranty.
Do n
•
ot use an extension cord between the DC power source and the DC
input of the inverter. An extension cord on the DC input can create a voltage
drop that can reduce efficiency and output.
Do n
•
ot open the casing of the inverter. There are no serviceable parts inside.
Do n
•
ot let the cord of the inverter or any appliance cord get wet. Don’t
operate this inverter in or around water. Water can damage the inverter.
Water damage is not covered under warranty.
Page 3
User’s Manual—Read before using this equipment
FEATURES
This inverter has features that will prevent your battery from being completely
discharged. When the battery’s voltage falls below 10V the Power Strip will shut
down automatically.
•Run and charge your electronics in your car, truck, boat, or RV.
2 US
•
B power ports to charge and run your mobile phones, tablets, e-readers,
and other electronics.
2 AC o
•
•Safety features include: Over-voltage, overload, short-circuit, high-
utlets for powering laptops, DVD players, game consoles, digital
cameras, and more!
temperature protection, and low voltage shut-off.
SPECIFICATIONS
• Continuous Power: 120W
• Peak Surge Power: 200W
• DC Input Voltage: 10V to 15V
• AC Output: 115V ± 5V, 60 Hz
• AC Output Waveform: modified sine wave
• USB Output: 5V, 3.1A total
• Optimum Efficiency: 85%
• No Load Current Draw: < 0.3A
• Dimensions: 2.6 × 7.7 × 1.6 in.
• DC Cable Length: 31.5 in.
MAINTENANCE
Little maintenance is required to keep your inverter operating properly.
Periodically clean the exterior of the unit with a damp cloth to prevent
accumulation of dust and dirt.
Page 4
Smart AC® Power Strip™ by Wagan Tech
®
OPERATION
The 12 volt supply must provide between 10 volts to 14.5 volts DC. Do not
connect the inverter's AC output to another AC power source; damage will result,
voiding the inverter’s warranty.
1.
e sure the inverter is not plugged in the vehicle DC socket prior to
Mak
starting the engine.
Che
2.
ck the wattage requirements of your mobile devices. Total wattage can
not exceed 120 watts.
Sta
3.
rt your vehicle engine.
4.
ert the DC plug into the vehicle's DC accessory socket (cigarette lighter
Ins
socket).
Con
5.
nect AC plug or USB connector to the inverter.
Tur
6.
n on the power switch on.
Tur
7.
n on your mobile device.
The b
8.
lue LED will light up to confirm that AC output is present.
Aft
9.
er use, turn off the inverter and disconnect the plug from the
accessory socket.
TROUBLESHOOTING
If the inverter does not appear to be functioning, check the following possible
causes:
DC rec
•
•
•
•
eptacle has no power: Check fuse in lighter socket circuit and replace
any blown fuse with same type and rating.
Bat
tery voltage is too low: Start the engine or recharge the battery.
Inv
erter suddenly stops working: Check the charge on the battery and make
sure the devices connected to the inverter do not exceed the 120W rating.
The
rmal overload: Under heavy loads, for extended periods of time, the
inverter will shut down to prevent damage from excess heat. Reduce the load
and allow the inverter to cool before restarting the inverter.
Page 5
WAGAN Corp. Limited Warranty
The WAGAN Corporation warranty is limited to products sold only in
the United States.
Warranty Duration:
Product is warranted to the original purchaser for a period of one (1) year from the
original purchase date, to be free of defects in material and workmanship. WAGAN
Corporation disclaims any liability for consequential damages. In no event will
WAGAN Corporation be responsible for any amount of damages beyond the amount
paid for the product at retail.
Warranty Performance:
During the warranty period, a product with a defect will be replaced with a
comparable model when the product is returned to WAGAN Corporation with an
original store receipt. WAGAN Corporation will, at its discretion, replace or repair
the defective part. The replacement product will be warranted for the balance of the
original warranty period. This warranty does not extend to any units which have been
used in violation of written instructions furnished.
Warranty Disclaimers:
This warrant y is in lieu of all warranties expressed or implied and no representative
or person is authorized to assume any other liability in connection with the sale of our
products. There shall be no claims for defects or failure of performance or product
failure under any theory of tort, contract or commercial law including,but not limited
to negligence, gross negligence, strict liability, breach of warranty, and breach of
contract.
Returns:
WAGAN Corporation is not responsible for any item(s) returned without an official
Return Authorization number (RA#). Please contact our customer service team by
phone or email to obtain an RA#. You can also visit our website and chat with our team
during our normal business hours. For more details and instructions on how to process
a warranty claim, please read the “Returns” section under the “Contact” page on our
website. WAGAN Corporation is not responsible for any shipping charges incurred in
returning the item(s) back to the company for repair or replacement.
