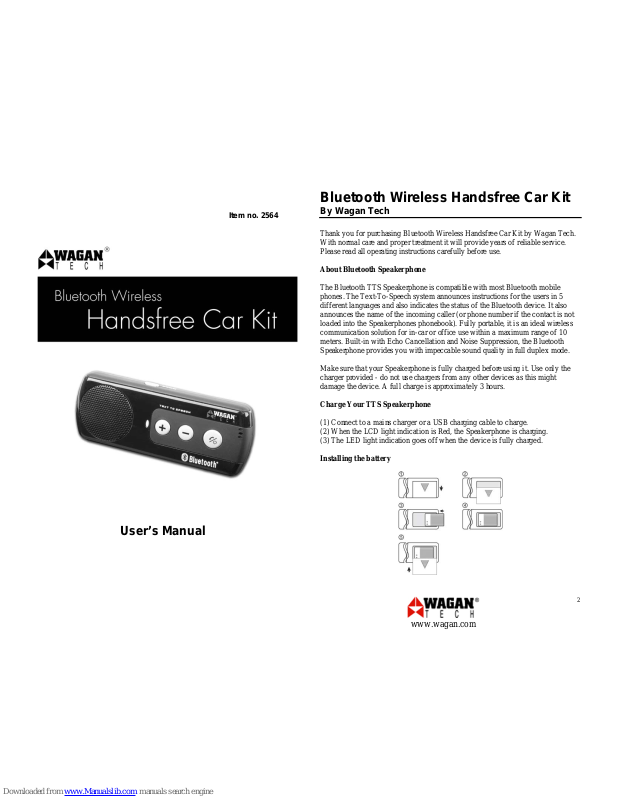

Bluetooth Wireless Handsfree Car Kit
By Wagan Tech
www.wagan.com
2
Item no. 2564
Thank you for purchasing Bluetooth Wireless Handsfree Car Kit by Wagan Tech.
With normal care and proper treatment it will provide years of reliable service.
Please read all operating instructions carefully before use.
About Bluetooth Speakerphone
The Bluetooth TTS Speakerphone is compatible with most Bluetooth mobile
phones. The Text-To-Speech system announces instructions for the users in 5
different languages and also indicates the status of the Bluetooth device. It also
announces the name of the incoming caller (or phone number if the contact is not
loaded into the Speakerphones phonebook). Fully portable, it is an ideal wireless
communication solution for in-car or office use within a maximum range of 10
meters. Built-in with Echo Cancellation and Noise Suppression, the Bluetooth
Speakerphone provides you with impeccable sound quality in full duplex mode.
Make sure that your Speakerphone is fully charged before using it. Use only the
charger provided - do not use chargers from any other devices as this might
damage the device. A full charge is approximately 3 hours.
Charge Your TTS Speakerphone
(1) Connect to a mains charger or a USB charging cable to charge.
(2) When the LCD light indication is Red, the Speakerphone is charging.
(3) The LED light indication goes off when the device is fully charged.
Installing the battery
User’s Manual
Bluetooth Wireless Handsfree Car Kit
By Wagan Tech
www.wagan.com
4
USER’S MANUAL — Please read before using this equipment.
© 2008 Wagan Corporation.
All Rights Reserved.
Wagan and Wagan.com are trademarks used by Wagan Corporation.
3
Installation on the sun visor
Appearance and Function
(1) Speaker
(2) Microphone
(3) LED
(4) Charging Socket (5-pin USB)
Pairing
(5) Mode Button (Privacy handset & Mute)
(6) MFB Button (Multi-Function Button)
Pairing With Bluetooth Mobile Phone
(7) Volume Increase (V+)
Pairing is the process of connecting your Speakerphone with your mobile phone.
Before using the Speakerphone with your mobile phone, you must pair both
devices. If you wish to use your Speakerphone with a different mobile phone, you
must reinitiate the pairing process with your intended Bluetooth mobile phone.
(8) Volume Decrease (V-)
Powering Up
(1) To turn ON the Speakerphone Press and hold the "MFB" button for four
seconds and the flashing blue LED light indicator comes on ("Power On" is
announced).
Pairing Speakerphone to Mobile Phone
1. Ensure that Speakerphone is turned off, switch to pairing mode by holding onto
the "MFB" button till both Blue/Red LED lights appear ("Pairing phone please put
your phone in pairing mode and enter PIN code 0000" is announced).
Note: Do not hold the button down for more than 8 seconds when turning the
Speakerphone on or else it may switch to its pairing mode. If this happens, turn off
the Speakerphone and repeat the process for turning the Speakerphone o n.
2. The LED lights will blink simultaneously in pairing mode.
3. Turn on the mobile phone and place it within 10 meters to the Speakerphone.
4. Initiates the mobile discovery feature on your mobile phone. Refer to your
mobile phones user guide.
(2) To Turn OFF the Speakerphone Press and hold the "MFB" button until the
LED light indication goes off ("Power Off" is announced).
5. Enter the default pin code "0000”, when prompted by your mobile phone system
for pin code.
6. The blue LED blinks at a regular interval when both devices are successfully
paired ("Pairing Successful" is announced).
