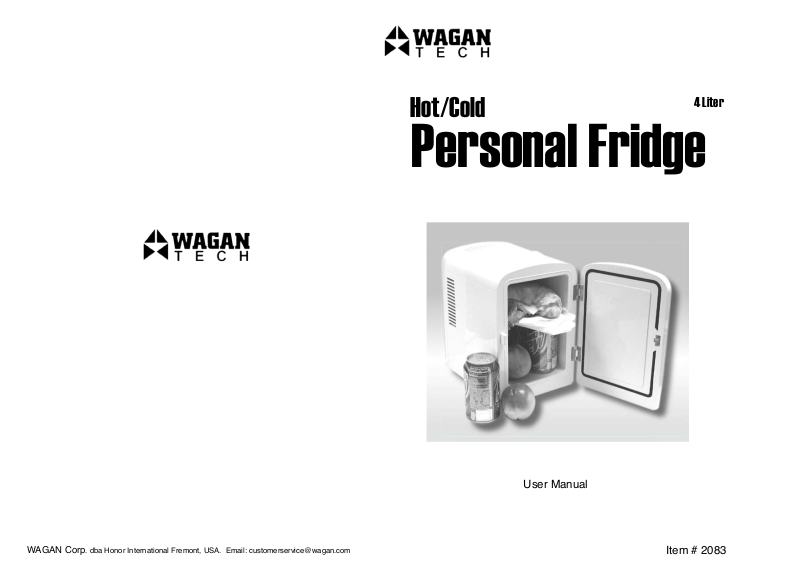

Wagan 2083 User Manual

4 Liter

Hot/Cold

Personal Fridge

WAGAN Corp. dba Honor International Fremont, USA. Email: [e-mail]

User Manual

Item # 2083

The Hot/Cold Personal Fridge may be small in size, but it packs a

Warming

mighty cool stuff. This personal fridge can hold an entire 6-pack of

your favorite beverage. Great for keeping sandwiches, fruits, snacks,

bottled water and juices nice and cold and right at your fingertips.

With this personal fridge, traveling with a baby has never been easier

- holds bottles, fresh food and even medicines. For professional pho-

tographer keep photo films in cool condition.

Specification

Application: 12V
Power Input: Cold (48W) / Hot (36W)
Capacity: 4 Liters
Cooling: 36 F (1 C)
Heating: 154 F (68 C)
System: Non-wearing thermoelectric
(plater system), cold/heat diffusion by coated aluminum container inside, heat
dispersion outside by fan (long life brush-less motor).
Power Cord: 8 ft.
Weight : 5 lbs
Measurement: 9.875” (L) x 7.25” (w) x 11” (h)

The Hot setting is designed to keep food warm, not to warm, or not to warm up
cold food. It will warm cold food, providing it has sufficient time to do so. When
the door is properly closed, hot meals stay warm even.

Outdoor Use

Keep fridge out of direct sunlight if used outdoors. The temperature around the
unit does affect its performance.

Cleaning

Use a damp cloth and mild soap to clean the unit. Avoid harsh cleaning agents
and solvents. When storing the unit for long periods of time, make sure the inte­rior is dry and well ventilated; leave door partially open.

Temperature control and automatic shut-off

Cooler: The unit will cool between 40-45 F (20 ~ 25 C) below room temperature.

At about 34 F (1 C) it shuts off to avoid freezing the contents. It will automatically
restart when the temperature reaches 38.8 F (4 C).
Warmer: Unit heats to a maximum internal temperature of about 150 F (68 C).
At the maximum temperature, it will automatically shut off. Warming will automati­cally restart at 149 F (65 C)

Cooling

This unit can get cold fast. For quick maximum cooling, fill your
fridge with pre-chilled items. The polyurethane-foam lining (without
CFC) will maintain cool temperature for a while even after the unit is
turned off.

Troubleshooting

Q: The unit is not functioning and the fan wheel (visible from the outside) is
not turning.
A:Your vehicle’s ignition might have to be on to power the outlet.

Q: The unit is getting power, but does not cool satisfactory and the fan is not
turning.
A: The fan motor may be defective. Repairs should only be attempted by a
certified technician.

Q: Unit is getting power, but does not cool satisfactory and the fan is turning.
A: The Peltier unit may be defective. Repairs should only be attempted by a
certified technician.
