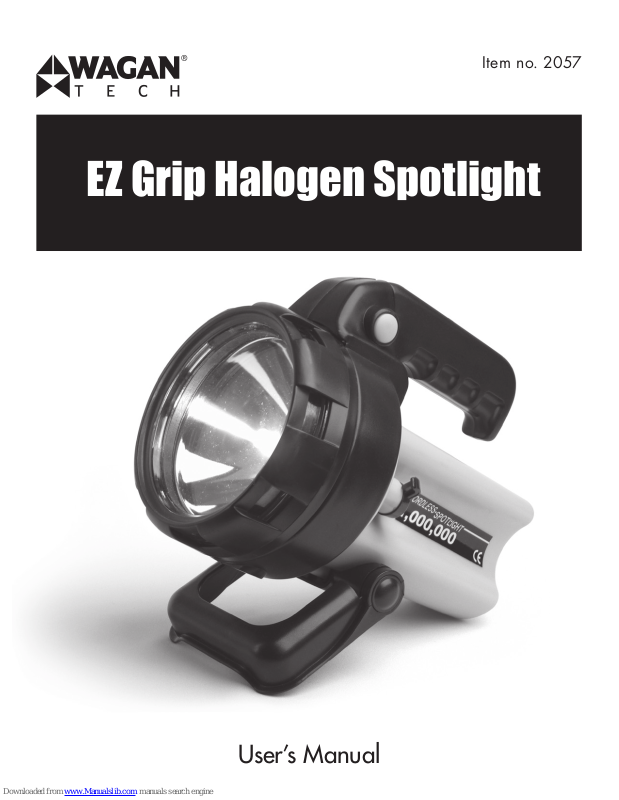

Page 1
Item no. 2057
EZ Grip Halogen Spotlight
User’s Manual
Page 2
Household 110V AC
Power Adapter
Power Adapter
EZ Grip Halogen Spotlight by Wagan Tech
Product Diagram
Carrrying Handle
Power Switch
55 Watt Halogen Bulb
Handle Rotation Lock
Power Input Socket
6V Ah Sealed
Lead-acid Battery
Rotating Pistol-type Grip
2
12V DC Car
Swiveling Handle Doubles As a Stand
Page 3
User’s Manual—Please read before using this equipment
Thank you for purchasing the EZ Grip Halogen Spotlight by Wagan Tech.
With normal care and proper treatment it will provide years of reliable service.
Please read all operating instructions carefully before use.
Features
• Adjustable handle can be used as a stand for hands free operation
• Pistol-type grip handle with locking switch for convenient carrying or
holding positions
• 55 Watt halogen bulb with large 5 inch diameter reflector
• Runs up to 25 minutes on a full charge
• Light can be seen up to one mile away
• Rechargeable 6V 4Ah sealed lead-acid battery
Caution
• Keep out of reach of children.
• Do not use in wet conditions.
• Store in a clean, dry environment.
• Do not charge the unit continuously for longer than 24 hours.
• Do not use if the unit is damaged in any way.
• Never short the terminals of the internal battery while charging.
• The lens will become hot after prolonged use.
• Do not attempt to disassemble the battery or remove any parts from the
battery terminals.
• Before disposal, protect exposed terminals.
• Never look directly into the light.
© 2015 Wagan Corporation. All Rights Reserved.
Wagan and wagan.com are trademarks used by Wagan Corporation.
3
Page 4
EZ Grip Halogen Spotlight by Wagan Tech
Operation
• Use the power switch to turn on the light.
• To use the pistol grip, twist the pistol grip into position while pushing in
the handle rotation lock.
Charging the Battery
• The internal battery will need to be initially charged for approximately 2
hours before first use.
• To charge using the 110V AC power adapter, plug the adapter into a
standard compatible wall socket. Attach the other end to the power
input socket of the spotlight.
• To charge using the DC adapter, insert the cigarette plug into the car’s
cigarette lighter socket. Attach the other end to the power input socket of
the spotlight.
• Only recharge the battery with the included adapters.
• Avoid charging the battery at temperatures below 4 ºC or above 40 ºC.
• The spotlight should be kept fully charged when not in use. If the
spotlight is to be stored away then it should be recharged every 6–8
weeks. Always ensure the power switch is in the OFF position when not
in use.
• If the charge is very low the battery will take approximately 6–8 hours
to reach maximum capacity when using the supplied adapter. However,
a 4 hour charge will provide a usable amount of charge.
• It is advisable to recharge the spotlight after each use.
• The battery does not need to be fully depleted before recharging.
• The lifespan of the battery is dependent on how well it is treated; the
more it is used the longer it should last. It is not possible to predict how
long the battery will last, but approximately 40 charge and discharge
cycles should be expected from a well maintained battery.
4
Page 5
User’s Manual—Please read before using this equipment
Replacing the Halogen Bulb
• Unscrew the retaining ring around the lens.
• Remove the lens.
• Pull out the reflective lens cone, enabling access to the bulb.
• Disconnect the spade connector.
• Unclip the spring clip
• Pull out the bulb (IMPORTANT: Do not touch the glass of the bulb, handle
by the base only)
• If necessary, clean glass with methylated spirits and a soft cloth.
Battery Replacement & Removal
• The lead-acid battery in this spotlight has a normal service life of many
years. When the battery does expire, it should be removed from the
spotlight for recycling. Please contact your local solid waste authority for
recycling information.
• To access the battery, unscrew the retaining ring around the lens.
• Underneath is a bracing plate with four corner screws. Remove these
screws.
• Remove battery and switch assembly from flashlight housing.
• Slide back plastic protectors from battery terminals.
• Use the screwdriver to depress the tabs on the battery terminals. The
wires are reattachable.
Specifications
• Dimensions: 7 x 6 x 8.75 in
• Net Weight: 4 lbs.
© 2015 Wagan Corporation. All Rights Reserved.
Wagan and wagan.com are trademarks used by Wagan Corporation.
5
Page 6
WAGAN Corp. Limited Warranty
All WAGAN Corporation products are warranted to the original purchaser of
this product.
Warranty Duration: This product is warranted to the original purchaser for a
period of one (1) Year from the original purchase date, to be free of defects in
material and workmanship. WAGAN Corporation disclaims any liability for
consequential damages. In no event will WAGAN Corporation be responsible
for any amount of damages beyond the amount paid for the product at retail. In
the event of a defective item, please contact WAGAN Corporation at (800) 2315806 to obtain a Returned Merchandise Authorization number (RMA#), and return
instructions. Each item returned will require a separate RMA#. After you have
received the RMA# and the return instructions from WAGAN Corporation, please
follow the instructions and send the item with PREPAID SHIPPING, along with all of
the required documentation, a complete explanation of the problem, your name,
address and daytime phone number. WAGAN Corporation will, at its option,
replace or repair the defective part.
A Returned Merchandise Authorization number (RMA#) is REQUIRED when
sending in any defective item. WAGAN Corporation is not responsible for any
item(s) returned without an official Returned Merchandise Authorization number.
The item(s) must be returned with prepaid shipping. WAGAN Corporation is not
responsible for any shipping charges incurred in returning the item(s) back to the
company for repair or replacement. This warranty is void if the product has been
damaged by accident, in shipment, unreasonable use, misuse, neglect, improper
service, commercial use, repairs by unauthorized personnel or other causes not
arising out of defects in materials or workmanship. This warranty is effective only
if the product is purchased and operated in the USA and does not extend to any
units which have been used in violation of written instructions furnished.
Warranty Disclaimers: This warranty is in lieu of all warranties expressed or
implied and no representative or person is authorized to assume any other liability
in connection with the sale of our products. There shall be no claims for defects
or failure of performance or product failure under any theory of tort, contract or
commercial law including, but not limited to negligence, gross negligence, strict
liability, breach of warranty and breach of contract.
Detach and return left portion to the address above.
Warranty Performance: During the above one (1) Year warranty period, a product
with a defect will be replaced with a comparable model when the product is
returned to WAGAN Corporation with an original store receipt. The replacement
product will be in warranty for the balance of the one (1) Year warranty period.
©2008 WAGAN Corp. Updated August 2008
Page 7
Attn: Customer Service
WAGAN Corporation
31088 San Clemente St.
Hayward, CA 94544
U.S.A.
Please activate my limited warranty for WAGAN Corp.
Name
Mailing Address
City
State, Zip code
E-mail Address
Item Purchased Item No.
Store Name
Date of Purchase
Signature Date
All WAGAN Corporation Products must be registered
within (30) days of purchase to activate this warranty.
Mail the complete registration form, along with a copy of
the original sales receipt to:
Page 8
www.wagan.com
USA & CAN Toll Free: 1.800.231.5806
Tel: 1.510.471.9221
31088 San Clemente Street
Hayward, CA 94544
U.S.A.
©2015 Wagan Corporation. All Rights Reserved
Wagan Tech and wagan.com are trademarks used by Wagan Corporation
r e v20150226
