Page 1

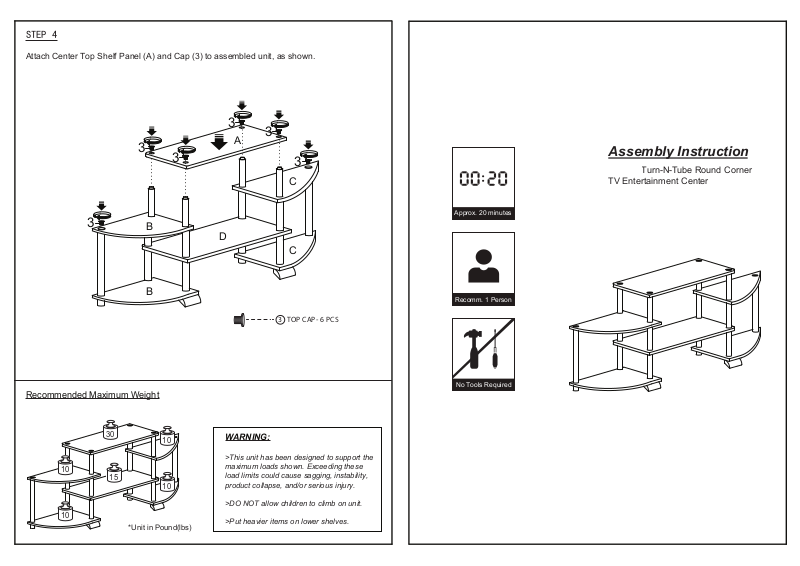

STEP 4
Attach Center Top Shelf Panel (A) and Cap (3) to assembled unit, as shown.
3
3
Recommended Maximum Weight
B
B
3
A
3
3
3
C
Approx. 20 minutes
D
C
Recomm. 1 Person
3 TOP CAP - 6 PCS
No Tools Required
Assembly Instruction
Turn-N-Tube Round Corner
TV Entertainment Center
10
10
30
15
*Unit in Pound(lbs)
10
10
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
Page 2
No Hardware List Qty No QtyParts List
1
2
3
Long Pole
Short Pole
Top Cap
2pcs
12pcs
6pcs
A 1pc
Center Top Shelf Panel
Left Side Panel
B
Right Side Panel
C
2pcs
2pcs
STEP 1
Attach Long Pole (1), Short Pole (2), Round Leg (5) and Front Feet (4) to L/R Side Panel (B/C),
as shown.
1
4
5
Front Feet
Round Leg
1
Center Bottom Shelf Panel
2pcs
4pcs
D 1pc
2
1
2
2
2
C
5
5
B
5
3
5
4
A
C
B
D
C
2
STEP 2
Attach Center Bottom Shelf Panel (D) and
Short Pole (2) to assembled unit in Step 1,
as shown.
B
5
4
2
2
1 LONG POLE - 2 PCS
2 SHORT POLE - 4 PCS
2
2
D
STEP 3
Attach L/R Side Panel (B/C) & Short Pole (2)
to assembled unit in Step (2), as shown.
4
4 FRONT FEET - 2 PCS
5 ROUND LEG - 4 PCS
2
2
2
2
B
C
USEFUL HINTS BEFORE YOU START:
1. Read each step carefully before starting.
2. It is important that each step is performed in correct order to avoid difficulties.
3. Identify, sort and count the parts before assembly.
4. Assemble your furniture on packaging cardboard to prevent scratch or damage.
5. Clean the product with mild cleanser using soft damped cloth. Do not use harsh or abrasive cleanser.
6. Using uncompatible hardware might cause damage to product.
B
2 SHORT POLE - 4 PCS
C
B
D
2
SHORT POLE - 4 PCS
C
